TOYOTA HARRIER HV MHU38W-AWXGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ,ｼｰﾄ & ﾗｯｹﾞｰｼﾞ ILLUST NO. 7 OF 7(0503- )

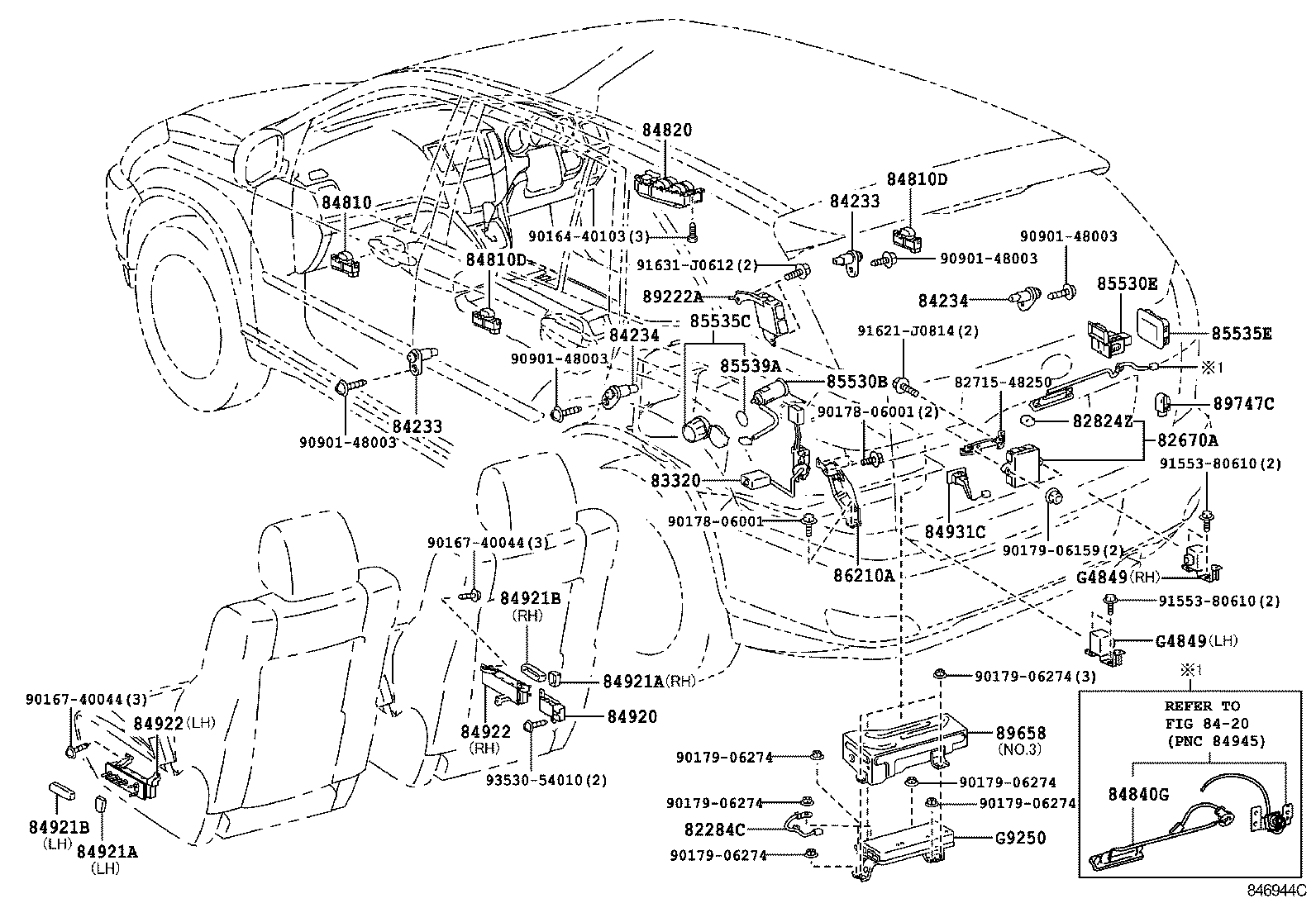

HARRIER HV | SWITCH RELAY COMPUTER 82284C - WIRE, EARTH 82670A - BLOCK ASSY, JUNCTION, NO.1 ** Std Part 82824Z - PIN, SHORT 83320 - GAGE ASSY, FUEL SENDER ** Refer Fig 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR 84840G - SWITCH ASSY, BACK DOOR OPENER 84920 - SWITCH ASSY, POWER SEAT 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 84922 - SWITCH, FRONT POWER SEAT 84922 - SWITCH, FRONT POWER SEAT 84931C - SWITCH, BACK DOOR CONTROL 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535C - COVER, POWER OUTLET SOCKET, REAR 85535E - COVER, POWER OUTLET SOCKET, NO.2 85539A - LABEL, POWER OUTLET NOTICE, REAR 86210A - INVERTER ASSY, VOLTAGE 89222A - COMPUTER, MULTIPLEX NETWORK DOOR 89658 - BRACKET, POWER STEERING COMPUTER 89747C - BUZZER, POWER SLIDE BACK DOOR WARNING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G4849 - SENSOR, REAR CIRCUIT BREAKER G4849 - SENSOR, REAR CIRCUIT BREAKER G9250 - CONVERTER ASSY, POWER STEERING
