TOYOTA HARRIER HV MHU38W-AWXGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

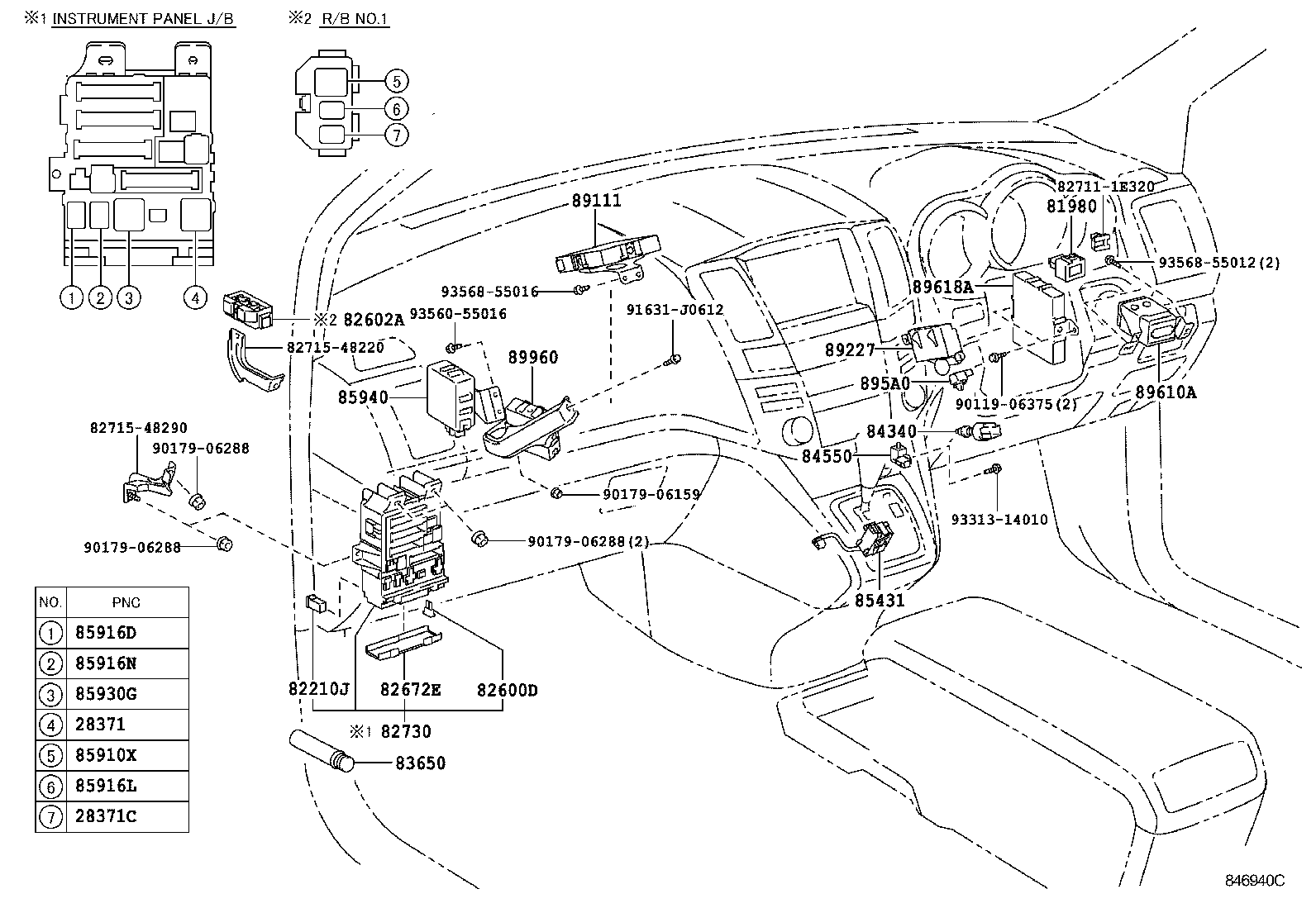

ｶｳﾙ ILLUST NO. 3 OF 7(0503- )

HARRIER HV | SWITCH RELAY COMPUTER 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82600D - INSTRUMENT PANEL FUSE 82602A - BLOCK SUB-ASSY, RELAY 82672E - COVER, JUNCTION BLOCK ** Std Part ** Std Part ** Std Part 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 85431 - SOLENOID, SHIFT LOCK 85910X - RELAY, HEATER MIRROR 85916D - RELAY, FOG LAMP 85916L - RELAY, REAR FOG LAMP 85916N - RELAY, TAIL LAMP 85930G - RELAY, ACC 85940 - RELAY ASSY, WINDSHIELD WIPER 89111 - COMPUTER, NETWORK GATEWAY 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC 895A0 - RELAY ASSY, STOP LAMP CONTROL 89610A - HOLDER ASSY, ELECTRICAL KEY 89618A - COMPUTER, POWER SOURCE CONTROL 89960 - COMPUTER ASSY, HEADLAMP LEVELING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
