TOYOTA HARRIER HV MHU38W-AWXGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

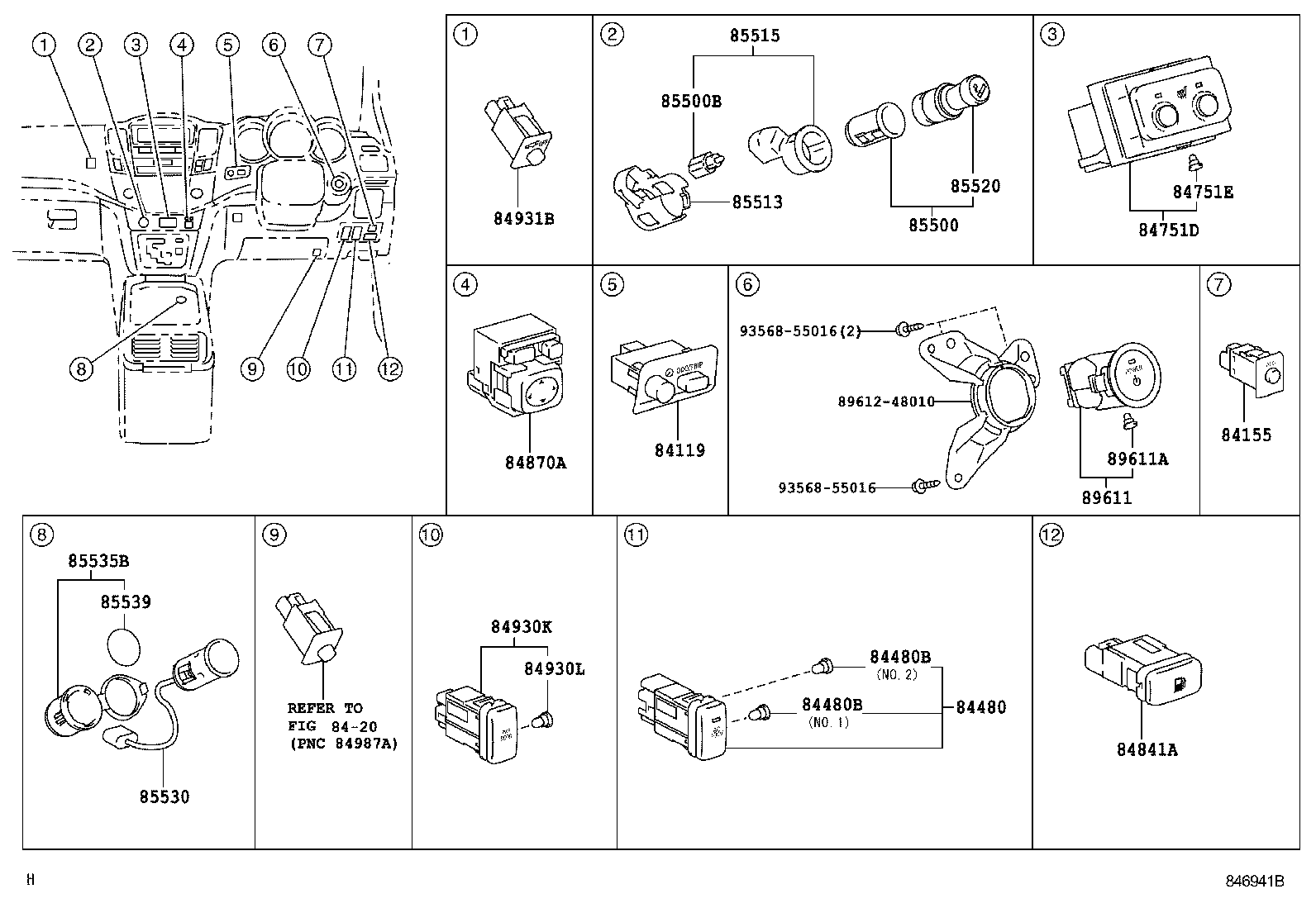

インストルメントパネル1/2 ILLUST NO. 4 OF 7(0503- )

 HARRIER HV |  SWITCH RELAY COMPUTER 84119 - RHEOSTAT, LIGHT CONTROL 84155 - SWITCH, HEADLAMP SWIVEL MAIN ** Refer Fig 84480 - SWITCH ASSY, MAIN 84480B - BULB, MAIN SWITCH ASSY 84480B - BULB, MAIN SWITCH ASSY 84751D - SWITCH, SEAT HEATER(FRONT) 84751E - BULB, SEAT HEATER SWITCH(FRONT) 84841A - SWITCH, FUEL LID OPENER 84870A - SWITCH ASSY, OUTER MIRROR 84930K - SWITCH ASSY, AUTO SLIDE DOOR CONTROL 84930L - BULB, AUTO SLIDE DOOR CONTROL SWITCH 84931B - SWITCH, DOOR CONTROL 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85513 - COVER, CIGARETTE LIGHTER 85515 - STAY, CIGARETTE LIGHTER BEZEL 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85535B - COVER, POWER OUTLET SOCKET, NO.1 85539 - LABEL, POWER OUTLET NOTICE 89611 - SWITCH, PUSH START 89611A - BULB, PUSH START SWITCH  ** Std Part  ** Std Part  ** Std Part
