TOYOTA HARRIER HV MHU38W-AWXGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

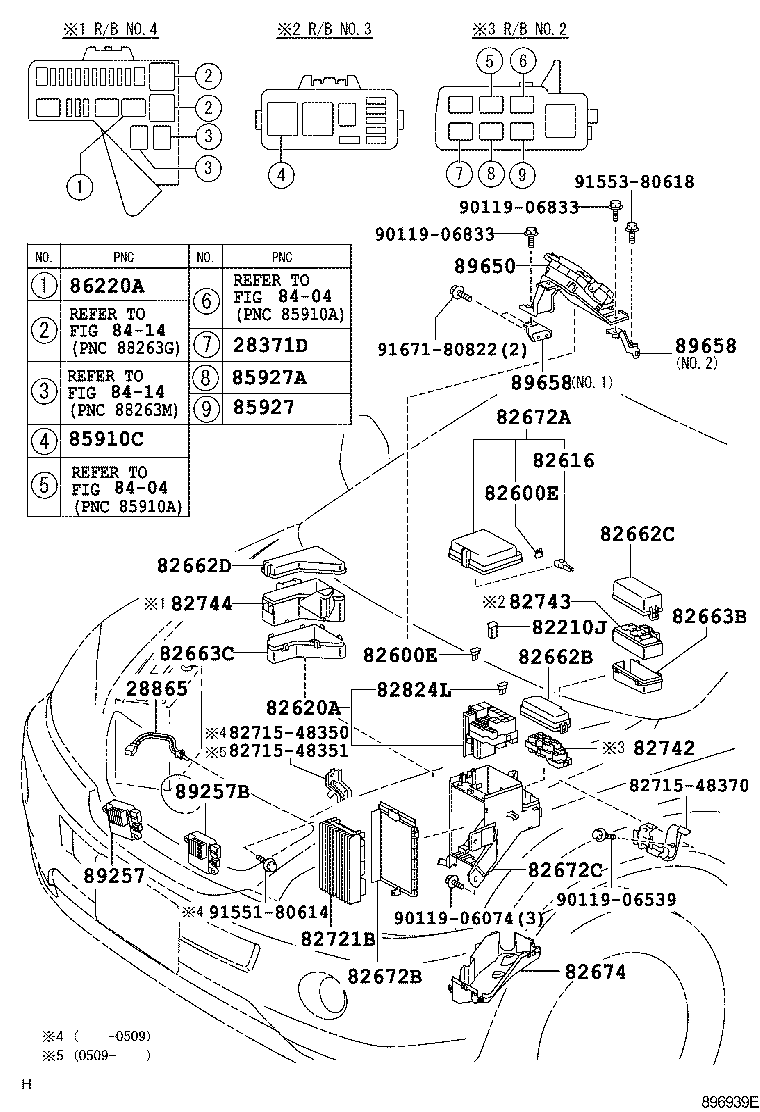

SWITCH RELAY COMPUTER

エンジンルーム ILLUST NO. 2 OF 7(0503- )

 HARRIER HV |  SWITCH RELAY COMPUTER 28371D - RELAY, IGNITION, NO.3 28865 - SENSOR, BATTERY THERMOMETER 82210J - FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82662D - COVER, RELAY BLOCK, UPPER, NO.4 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82663C - COVER, RELAY BLOCK LOWER, NO.4 82672A - COVER, JUNCTION BLOCK 82672B - COVER, JUNCTION BLOCK 82672C - COVER, JUNCTION BLOCK 82674 - COVER, JUNCTION BLOCK LOWER  ** Std Part  ** Std Part  ** Std Part 82721B - BLOCK, ENGINE ROOM JUNCTION 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82744 - BLOCK, ENGINE ROOM RELAY, NO.4 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 86220A - RELAY, INVERTER 89257 - COMPUTER, COOLING FAN 89257B - COMPUTER, COOLING FAN, NO.2 89650 - COMPUTER ASSY, POWER STEERING 89658 - BRACKET, POWER STEERING COMPUTER 89658 - BRACKET, POWER STEERING COMPUTER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
