TOYOTA ORIGIN JCG17-BEPXF / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

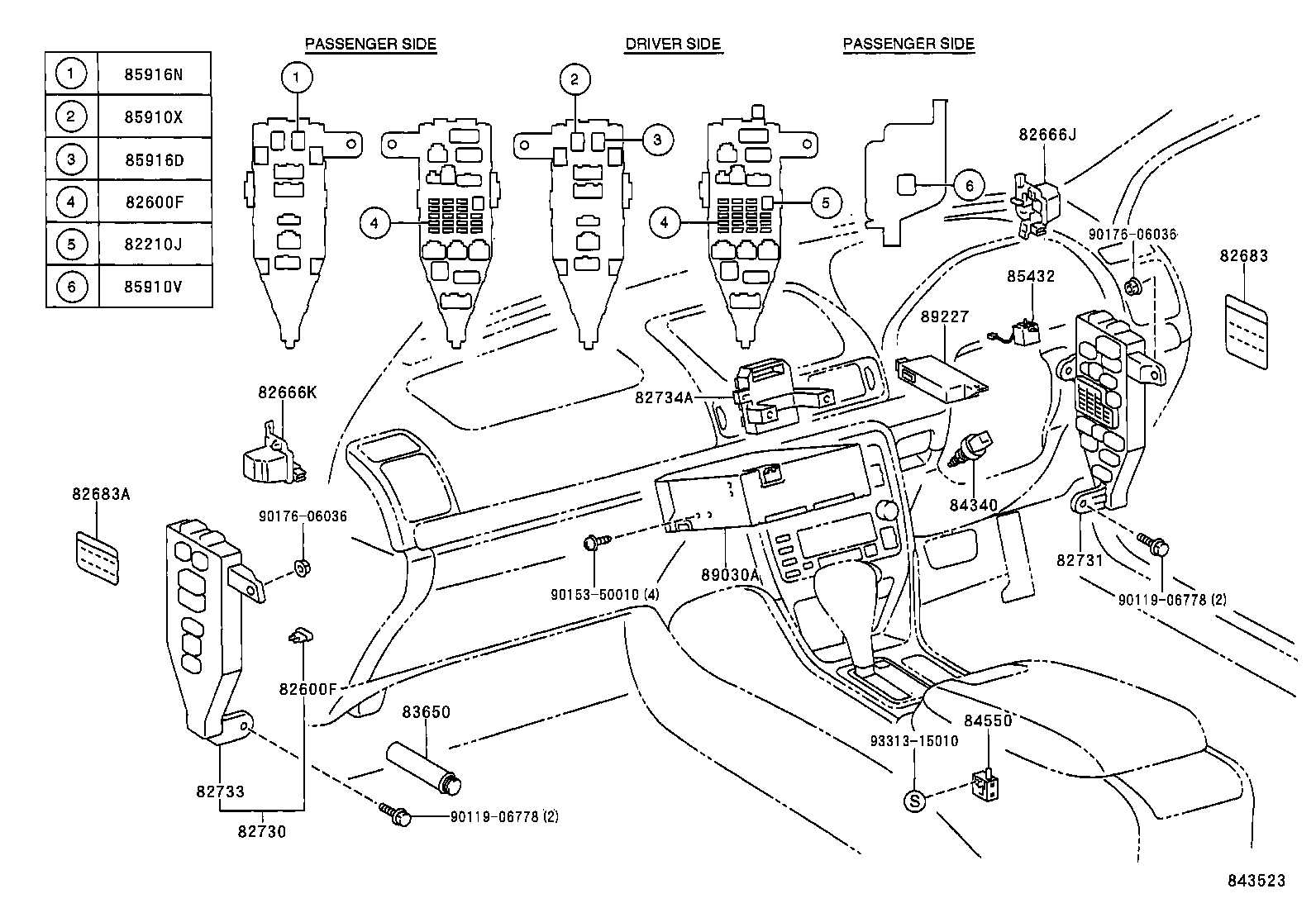

ｶｳﾙ ILLUST NO. 3 OF 6(0008- )

ORIGIN | SWITCH RELAY COMPUTER 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82666J - HOLDER, CONNECTOR, NO.3 82666K - HOLDER, CONNECTOR, NO.4 82683 - PLATE, FUSE BLOCK CAUTION 82683A - PLATE, FUSE BLOCK CAUTION 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82731 - BLOCK, DRIVER SIDE JUNCTION 82733 - BLOCK, PASSENGER SIDE JUNCTION 82734A - BLOCK, CENTER JUNCTION 83650 - FUSEE 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 85432 - SOLENOID, KEY INTER LOCK 85910V - RELAY, SEAT HEATER 85910X - RELAY, HEATER MIRROR 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 89030A - COMPUTER ASSY, INSTRUMENT PANEL INTEGRATION 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
