TOYOTA ORIGIN JCG17-BEPXF / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

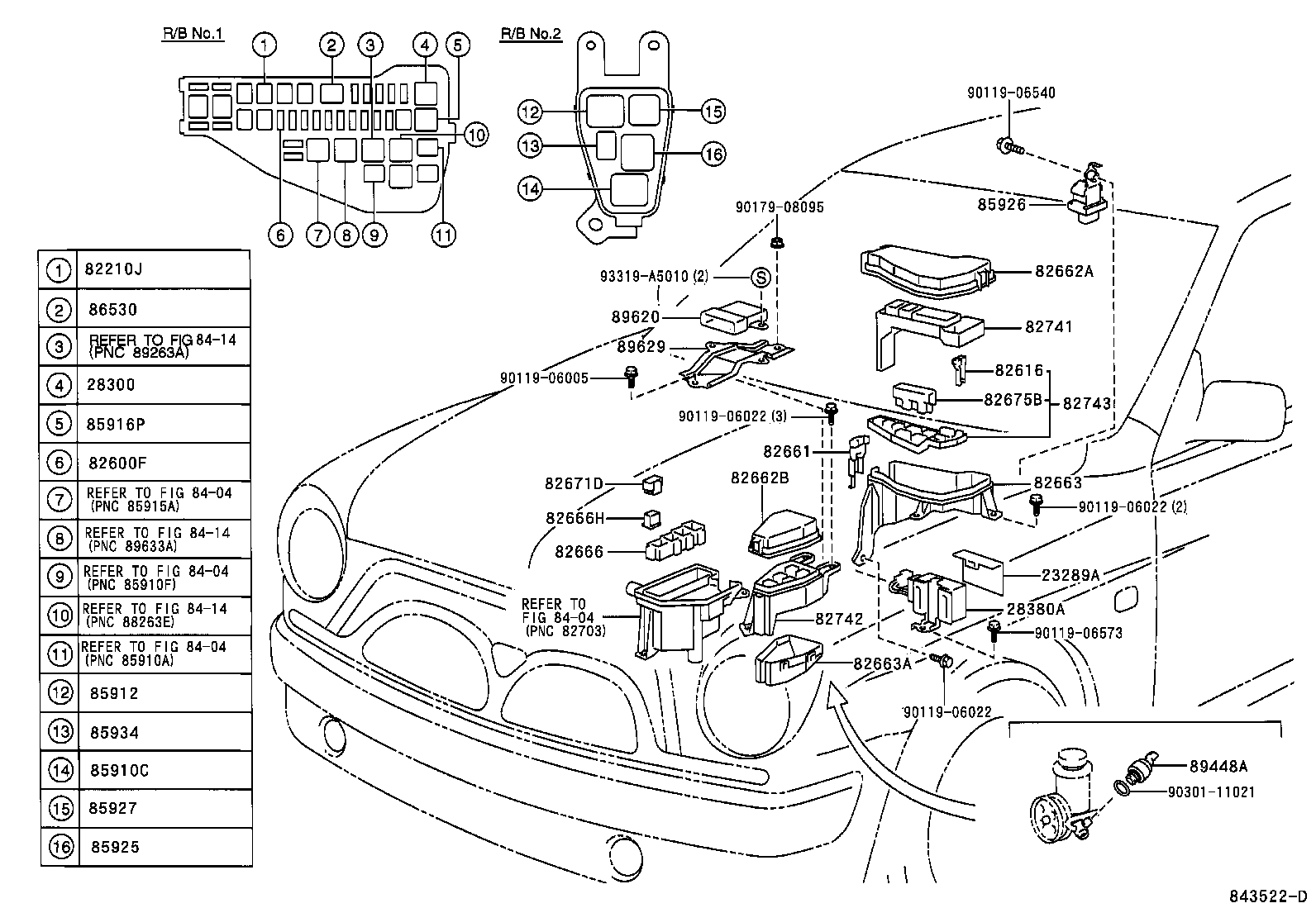

SWITCH RELAY COMPUTER

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 6(0008- )

ORIGIN | SWITCH RELAY COMPUTER 23289A - COVER, FUEL PUMP RESISTOR 28300 - RELAY ASSY, STARTER 28380A - RESISTER, FUEL PUMP 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82666 - HOLDER, CONNECTOR 82666H - HOLDER, CONNECTOR, NO.2 82671D - BLOCK, JUNCTION 82675B - TERMINAL, JUNCTION 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85912 - RELAY, DEFOGGER 85916P - RELAY, HEADLAMP 85925 - RELAY, RADIATOR FAN 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85934 - RELAY, MAGNET-CLUTCH 86530 - RELAY ASSY, HORN 89448A - SENSOR, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
