TOYOTA VITZ SCP13-AHXGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

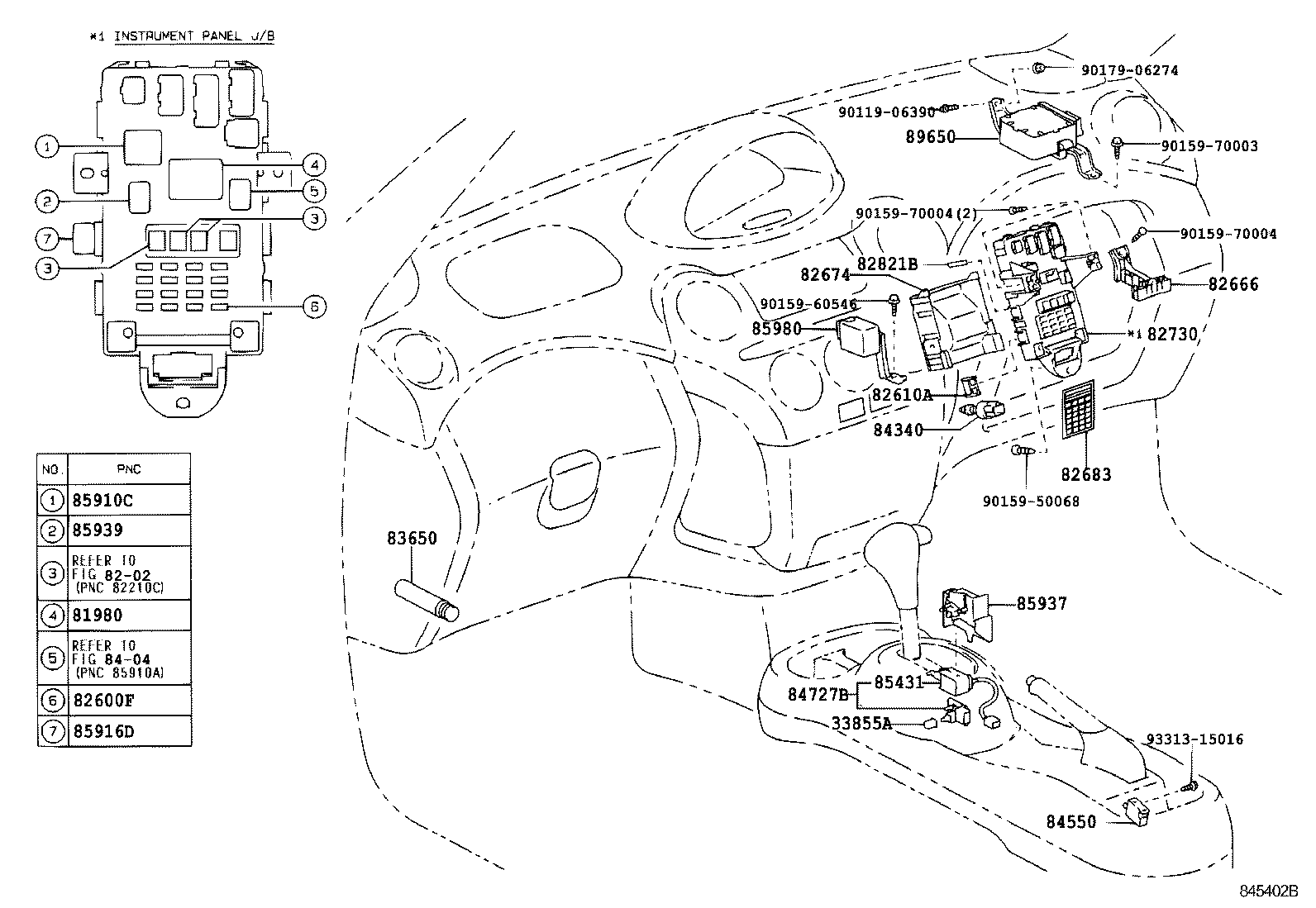

ｶｳﾙ ILLUST NO. 3 OF 6(0212- )SCP13

VITZ | SWITCH RELAY COMPUTER 33855A - COVER, SHIFT LOCK UNIT 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82600F - FUSE, FUSE BLOCK 82610A - BLOCK ASSY, FUSE 82666 - HOLDER, CONNECTOR 82674 - COVER, JUNCTION BLOCK LOWER 82683 - PLATE, FUSE BLOCK CAUTION 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82821B - COVER, CONNECTOR 83650 - FUSEE ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84550 - SWITCH ASSY, PARKING BRAKE 84727B - SWITCH & SOLENOID SET, SHIFT LOCK 85431 - SOLENOID, SHIFT LOCK 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916D - RELAY, FOG LAMP 85937 - PROTECTOR, SHIFT LOCK CONTROL 85939 - RELAY, POWER WINDOW 85980 - RELAY ASSY, DOOR CONTROL 89650 - COMPUTER ASSY, POWER STEERING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
