TOYOTA VITZ SCP13-AHXGK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

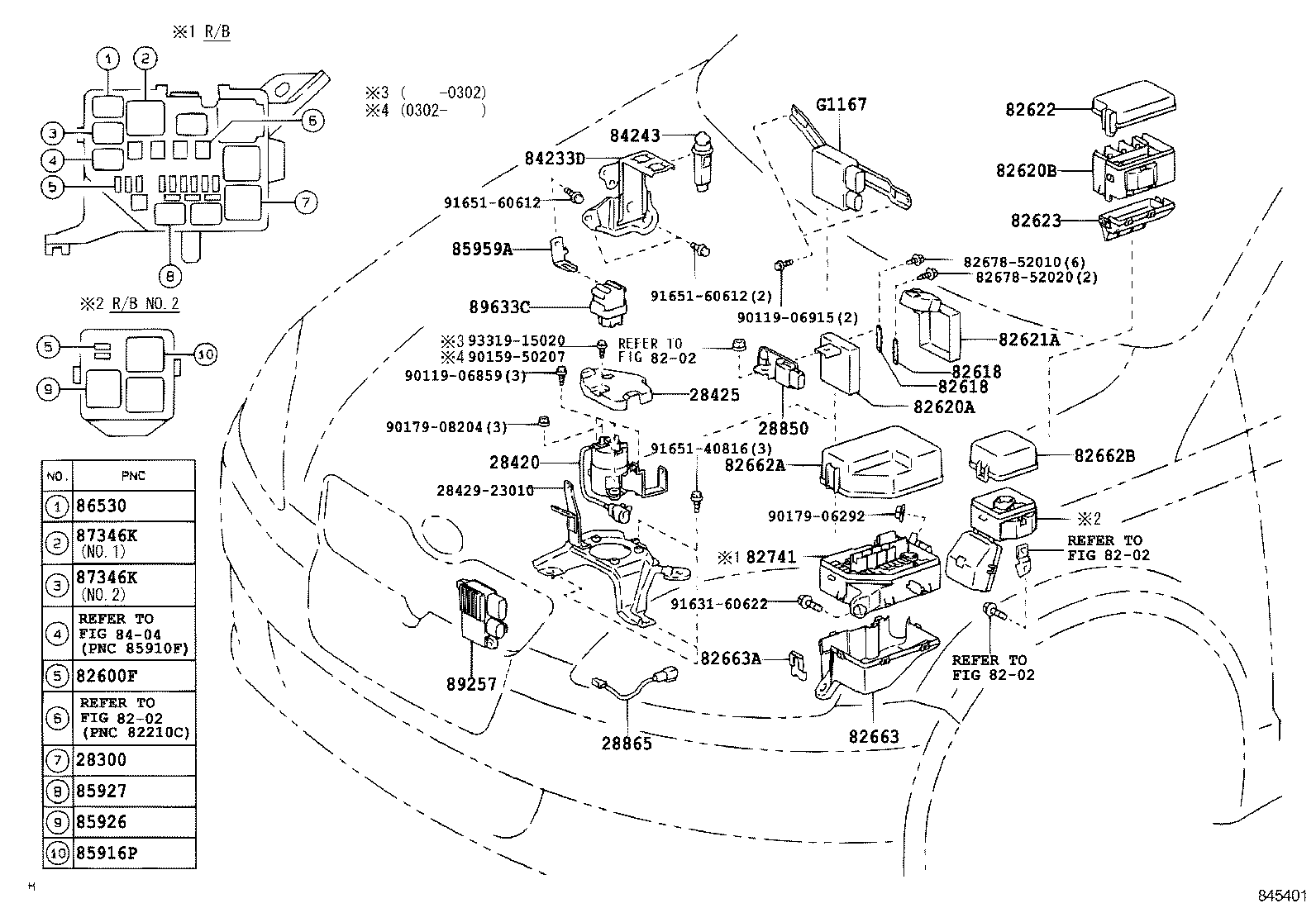

ｴﾝｼﾞﾝﾙ-ﾑ ILLUST NO. 2 OF 6(0212- )SCP13

VITZ | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28420 - RELAY ASSY, VOLTAGE CONVERTER 28425 - COVER, VOLTAGE CONVERTER RELAY ** Std Part 28850 - SENSOR ASSY, BATTERY CURRENT 28865 - SENSOR, BATTERY THERMOMETER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 82600F - FUSE, FUSE BLOCK 82618 - FUSE, FUSE BLOCK 82618 - FUSE, FUSE BLOCK 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82621A - COVER, FUSIBLE LINK 82622 - COVER, FUSIBLE LINK, UPPER 82623 - COVER, FUSIBLE LINK, LOWER 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 ** Std Part ** Std Part 82741 - BLOCK, ENGINE ROOM RELAY ** Refer Fig 84233D - BRACKET, ENGINE HOOD SWITCH 84243 - SWITCH, ENGINE HOOD 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85959A - HOLDER, RELAY 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN 89633C - RELAY, TRACTION CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G1167 - CONTROLLER, OIL PUMP MOTOR
