TOYOTA PRIUS PLUG IN HBD ZVW35R-BHXEBQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

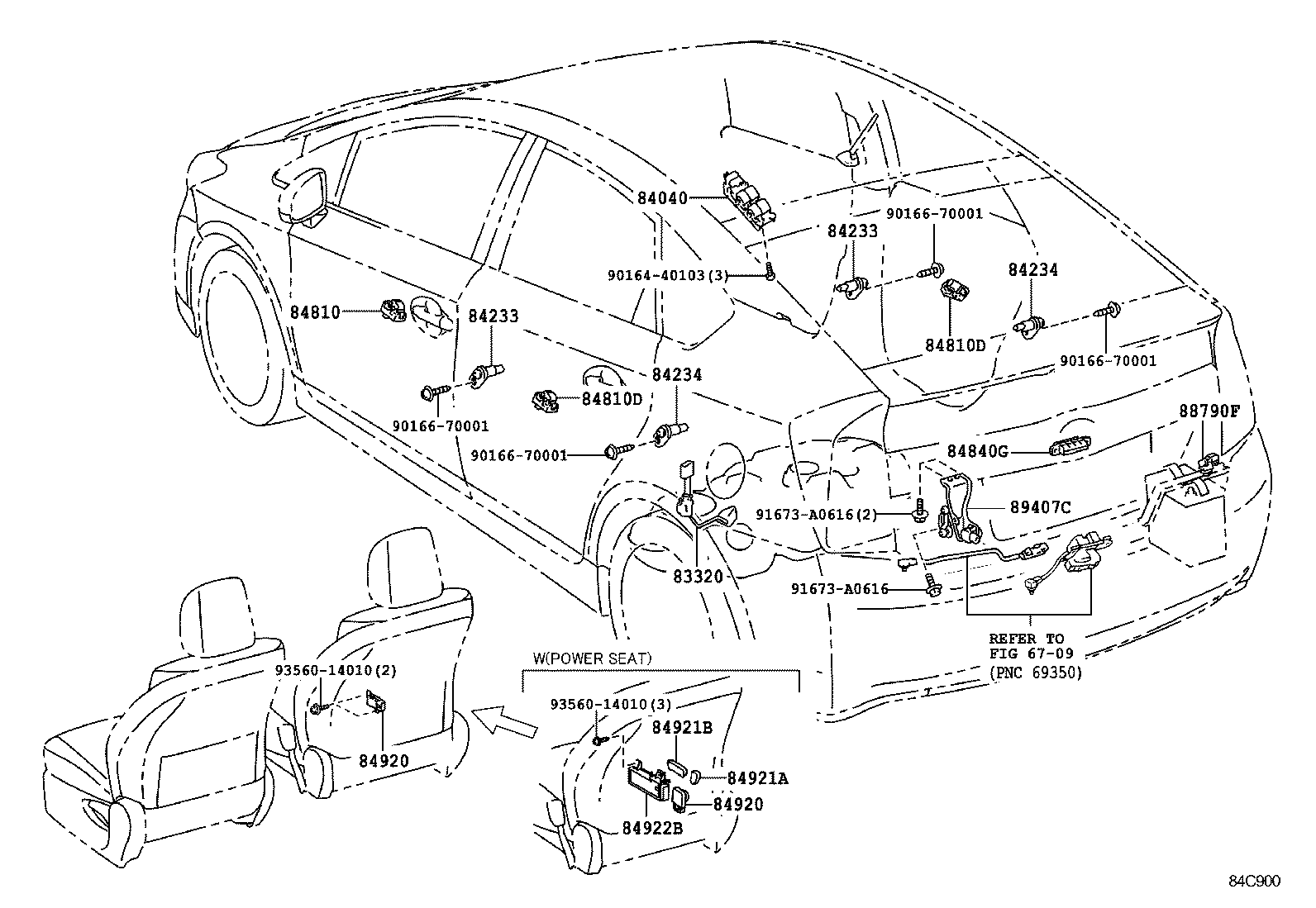

DOOR,ROOF,FLOOR & LUGGAGE ILLUST NO. 6 OF 6(1201- )

PRIUS PLUG IN HBD | SWITCH RELAY COMPUTER ** Refer Fig 83320 - GAGE ASSY, FUEL SENDER 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84840G - SWITCH ASSY, BACK DOOR OPENER 84920 - SWITCH ASSY, POWER SEAT 84920 - SWITCH ASSY, POWER SEAT 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 84922B - SWITCH, FRONT POWER SEAT, RH 88790F - THERMISTOR ASSY 89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
