TOYOTA PRIUS PLUG IN HBD ZVW35R-BHXEBQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

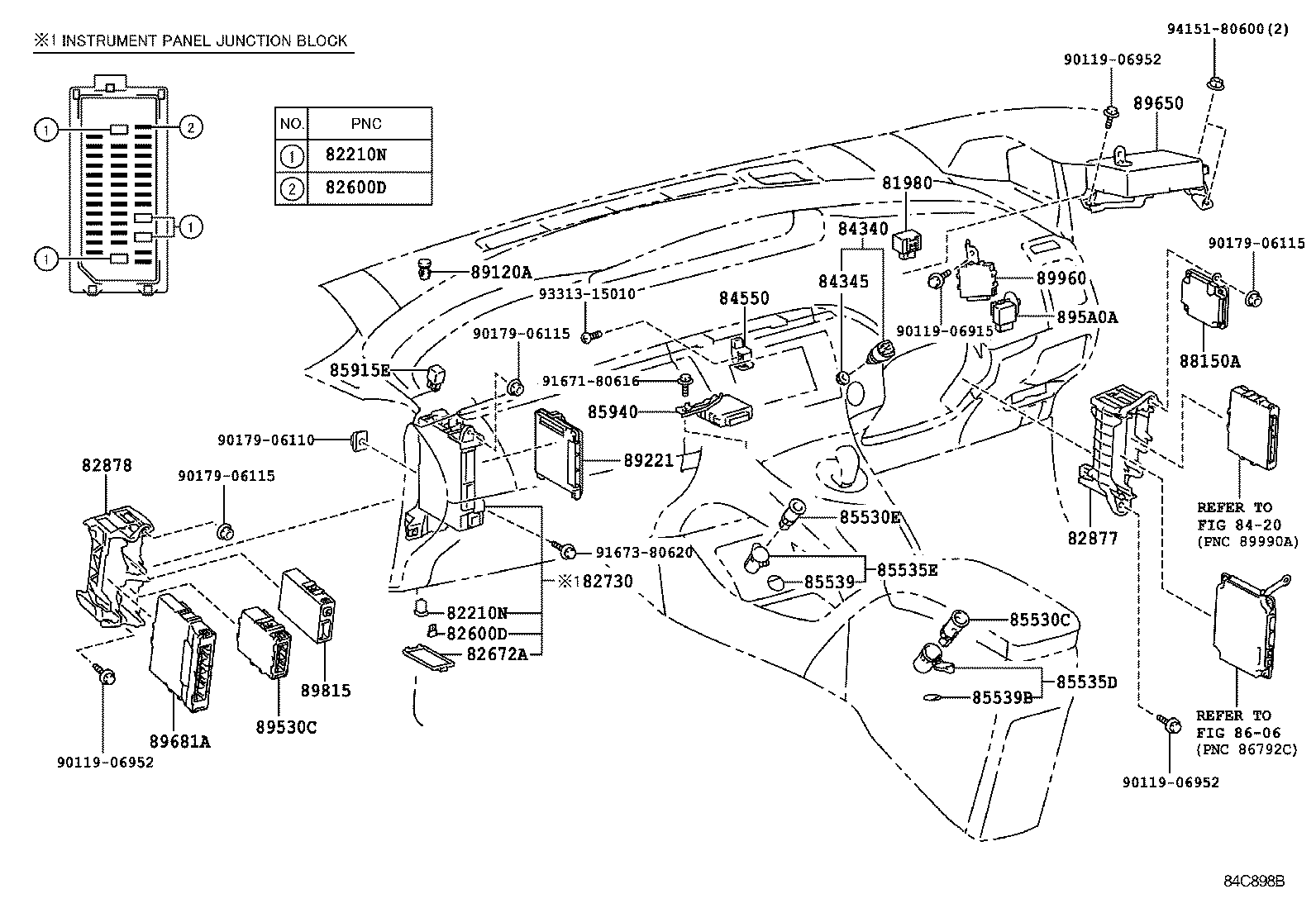

SWITCH RELAY COMPUTER

COWL ILLUST NO. 3 OF 6(1201- )

PRIUS PLUG IN HBD | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL 82210N - INSTRUMENT PANEL FUSIBLE LINK 82210N - INSTRUMENT PANEL FUSIBLE LINK 82600D - INSTRUMENT PANEL FUSE 82600D - INSTRUMENT PANEL FUSE 82672A - COVER, JUNCTION BLOCK 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION 82877 - BOX, COMPUTER INTEGRATION, RH 82878 - BOX, COMPUTER INTEGRATION, LH ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 85530C - SOCKET ASSY, POWER OUTLET, CENTER 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535D - COVER, POWER OUTLET SOCKET, CENTER 85535E - COVER, POWER OUTLET SOCKET, NO.2 85539 - LABEL, POWER OUTLET NOTICE 85539B - LABEL, POWER OUTLET NOTICE, CENTER 85915E - RELAY 85940 - RELAY ASSY, WINDSHIELD WIPER ** Refer Fig 88150A - COMPUTER ASSY, DRIVING SUPPORT 89120A - SENSOR, AUTOMATIC LIGHT CONTROL 89221 - COMPUTER, MULTIPLEX NETWORK BODY 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 895A0A - COMPUTER ASSY, STOP LAMP CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89681A - COMPUTER, POWER MANAGEMENT CONTROL 89815 - COMPUTER, SEAT BELT CONTROL 89960 - COMPUTER ASSY, HEADLAMP LEVELING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
