TOYOTA HIACE RH20LB-JR / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

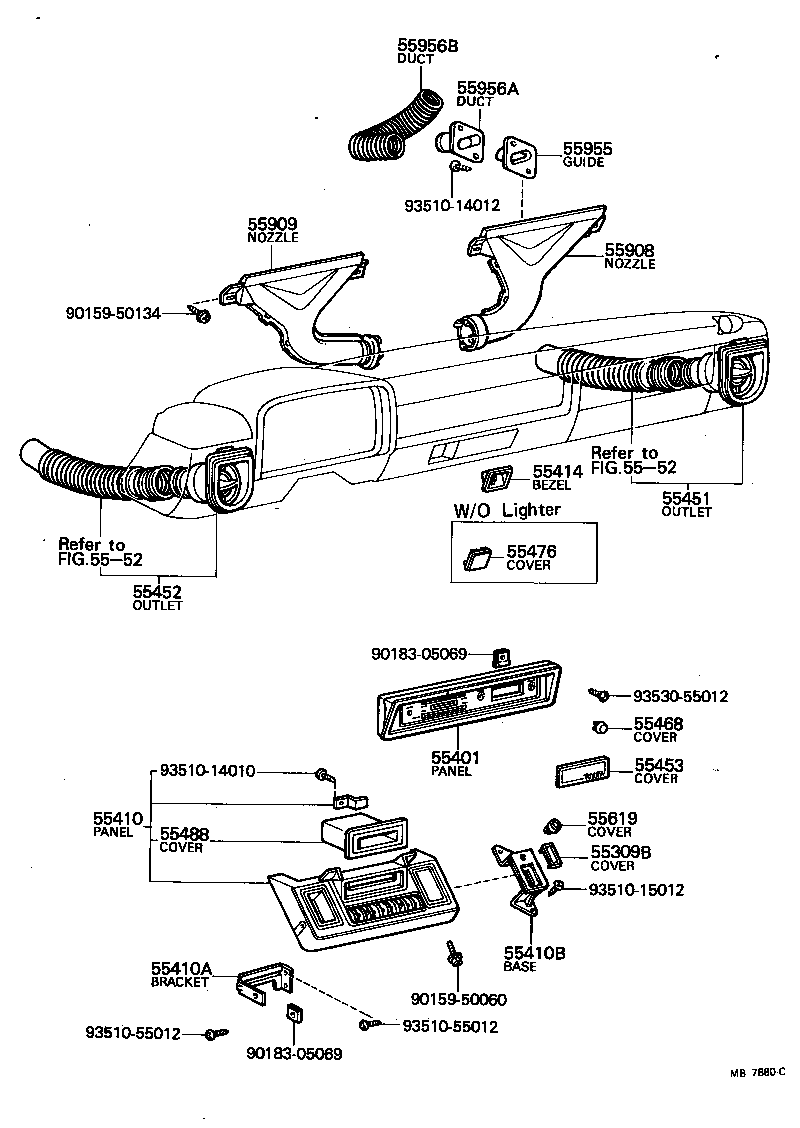

INSTRUMENT PANEL GLOVE COMPARTMENT

(7702-7912)LHD

HIACE | INSTRUMENT PANEL GLOVE COMPARTMENT 55309B - COVER, BASE SWITCH HOLE, NO.2 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 55410B - BASE, SWITCH 55414 - BEZEL, CIGAR LIGHTER HOLE 55451 - OUTLET, AIR OUTER, RH 55452 - OUTLET, AIR OUTER, LH 55453 - COVER, RADIO TUNER OPENING 55468 - COVER, HEATER SWITCH HOLE 55476 - COVER, CIGARETTE LIGHTER HOLE 55488 - COVER, STEREO OPENING ** Refer Fig ** Refer Fig 55619 - COVER, SWITCH HOLE 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH 55955 - GUIDE, DEFROSTER NOZZLE 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
