TOYOTA HIACE RH20LB-JR / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

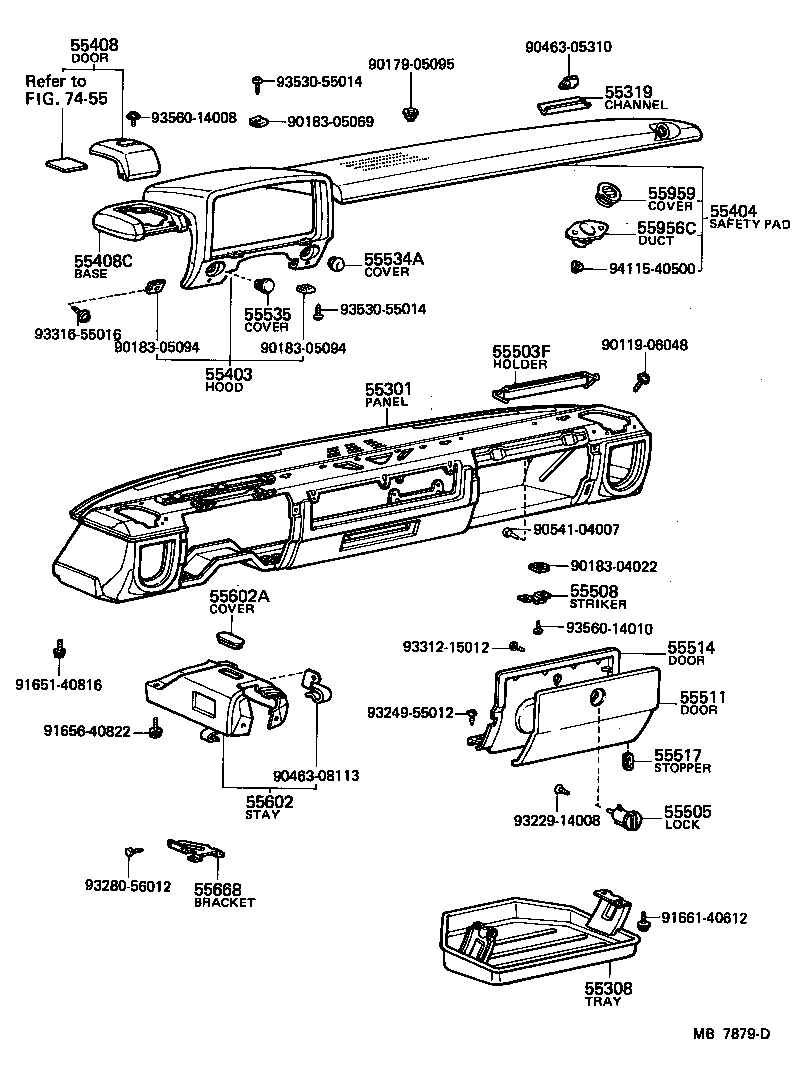

INSTRUMENT PANEL GLOVE COMPARTMENT

(7702-7912)LHD

HIACE | INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER 55319 - CHANNEL, WATER GUIDE 55403 - HOOD SUB-ASSY, METER 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER 55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE 55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR 55503F - HOLDER, CARD(FOR GLOVE COMPARTMENT) 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK 55511 - DOOR, GLOVE COMPARTMENT 55514 - DOOR, GLOVE COMPARTMENT, INNER 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM 55534A - COVER, ILLUMINATION LAMP HOLE 55535 - COVER, WARNING LAMP HOLE 55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER 55602A - COVER,STEERING COLUMN UPPER STAY 55668 - BRACKET, CONNECTOR SUPPORT 55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
