TOYOTA HIACE RH32RV-JREW / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

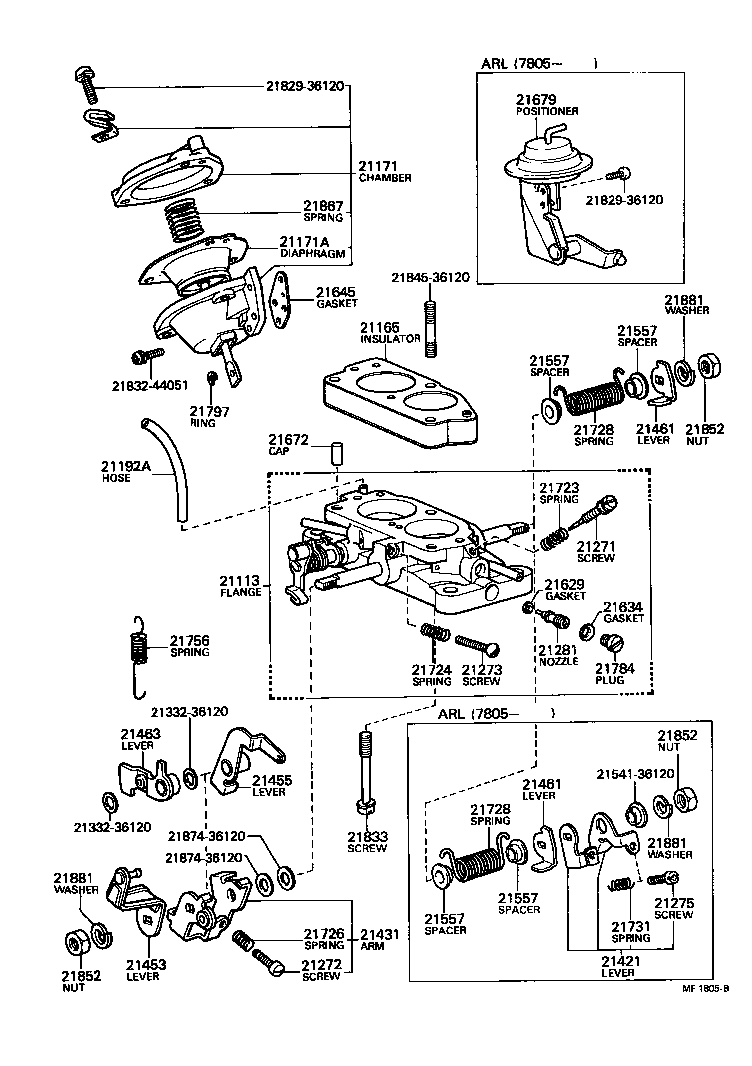

CARBURETOR

(7702-7908)18R

HIACE | CARBURETOR 21113 - FLANGE, CARBURETOR 21165 - INSULATOR 21171 - CHAMBER, DIAPHRAGM 21171A - DIAPHRAGM(FOR DIDPHRAGM CHAMBER) 21192A - HOSE, NO.1(FOR BREAKER) 21271 - SCREW, IDLE ADJUSTING 21272 - SCREW, 1ST IDLE ADJUSTING 21273 - SCREW, THROTTLE ADJUSTING 21275 - SCREW, ADJUSTING 21281 - NOZZLE, IDLE ** Std Part ** Std Part 21421 - LEVER, STOPPER 21431 - ARM, 1ST THROTTLE SHAFT 21453 - LEVER, 1ST THROTTLE 21455 - LEVER, THROTTLE 21461 - LEVER, 1ST IDLE 21461 - LEVER, 1ST IDLE 21463 - LEVER, 2ND THROTTLE ** Std Part 21557 - SPACER(FOR 1ST IDLE CAM) 21557 - SPACER(FOR 1ST IDLE CAM) 21557 - SPACER(FOR 1ST IDLE CAM) 21557 - SPACER(FOR 1ST IDLE CAM) 21629 - GASKET, IDLE NOZZLE 21634 - GASKET, SLOW PASSAGE PLUG 21645 - GASKET, DIAPHRAGM, CAP 21672 - CAP 21679 - POSITIONER 21723 - SPRING, IDLE ADJUSTING 21724 - SPRING, THROTTLE ADJUSTING 21726 - SPRING, 1ST IDLE ADJUSTING 21728 - SPRING, THROTTLE VALVE RETURN 21728 - SPRING, THROTTLE VALVE RETURN 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING 21756 - SPRING, BACK(FOR THROTTLE SHAFT) 21784 - PLUG, SLOW PASSAGE 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) ** Std Part ** Std Part ** Std Part 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) ** Std Part 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21852 - NUT, THROTTLE LEVER SET 21867 - SPRING, DIAPHRAGM ** Std Part ** Std Part 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) 21881 - WASHER, LOCK(FOR THROTTLE SHAFT)
