TOYOTA HIACE RH32RV-JREW / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

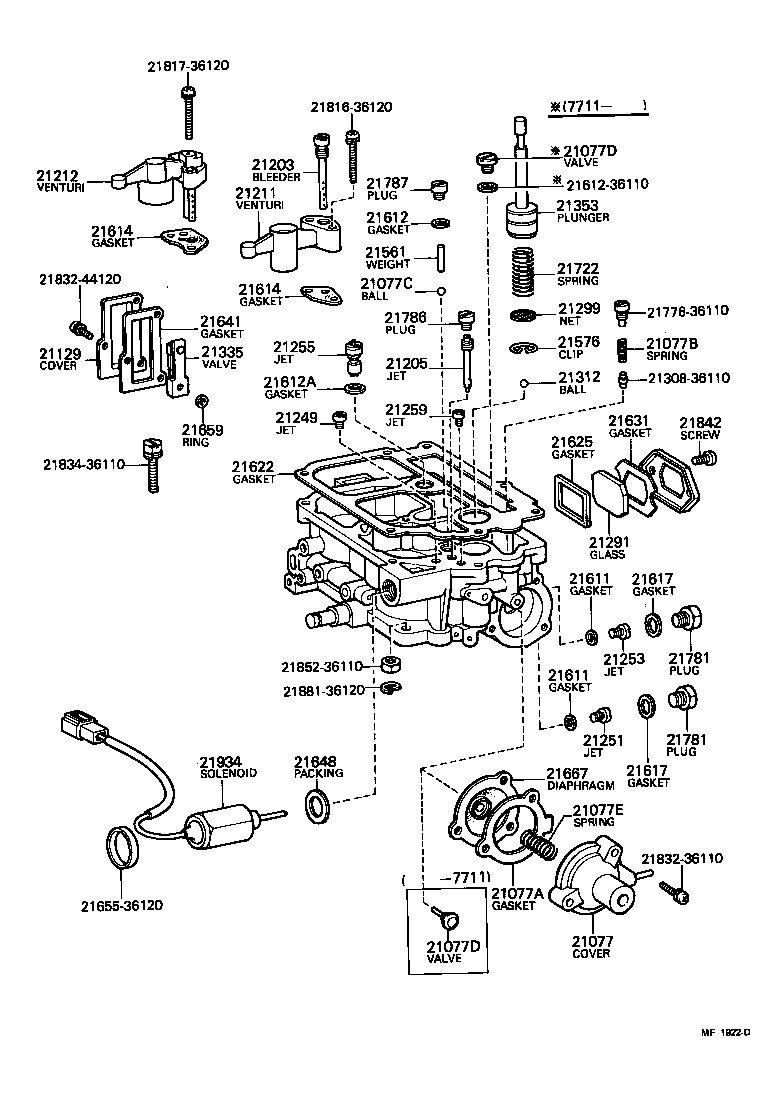

CARBURETOR

(7708-7908)18R

HIACE | CARBURETOR 21077 - COVER(FOR AUXILIARY ACCELERATION PUMP) 21077A - GASKET(FOR AUXILIARY ACCELERATION PUMP) 21077B - SPRING(FOR AUXILIARY ACCELERATION PUMP) 21077C - BALL, STEEL(FOR AUXILIARY ACCELERATION PUMP) 21077D - VALVE, CHECK(FOR AUXILIARY ACCELERATION PUMP) 21077D - VALVE, CHECK(FOR AUXILIARY ACCELERATION PUMP) 21077E - SPRING(FOR AUXILIARY ACCELERATION PUMP COVER) 21129 - COVER(FOR THERMOSTATIC VALVE) 21203 - BLEEDER SUB-ASSY, 1ST MAIN AIR 21205 - JET SUB-ASSY, SLOW 21211 - VENTURI, 1ST SMALL 21212 - VENTURI, 2ND SMALL 21249 - JET, AIR BLEED, NO.2 21251 - JET, 1ST MAIN 21253 - JET, 2ND MAIN 21255 - JET, POWER 21259 - JET, AIR BLEED 21291 - GLASS, LEVEL GAGE 21299 - NET, PUMP FILTER ** Std Part 21312 - BALL, STEEL 21335 - VALVE, THERMOSTATIC 21353 - PLUNGER, PUMP 21561 - WEIGHT, PUMP DISCHARGE 21576 - CLIP, PUMP STRAINER 21611 - GASKET, MAIN JET 21611 - GASKET, MAIN JET 21612 - GASKET, POWER VALVE ** Std Part 21612A - GASKET, POWER JET 21614 - GASKET, VENTURI 21614 - GASKET, VENTURI 21617 - GASKET, MAIN PASSAGE PLUG 21617 - GASKET, MAIN PASSAGE PLUG 21622 - GASKET, AIR HORN 21625 - GASKET, LEVEL GAGE 21631 - GASKET, MAIN GUIDE 21641 - GASKET(FOR THERMOSTATIC VALVE COVER) 21648 - PACKING(FOR SLOW VALVE COVER) ** Std Part 21659 - RING, O(FOR THERMOSTATIC VALVE) 21667 - DIAPHRAGM 21722 - SPRING, PUMP DAMPING ** Std Part 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) 21786 - PLUG, PUMP PASSAGE 21787 - PLUG, PUMP JET ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) ** Std Part ** Std Part 21934 - SOLENOID, THROTTLE VALVE
