TOYOTA HIACE RH32RV-JREW / TOOL-ENGINE-FUEL / CARBURETOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

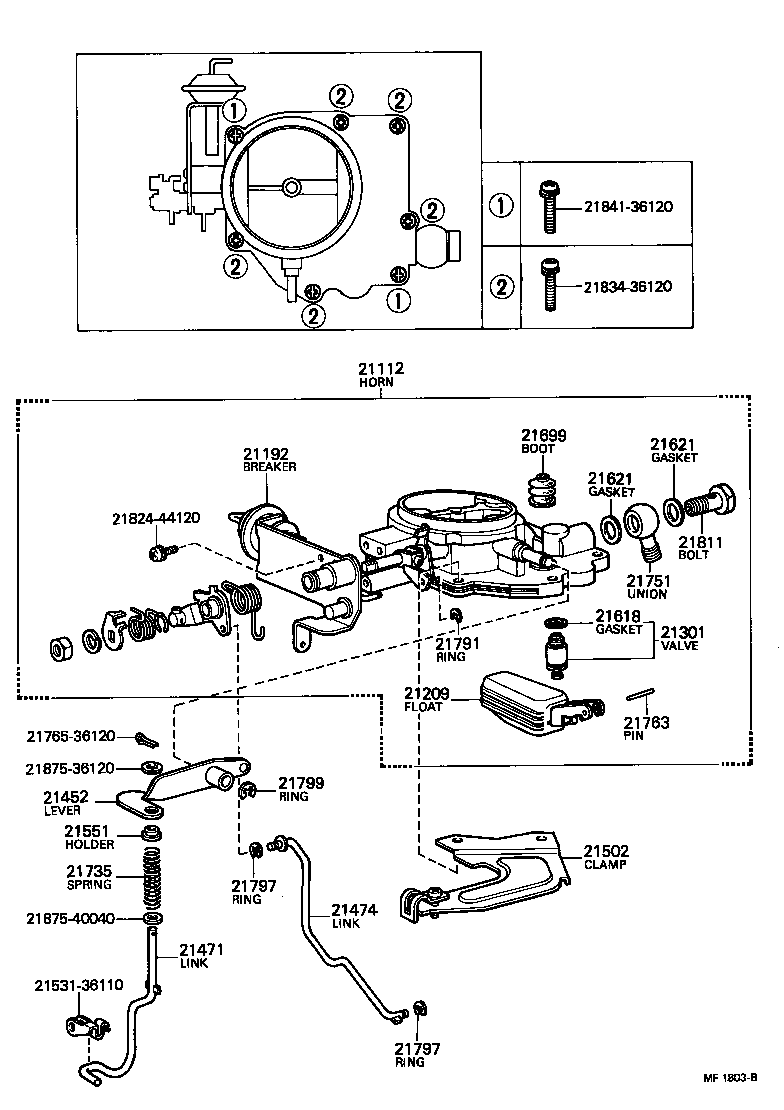

CARBURETOR

(7702-7908)18R

HIACE | CARBURETOR 21112 - HORN, AIR 21192 - BREAKER 21209 - FLOAT SUB-ASSY 21301 - VALVE SUB-ASSY, NEEDLE 21452 - LEVER, PUMP 21471 - LINK, PUMP CONNECTING 21474 - LINK, CONNECTING 21502 - CLAMP SUB-ASSY, CHOKE WIRE ** Std Part 21551 - HOLDER, BACK SPRING 21618 - GASKET, NEEDLE VALVE SEAT 21621 - GASKET, UNION NIPPLE 21621 - GASKET, UNION NIPPLE 21699 - BOOT(FOR PUMP PLUNGER) 21735 - SPRING, PUMP ARM 21751 - UNION, NIPPLE 21763 - PIN, FLOAT LEVER ** Std Part 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) 21797 - RING, SNAP, NO.4(FOR CARBURETOR LINK) 21799 - RING, E, TOP 21811 - BOLT, UNION NIPPLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
