LEXUS IS250 350 300H GSE30R-AETLHQ / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

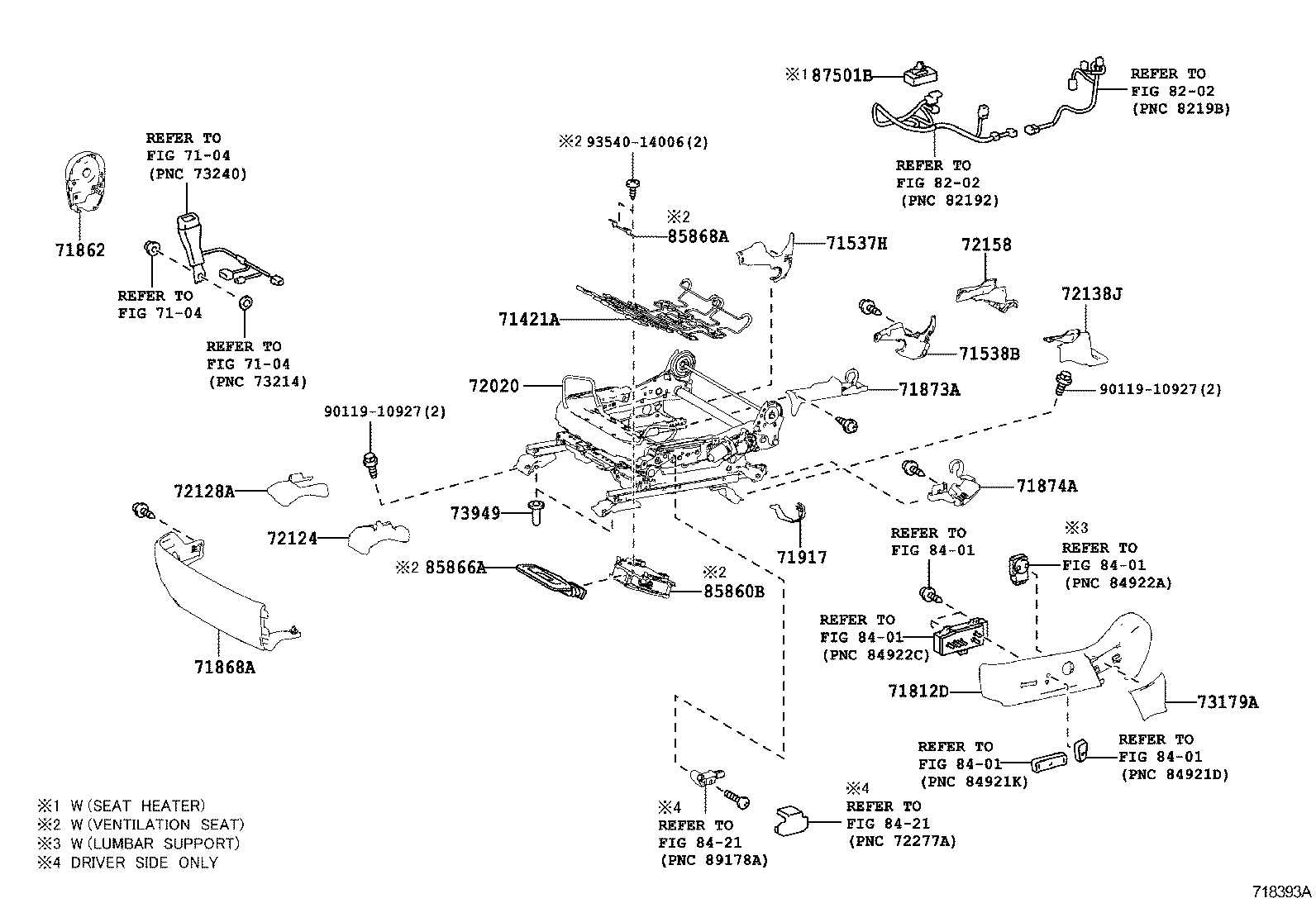

FRONT SEAT SEAT TRACK

LH SEAT(POWER) ILLUST NO. 2 OF 2(1304- )

IS250 350 300H | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71421A - SPRING, FRONT SEAT CUSHION 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) 71812D - SHIELD, FRONT SEAT CUSHION, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH 71917 - COVER, SEAT BELT HOLE, LH 72020 - ADJUSTER ASSY, FRONT SEAT, LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER 72158 - COVER, SEAT TRACK BRACKET, INNER LH 73179A - CAP, SEAT BELT ANCHOR COVER, LH 73949 - CAP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH 85868A - BRACKET, SEAT CUSHION CLIMATE CONTROL, LH 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH ** Std Part ** Std Part ** Std Part
