LEXUS IS250 350 300H GSE30R-AETLHQ / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

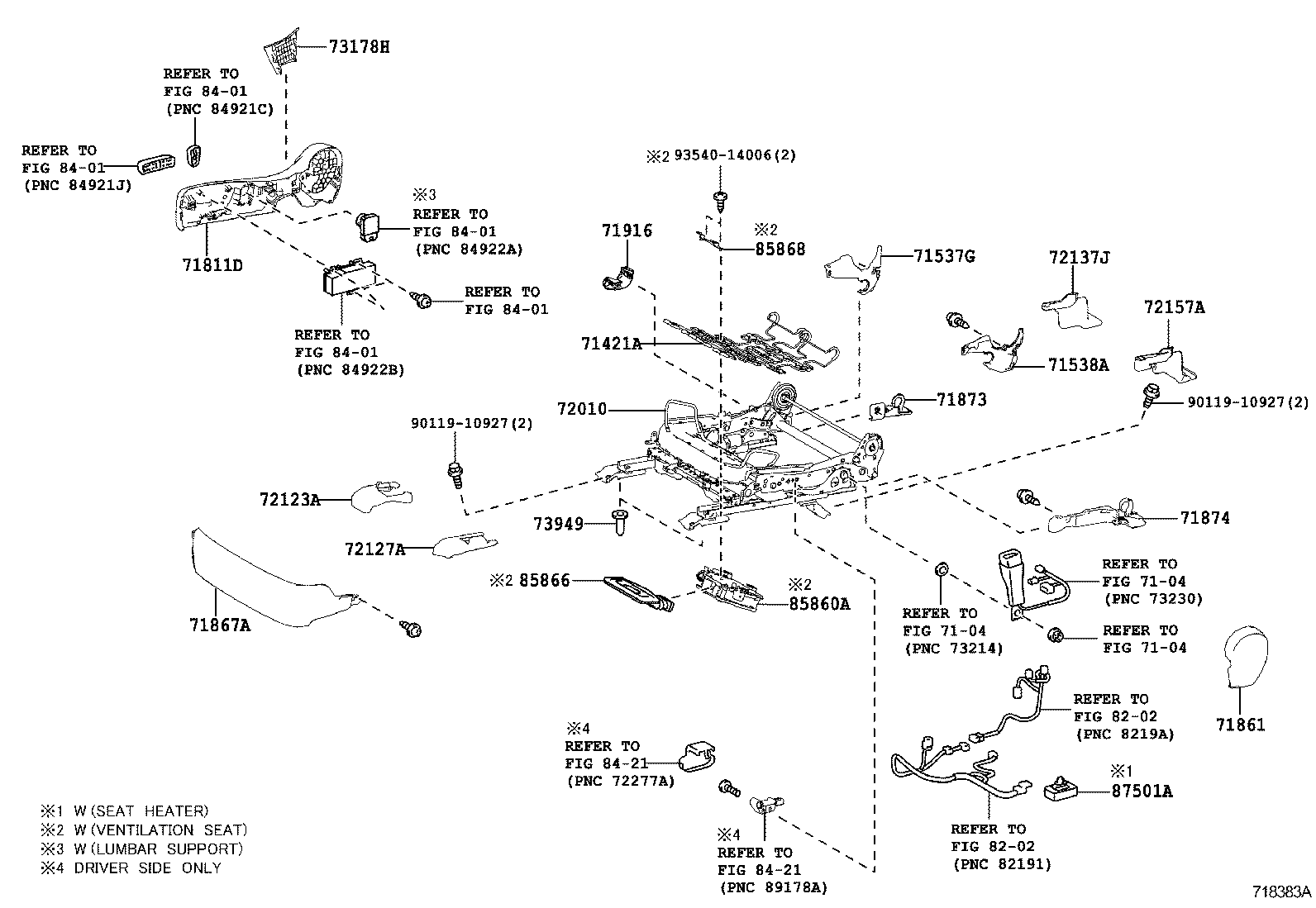

FRONT SEAT SEAT TRACK

RH SEAT(POWER) ILLUST NO. 2 OF 2(1304- )

IS250 350 300H | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig 71421A - SPRING, FRONT SEAT CUSHION 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) 71811D - SHIELD, FRONT SEAT CUSHION, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71916 - COVER, SEAT BELT HOLE, RH 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER 72157A - COVER, SEAT TRACK BRACKET, INNER RH 73178H - CAP, SEAT BELT ANCHOR COVER, RH 73949 - CAP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH ** Std Part ** Std Part ** Std Part
