LEXUS IS250 350 300H AVE30R-AEXLHQ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

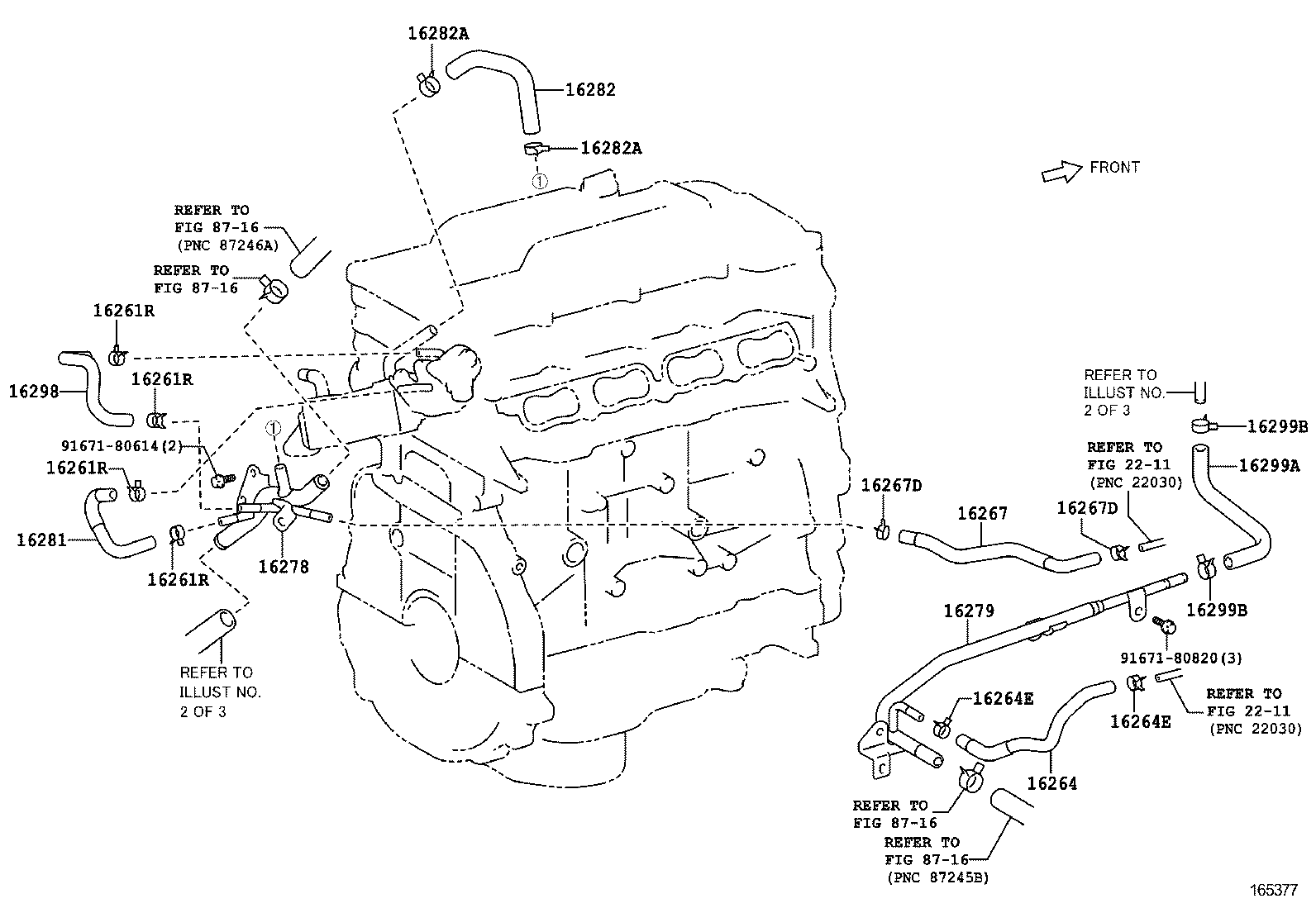

RADIATOR WATER OUTLET

W(EGR),INTAKE SIDE ILLUST NO. 3 OF 3(1304- )2ARFSE

 IS250 350 300H |  RADIATOR WATER OUTLET 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) 16278 - PIPE, WATER BY-PASS, NO.2 16279 - PIPE, WATER BY-PASS, NO.3 16281 - HOSE, WATER BY-PASS, NO.4 16282 - HOSE, WATER BY-PASS, NO.5 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16298 - HOSE, WATER BY-PASS, NO.12 16299A - HOSE, WATER BY-PASS, NO.13 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part
