LEXUS IS250 350 300H AVE30R-AEXLHQ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

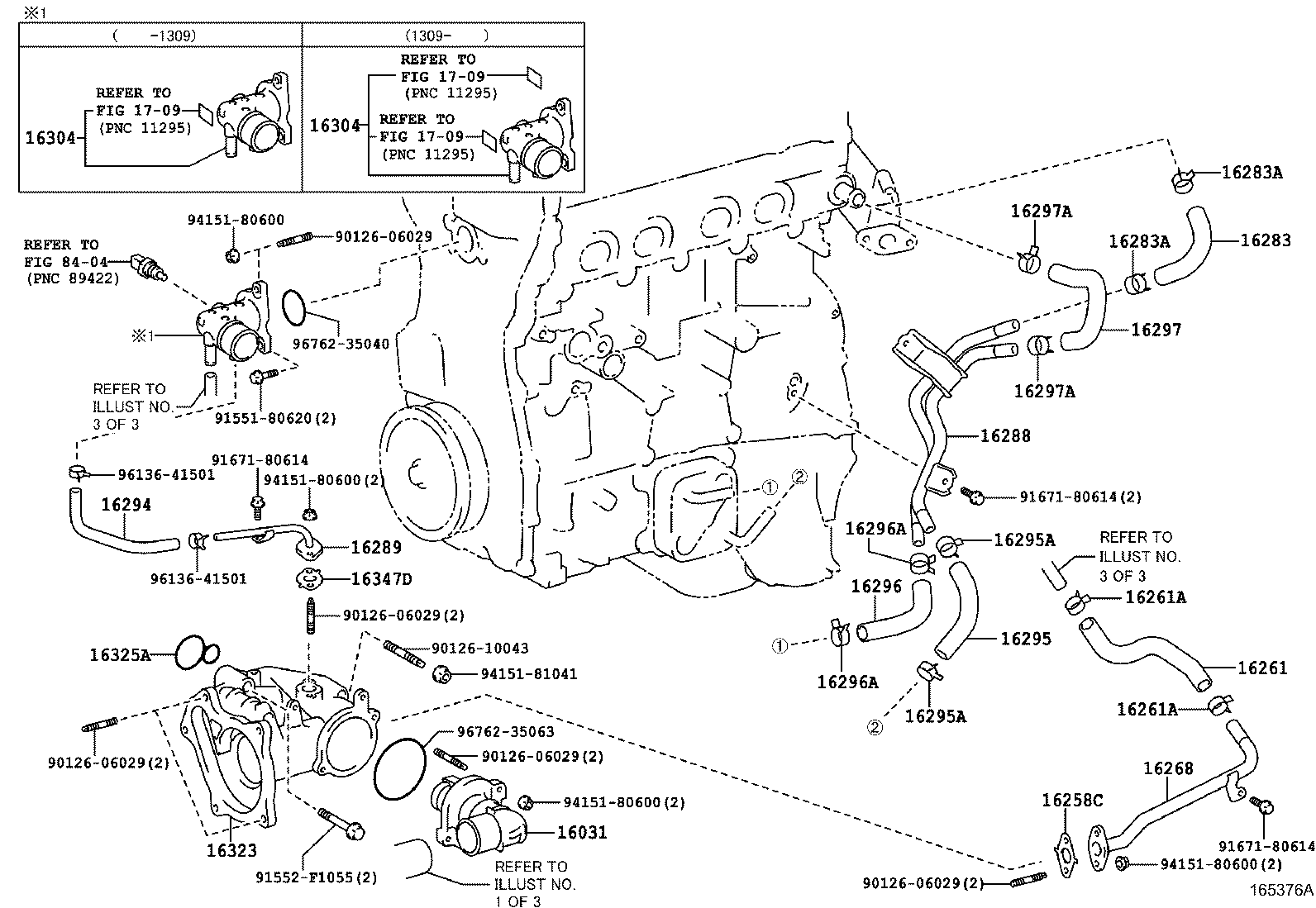

RADIATOR WATER OUTLET

W(EGR),EXHAUST SIDE ILLUST NO. 2 OF 3(1304- )2ARFSE

IS250 350 300H | RADIATOR WATER OUTLET 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT 16258C - GASKET(FOR WATER BY-PASS PIPE) 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16268 - PIPE, WATER BY-PASS, NO.1 16283 - HOSE, WATER BY-PASS, NO.6 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16288 - PIPE, WATER BY-PASS, NO.4 16289 - PIPE, WATER BY-PASS, NO.5 16294 - HOSE, WATER BY-PASS, NO.11 16295 - HOSE, WATER BY-PASS, NO.7 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) 16296 - HOSE, WATER BY-PASS, NO.8 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) 16297 - HOSE, WATER BY-PASS, NO.9 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) 16304 - OUTLET SUB-ASSY, WATER 16304 - OUTLET SUB-ASSY, WATER 16323 - HOUSING, WATER INLET 16325A - GASKET, WATER INLET HOUSING 16347D - GASKET, WATER BY-PASS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
