LEXUS LX460 570 URJ201L-GNTGKV / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

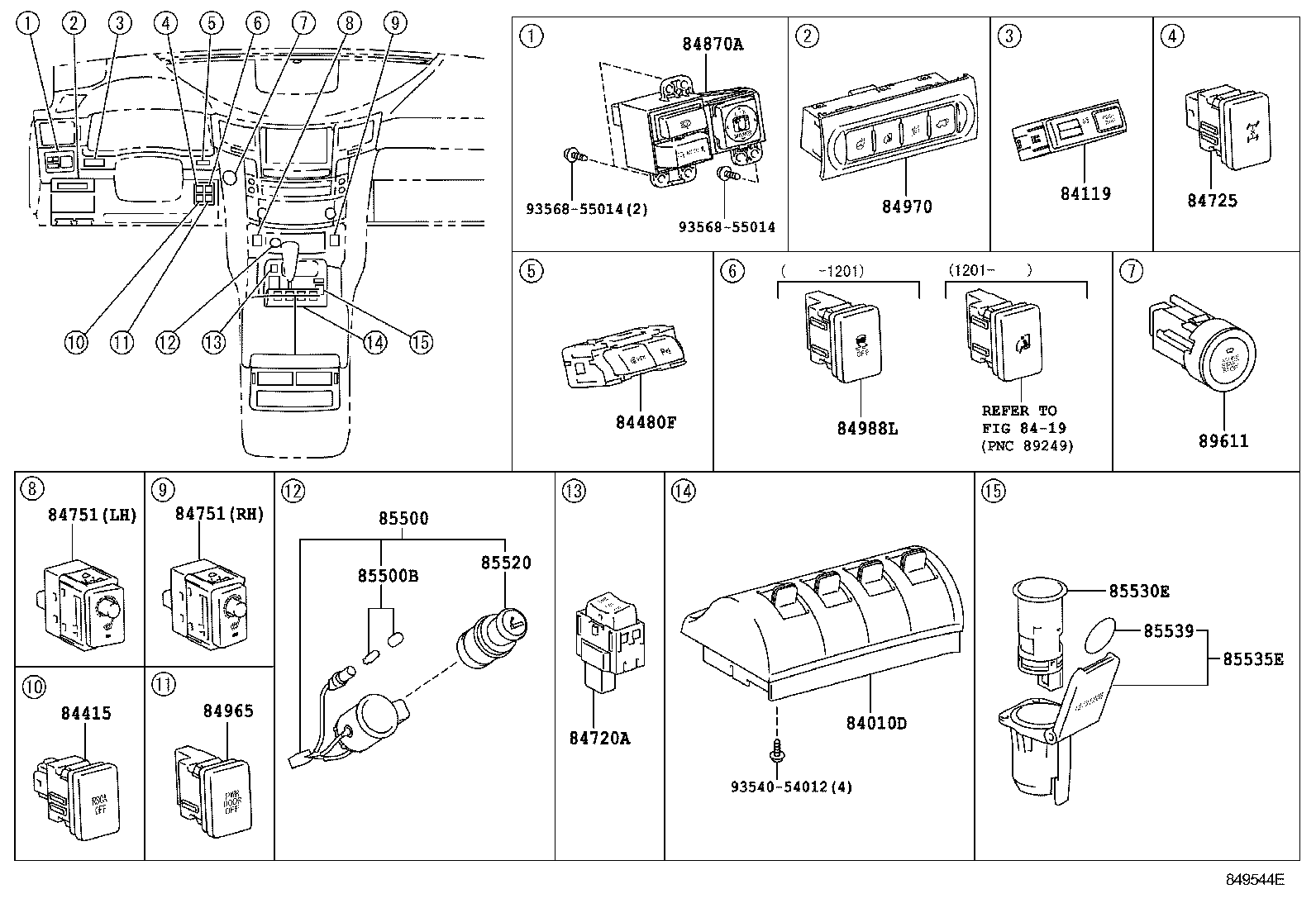

INSTRUMENT PANEL ILLUST NO. 5 OF 9(0711- )LHD

 LX460 570 |  SWITCH RELAY COMPUTER 84010D - CONTROL & PANEL ASSY, INTEGRATION 84119 - RHEOSTAT, LIGHT CONTROL ** Refer Fig 84415 - SWITCH, CURTAIN AIRBAG CUTOFF 84480F - SWITCH ASSY, MAIN 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 84725 - SWITCH, CENTER DIFFERENTIAL LOCK 84751 - SWITCH, SEAT HEATER 84751 - SWITCH, SEAT HEATER 84870A - SWITCH ASSY, OUTER MIRROR 84965 - SWITCH, POWER BACK DOOR MAIN 84970 - SWITCH ASSY, COMBINATION 84988L - SWITCH, VSC OFF 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535E - COVER, POWER OUTLET SOCKET, NO.2 85539 - LABEL, POWER OUTLET NOTICE 89611 - SWITCH, PUSH START  ** Std Part  ** Std Part  ** Std Part
