LEXUS LX460 570 URJ201L-GNTGKV / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

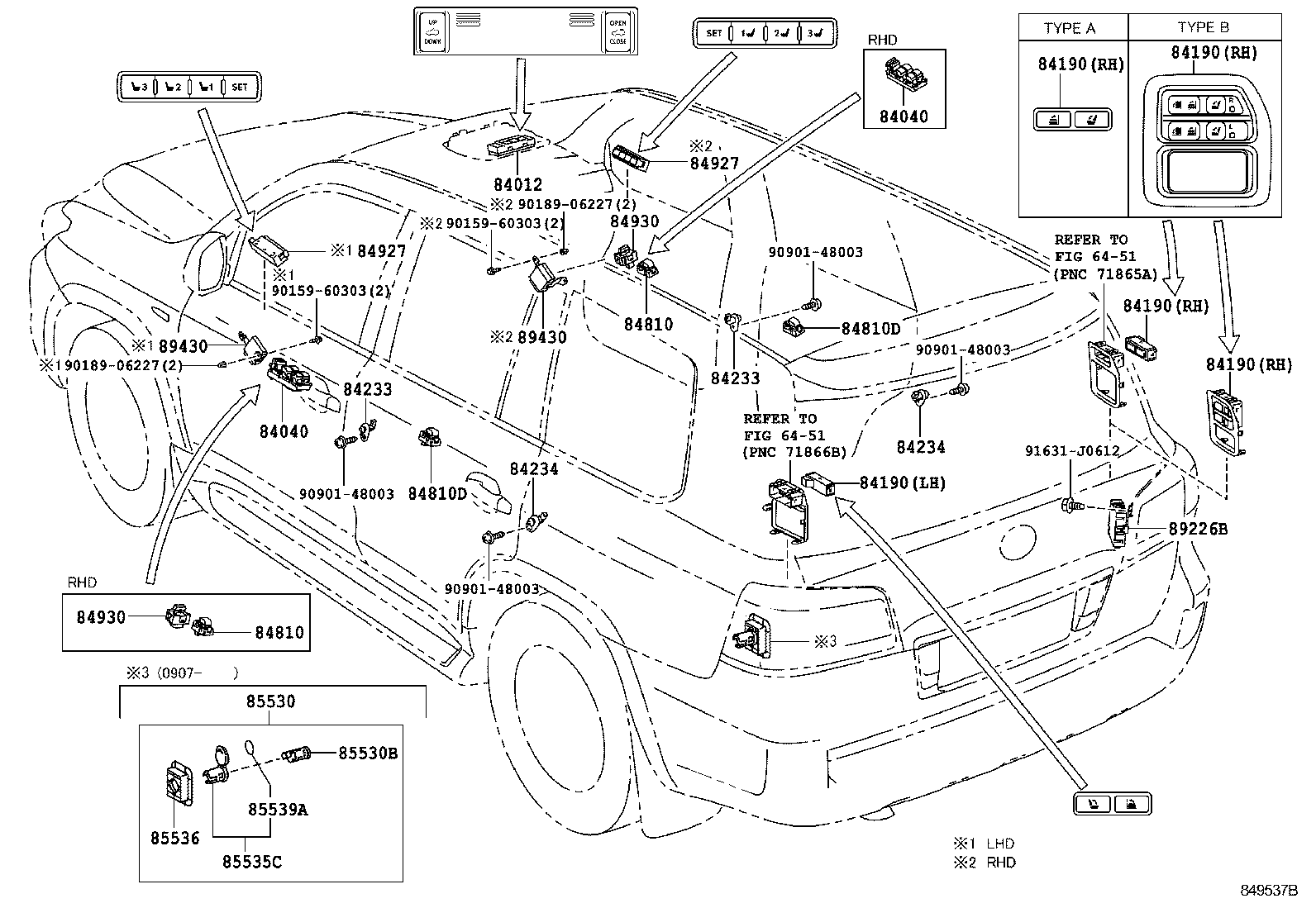

DOOR & ROOF ILLUST NO. 8 OF 9(0711-1201)

LX460 570 | SWITCH RELAY COMPUTER ** Refer Fig ** Refer Fig 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK 84190 - SWITCH ASSY, FOLD SEAT 84190 - SWITCH ASSY, FOLD SEAT 84190 - SWITCH ASSY, FOLD SEAT 84190 - SWITCH ASSY, FOLD SEAT 84190 - SWITCH ASSY, FOLD SEAT 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810 - SWITCH ASSY, POWER WINDOW REGULATOR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR 84927 - SWITCH, SEAT MEMORY 84927 - SWITCH, SEAT MEMORY 84930 - SWITCH ASSY, DOOR CONTROL 84930 - SWITCH ASSY, DOOR CONTROL 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 85535C - COVER, POWER OUTLET SOCKET, REAR 85536 - BEZEL, POWER OUTLET SOCKET 85539A - LABEL, POWER OUTLET NOTICE, REAR 89226B - COMPUTER, MULTIPLEX NETWORK BODY, NO.2 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
