LEXUS ES240 350 ACV40L-BEAGKC / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

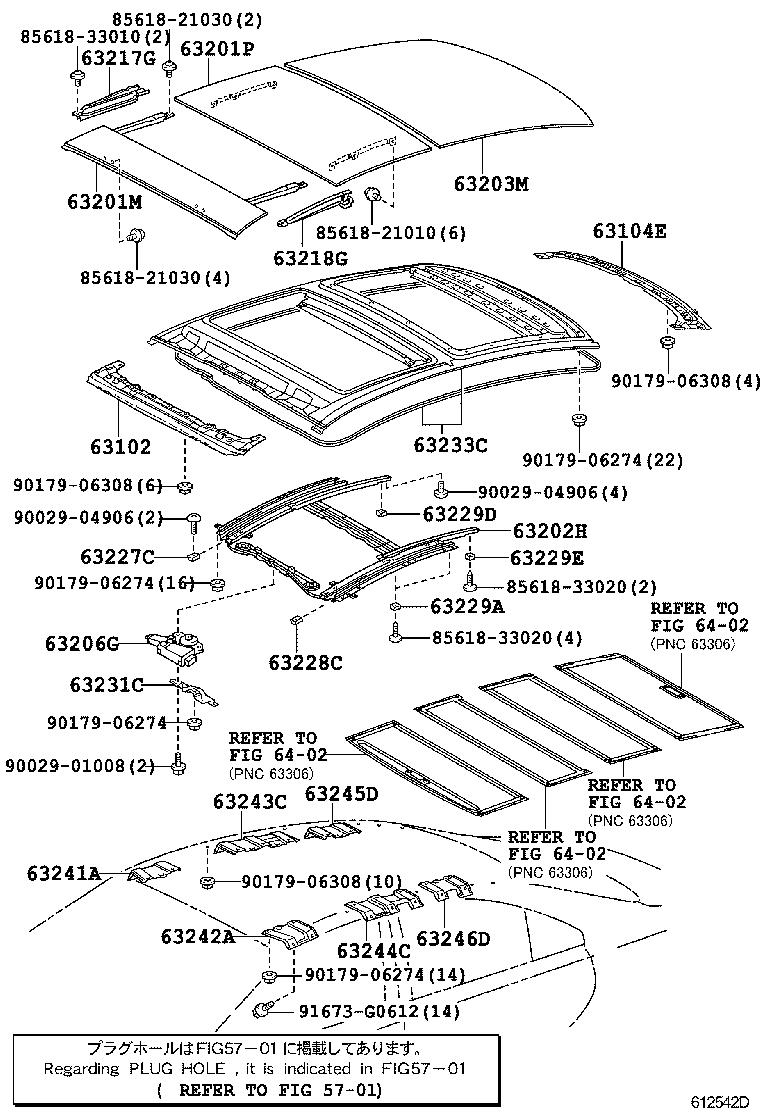

ROOF PANEL BACK WINDOW GLASS

LARGE GLASS ROOF ILLUST NO. 2 OF 2(0607- )

ES240 350 | ROOF PANEL BACK WINDOW GLASS ** Refer Fig 63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR 63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1 63201P - GLASS SUB-ASSY, SLIDING ROOF 63202H - RAIL SUB-ASSY, SLIDE ROOF 63203M - GLASS SUB-ASSY, ROOF WINDOW, NO.2 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE 63217G - GARNISH, SLIDING ROOF SIDE, RH 63218G - GARNISH, SLIDING ROOF SIDE, LH 63227C - STOPPER, SLIDING ROOF SUNSHADE, FRONT RH 63228C - STOPPER, SLIDING ROOF SUNSHADE, FRONT LH 63229A - STOPPER, SLIDING ROOF SUNSHADE 63229D - STOPPER, SLIDING ROOF SUNSHADE, REAR RH 63229E - STOPPER, SLIDING ROOF SUNSHADE, REAR LH 63231C - BRACKET, ROOM LAMP 63233C - PANEL, SLIDING ROOF HOUSING 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
