LEXUS ES240 350 ACV40L-BEAGKC / BODY / ROOF PANEL BACK WINDOW GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

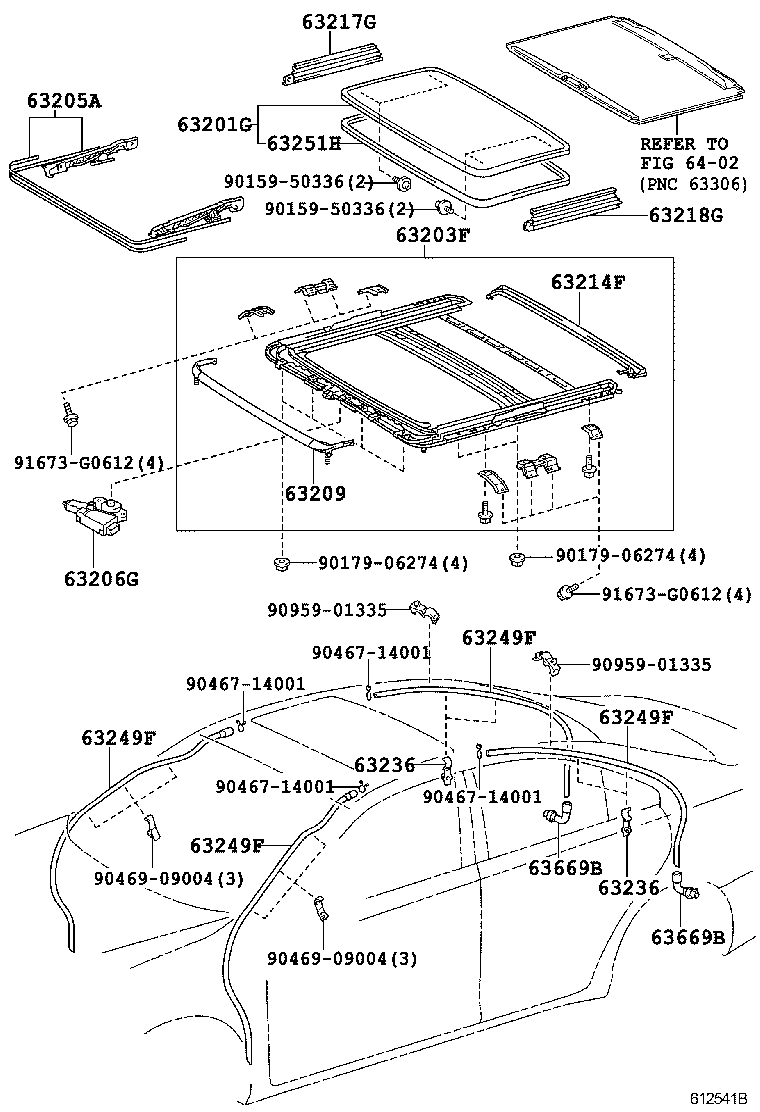

ROOF PANEL BACK WINDOW GLASS

MOON ROOF ILLUST NO. 2 OF 2(0605- )

ES240 350 | ROOF PANEL BACK WINDOW GLASS 63201G - GLASS SUB-ASSY, SLIDING ROOF 63203F - HOUSING SUB-ASSY, SLIDING ROOF 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR 63214F - CHANNEL, ROOF DRIP, REAR 63217G - GARNISH, SLIDING ROOF SIDE, RH 63218G - GARNISH, SLIDING ROOF SIDE, LH 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE 63249F - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63249F - HOSE, SLIDING ROOF DRAIN 63251H - WEATHERSTRIP, SLIDING ROOF 63669B - GROMMET, SLIDING ROOF DRAIN 63669B - GROMMET, SLIDING ROOF DRAIN ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
