LEXUS LS430 UCF30L-AEAGKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

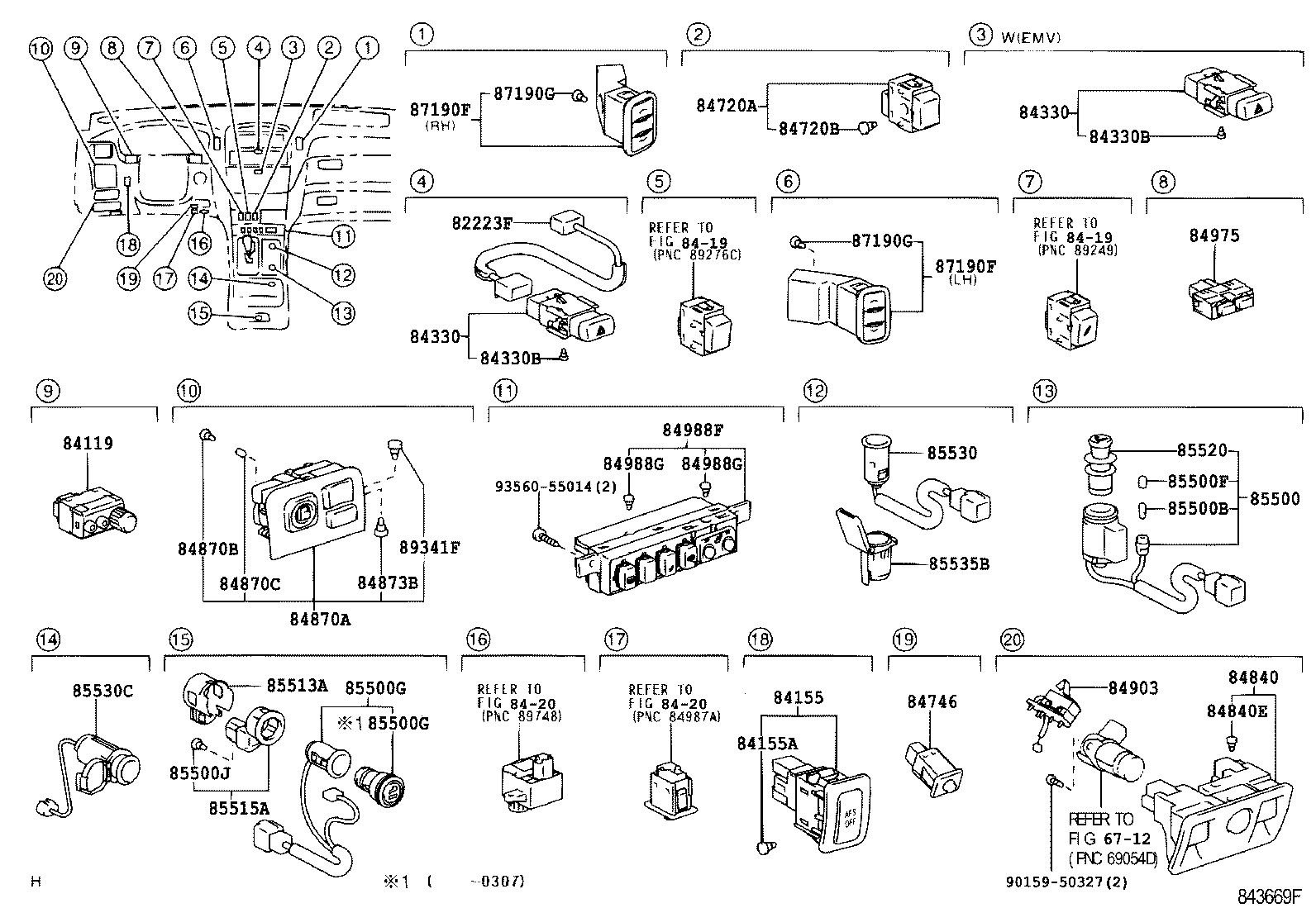

INSTRUMENT PANEL ILLUST NO. 4 OF 7(0008- )LHD

LS430 | SWITCH RELAY COMPUTER ** Refer Fig 82223F - WIRE, SWITCH 84119 - RHEOSTAT, LIGHT CONTROL 84155 - SWITCH, HEADLAMP SWIVEL MAIN 84155A - BULB, HDEADLAMP SWIVEL MAIN SWITCH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL 84330B - BULB, HAZARD WARNING SIGNAL SWITCH 84330B - BULB, HAZARD WARNING SIGNAL SWITCH 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 84720B - BULB (FOR PATTERN SELECT SWITCH) 84746 - SWITCH, TIRE PRESSURE WARNING 84840 - SWITCH ASSY, LUGGAGE DOOR OPENING 84840E - BLUB, LUGGAGE DOOR OPENING, SWITCH ASSY 84870A - SWITCH ASSY, OUTER MIRROR 84870B - BULB, OUTER MIRROR SWITCH 84870C - CAP, OUTER MIRROR SWITCH BULB 84873B - BULB, RETRACTABLE OUTER MIRROR SWITCH 84903 - SWITCH SUB-ASSY, DOOR UN-LOCK 84975 - SWITCH, TRIP 84988F - SWITCH, TRACTION CONTROL 84988G - BULB, TRACTION CONTROL SWITCH 84988G - BULB, TRACTION CONTROL SWITCH 85500 - LIGHTER ASSY, CIGARETTE 85500B - BULB, CIGARETTE LIGHTER 85500F - CAP, CIGARETTE LIGHTER BULB 85500G - LIGHTER ASSY, CIGARETTE, REAR 85500G - LIGHTER ASSY, CIGARETTE, REAR 85500J - BULB, CIGARETTE LIGHTER, REAR 85513A - COVER, CIGARETTE LIGHTER, REAR 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 85530 - SOCKET ASSY, POWER OUTLET, NO.1 85530C - SOCKET ASSY, POWER OUTLET, CENTER 85535B - COVER, POWER OUTLET SOCKET, NO.1 87190F - SWITCH ASSY, TEMPERATURE CONTROL 87190F - SWITCH ASSY, TEMPERATURE CONTROL 87190G - BULB, TEMPERATURE CONTROL 87190G - BULB, TEMPERATURE CONTROL 89341F - BULB, CLEARANCE SONAR SWITCH ** Std Part ** Std Part
