LEXUS LS430 UCF30L-AEAGKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

SWITCH RELAY COMPUTER

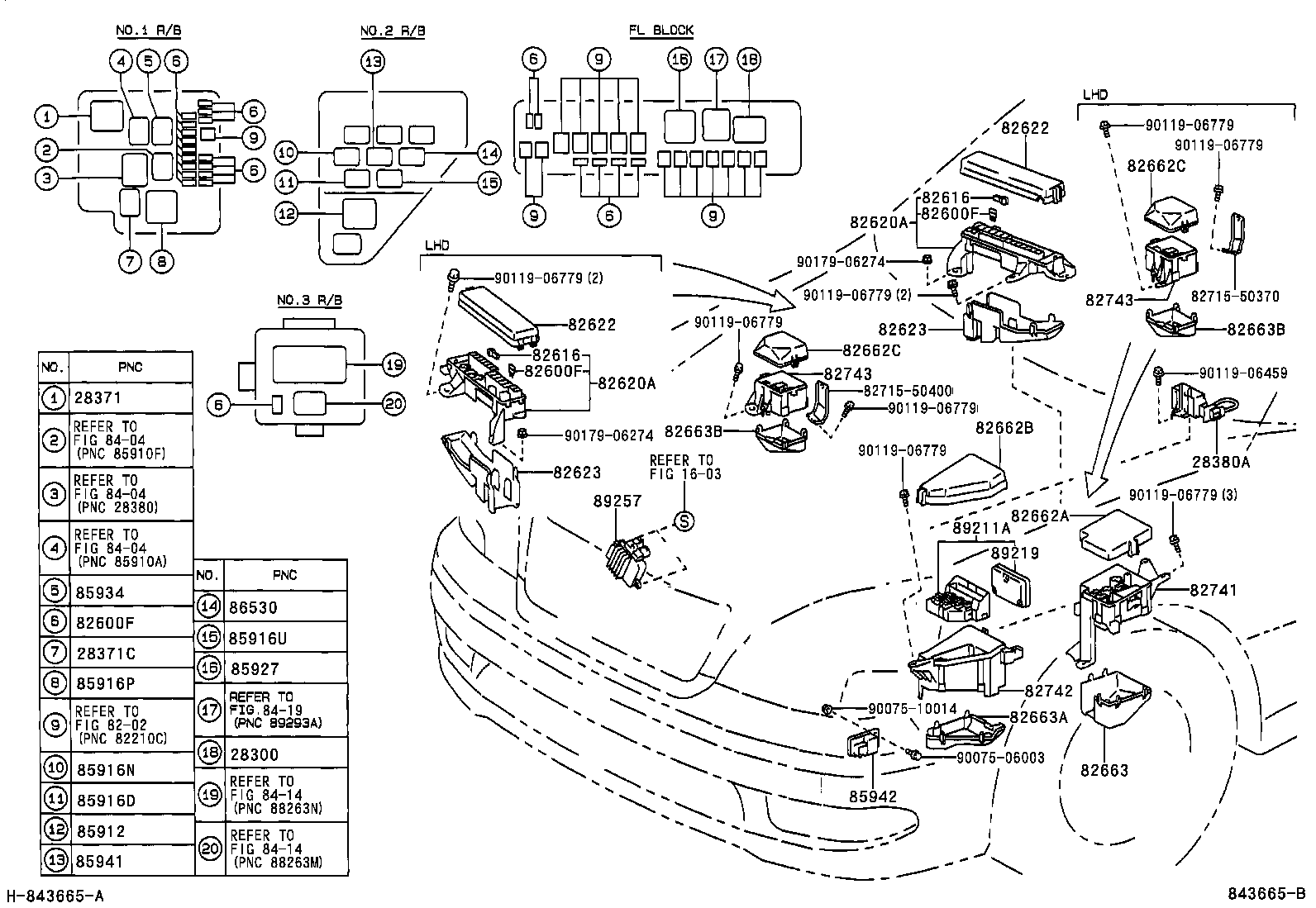

ENGINE ROOM ILLUST NO. 2 OF 7(0008-0307)

LS430 | SWITCH RELAY COMPUTER ** Refer Fig 28300 - RELAY ASSY, STARTER 28371 - RELAY, IGNITION, NO.1 28371C - RELAY, IGNITION, NO.2 28380A - RESISTER, FUEL PUMP ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620A - BLOCK ASSY, FUSIBLE LINK 82622 - COVER, FUSIBLE LINK, UPPER 82622 - COVER, FUSIBLE LINK, UPPER 82623 - COVER, FUSIBLE LINK, LOWER 82623 - COVER, FUSIBLE LINK, LOWER 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82663B - COVER, RELAY BLOCK, LOWER, NO.3 ** Std Part ** Std Part 82741 - BLOCK, ENGINE ROOM RELAY 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85912 - RELAY, DEFOGGER 85916D - RELAY, FOG LAMP 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85916U - RELAY, HEADLAMP, NO.2 85927 - RELAY, COOLING FAN 85934 - RELAY, MAGNET-CLUTCH 85941 - RELAY, WINDSHIELD WASHER 85942 - RELAY, HEADLAMP CLEANER CONTROL 86530 - RELAY ASSY, HORN 89211A - COMPUTER, MULTIPLEX NETWORK BODY 89219 - COMPUTER, MULTIPLEX NETWORK FRONT LAMP 89257 - COMPUTER, COOLING FAN ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
