TOYOTA TACOMA VZN170L-CRMGKAB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

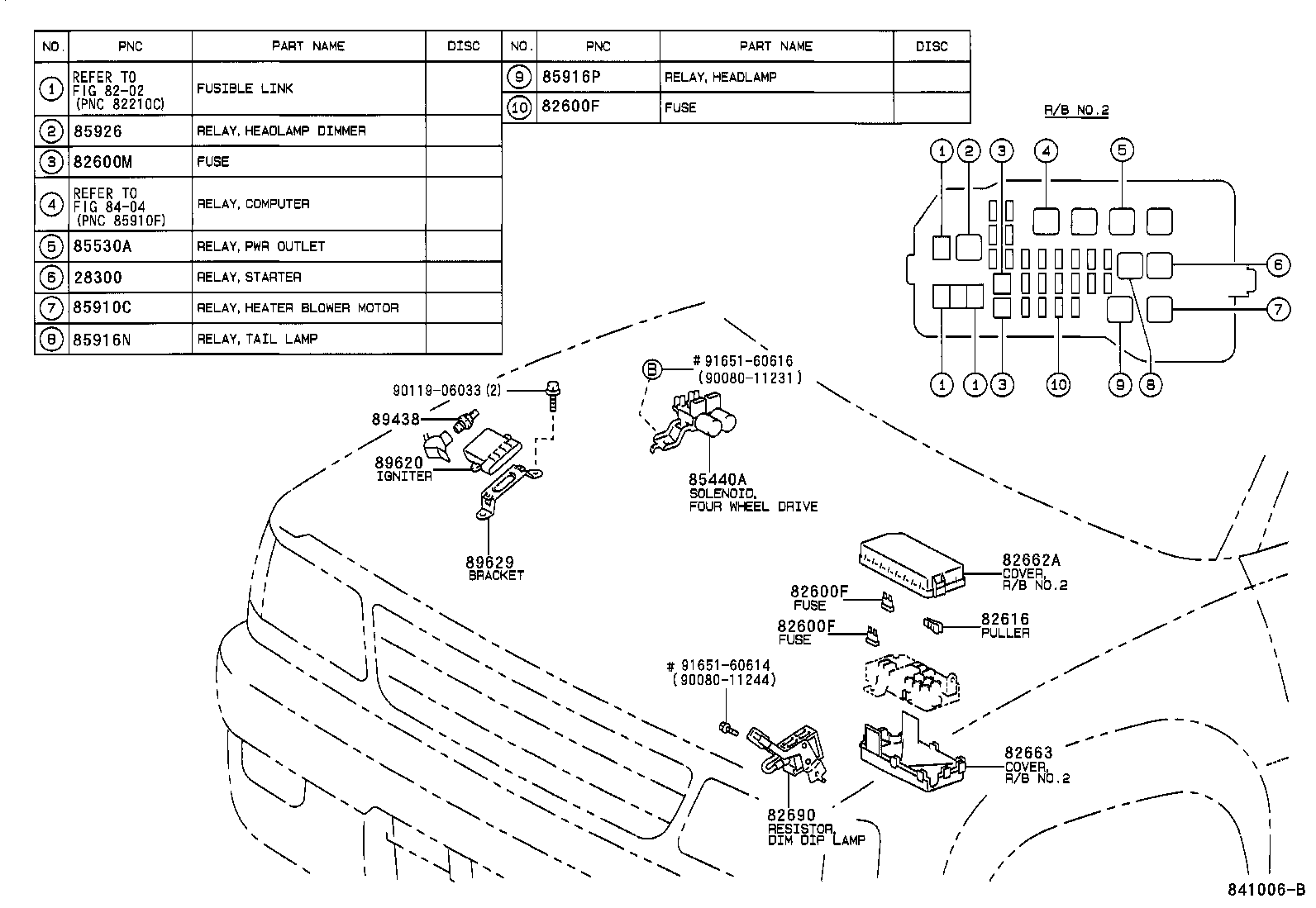

ENGINE ROOM ILLUST NO. 2 OF 6(9706-0009)

TACOMA | SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER ** Refer Fig 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600M - FUSE, MEDIUM CURRENT 82616 - PULLER, FUSE 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82690 - RESISTOR ASSY, DIM DIP LAMP ** Refer Fig 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL 85530A - RELAY, POWER OUTLET SOCKET 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) 85916N - RELAY, TAIL LAMP 85916P - RELAY, HEADLAMP 85926 - RELAY, HEADLAMP DIMMER 89438 - SWITCH, POWER STEERING OIL PRESSURE 89620 - IGNITER ASSY 89629 - BRACKET, IGNITER ASSY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
