TOYOTA CROWN HYBRID GWS214-AEXZB / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

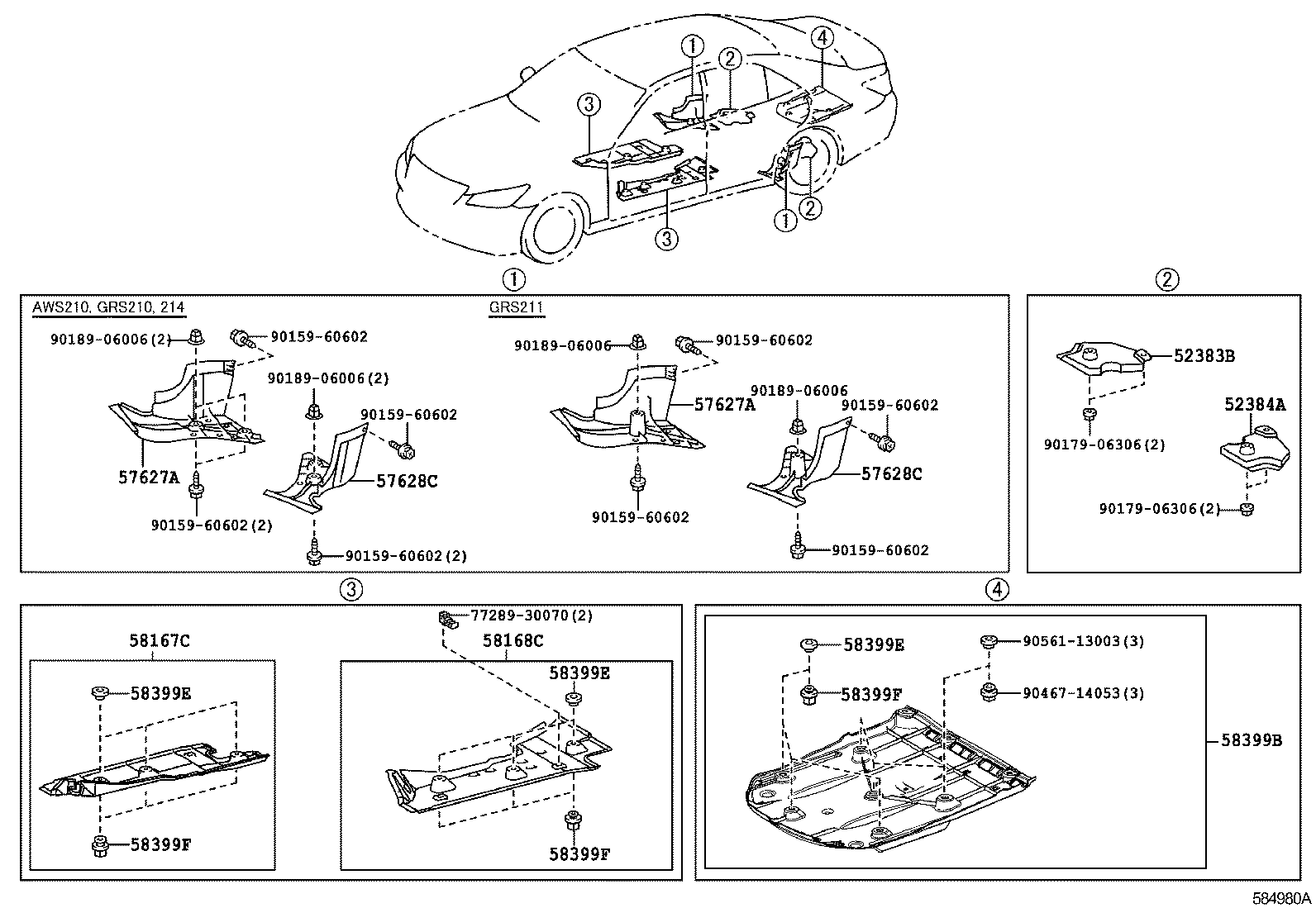

FLOOR PAN LOWER BACK PANEL

ILLUST NO. 2 OF 3(1311- )GWS214

CROWN HYBRID | FLOOR PAN LOWER BACK PANEL 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 57627A - COVER, REAR FLOOR SIDE MEMBER, RH 57627A - COVER, REAR FLOOR SIDE MEMBER, RH 57628C - COVER, REAR FLOOR SIDE MEMBER, LH 57628C - COVER, REAR FLOOR SIDE MEMBER, LH 58167C - COVER, FRONT FLOOR, CENTER RH 58168C - COVER, FRONT FLOOR, CENTER LH 58399B - COVER, FLOOR UNDER, NO.2 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399E - CLIP, NO.1(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) 58399F - CLIP, NO.2(FOR FLOOR UNDER COVER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
