TOYOTA CROWN COMFORT SED TSS11-BEPFC / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

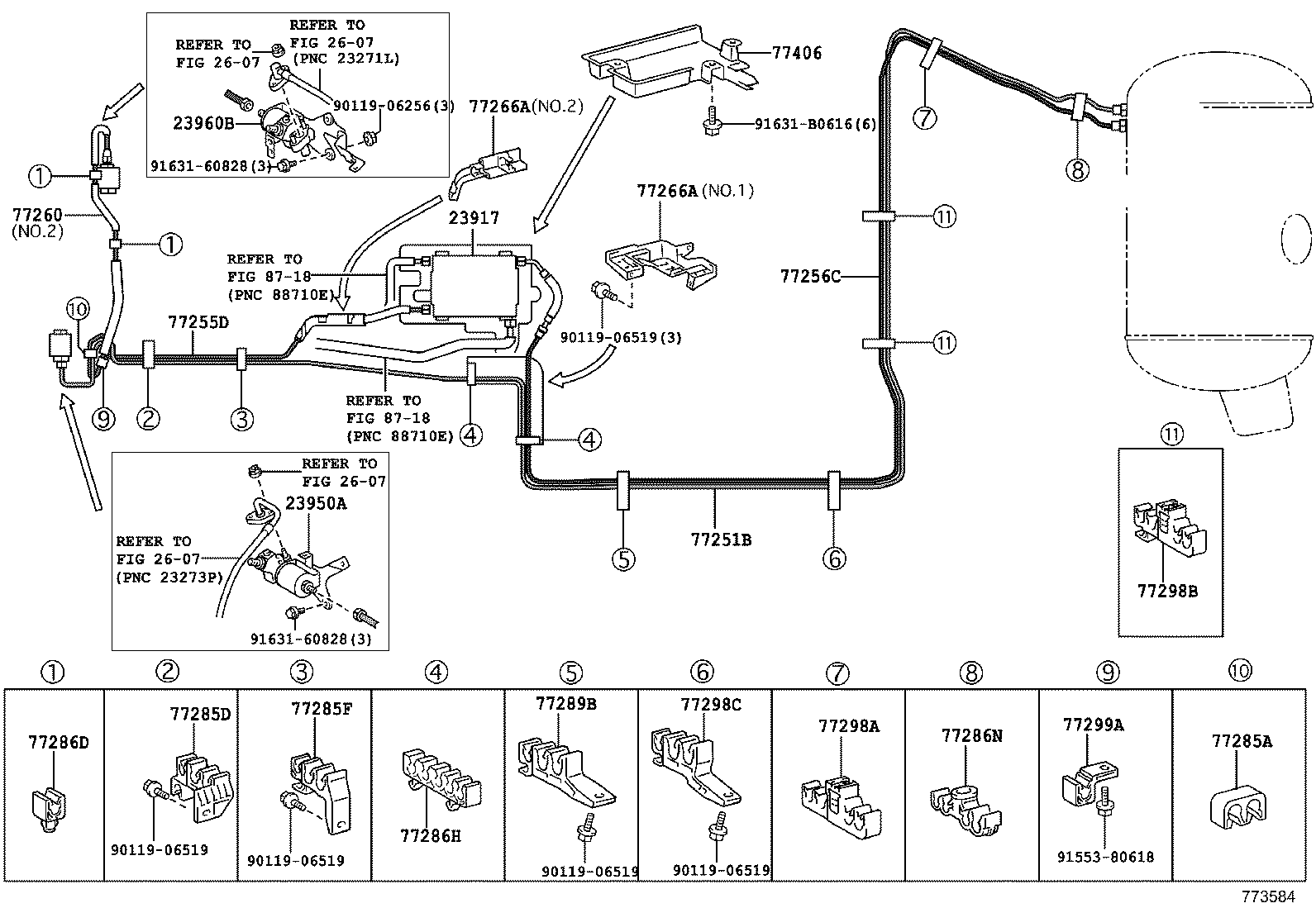

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ,ｱﾘ(ﾌｭｰｴﾙ ｸｰﾗ) ILLUST NO. 4 OF 4(1310- )TSS10,11

CROWN COMFORT SED | FUEL TANK TUBE 23917 - COOLER, FUEL 23950A - VALVE ASSY, SOLENOID 23960B - VALVE ASSY, SOLENOID LPG ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77256C - TUBE, FUEL RETURN, NO.2 77260 - HOSE ASSY, FUEL MAIN 77266A - PROTECTOR, FUEL TUBE, NO.1 77266A - PROTECTOR, FUEL TUBE, NO.1 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77285D - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77286H - CLAMP, FUEL TUBE, NO.3 77286N - CLAMP, FUEL TUBE, NO.7 77289B - CLAMP, FUEL TUBE, NO.3 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77406 - PROTECTOR SUB-ASSY, FUEL TUBE ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
