TOYOTA ALPHARD VELLFIRE HV GGH20W-PFTSK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

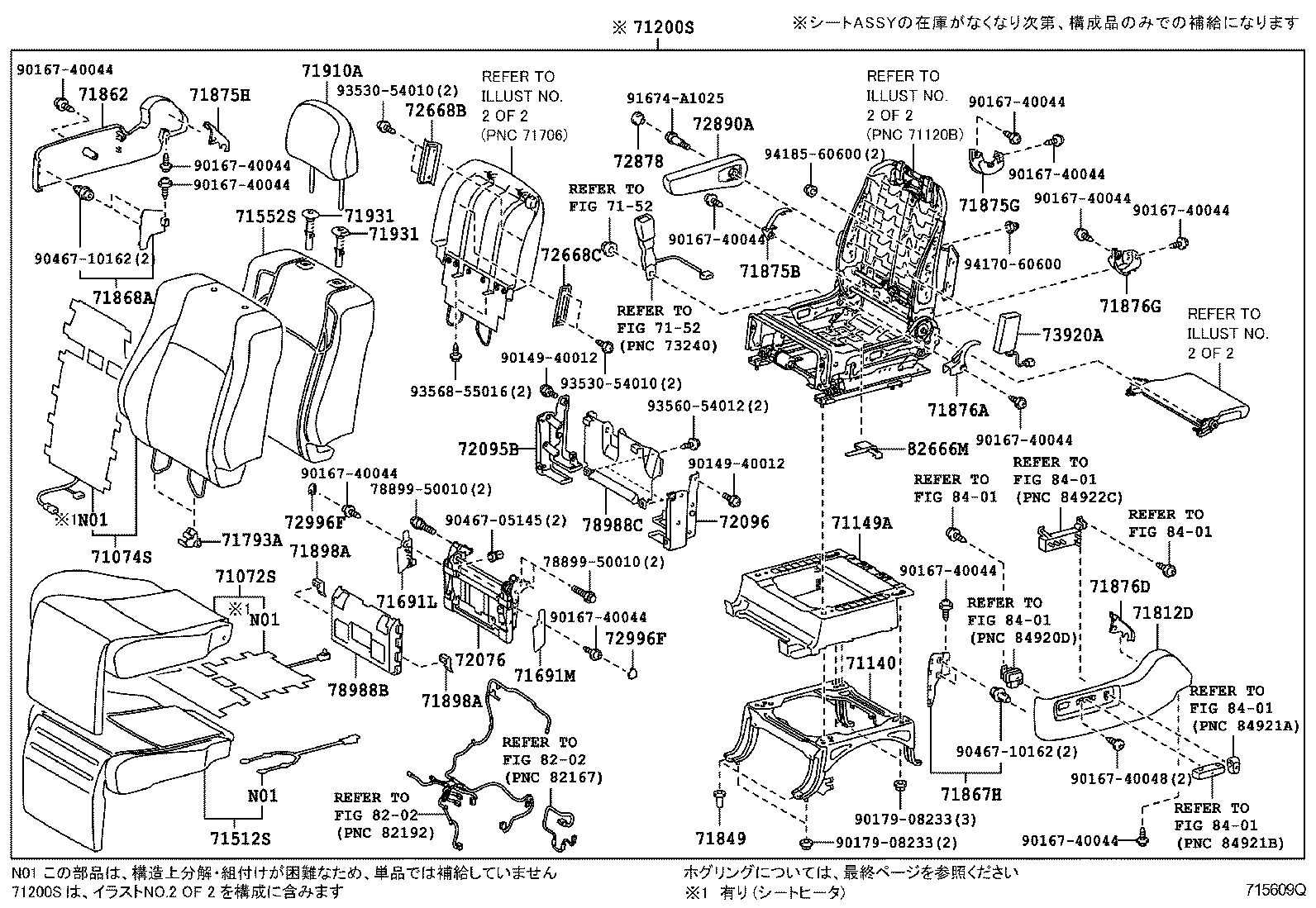

SEAT SEAT TRACK

ｼﾞｮｼｭｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ & ｵｵｶﾞﾀ ﾌｯﾄﾚｽﾄ) ILLUST NO. 1 OF 2(0804-1110)ANH20,GGH2#..07S..240G,24V,24Z,350G,3

ALPHARD VELLFIRE HV | SEAT SEAT TRACK 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71140 - LEG ASSY, FRONT SEAT, LH 71149A - COVER, FRONT SEAT LEG, LH 71200S - SEAT ASSY, FRONT LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71691L - COVER, FRONT SEAT CUSHION HINGE, RH 71691M - COVER, FRONT SEAT CUSHION HINGE, LH 71793A - CLIP, FRONT SEAT BACK POCKET 71812D - SHIELD, FRONT SEAT CUSHION, LH 71849 - CAP, SEAT ADJUSTER COVER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71867H - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) 71876A - COVER, RECLINING ADJUSTER INSIDE, LH 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) 71898A - HOOK, SEAT COVER 71898A - HOOK, SEAT COVER 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72076 - ARM SUB-ASSY, RECLINING ADJUST, LWR INNER LH 72095B - PLATE SUB-ASSY, FRONT SEAT, RH 72096 - PLATE SUB-ASSY, FRONT SEAT, LH 72668B - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.1 72668C - BEZEL, FRONT SEAT BACK LOCK, LOWER NO.2 72878 - COVER, SEAT ARMREST, LH 72890A - ARMREST ASSY, FRONT SEAT, INNER LH 72996F - COVER, FRONT SEAT 72996F - COVER, FRONT SEAT 73920A - AIR BAG ASSY, FRONT SEAT, LH ** Std Part ** Std Part 78988B - COVER, FRONT SEAT FOOTREST, NO.1 78988C - COVER, FRONT SEAT FOOTREST, NO.2 ** Refer Fig ** Refer Fig 82666M - HOLDER, CONECTOR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
