TOYOTA ESTIMA HYBRID AHR10W-MREGB / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

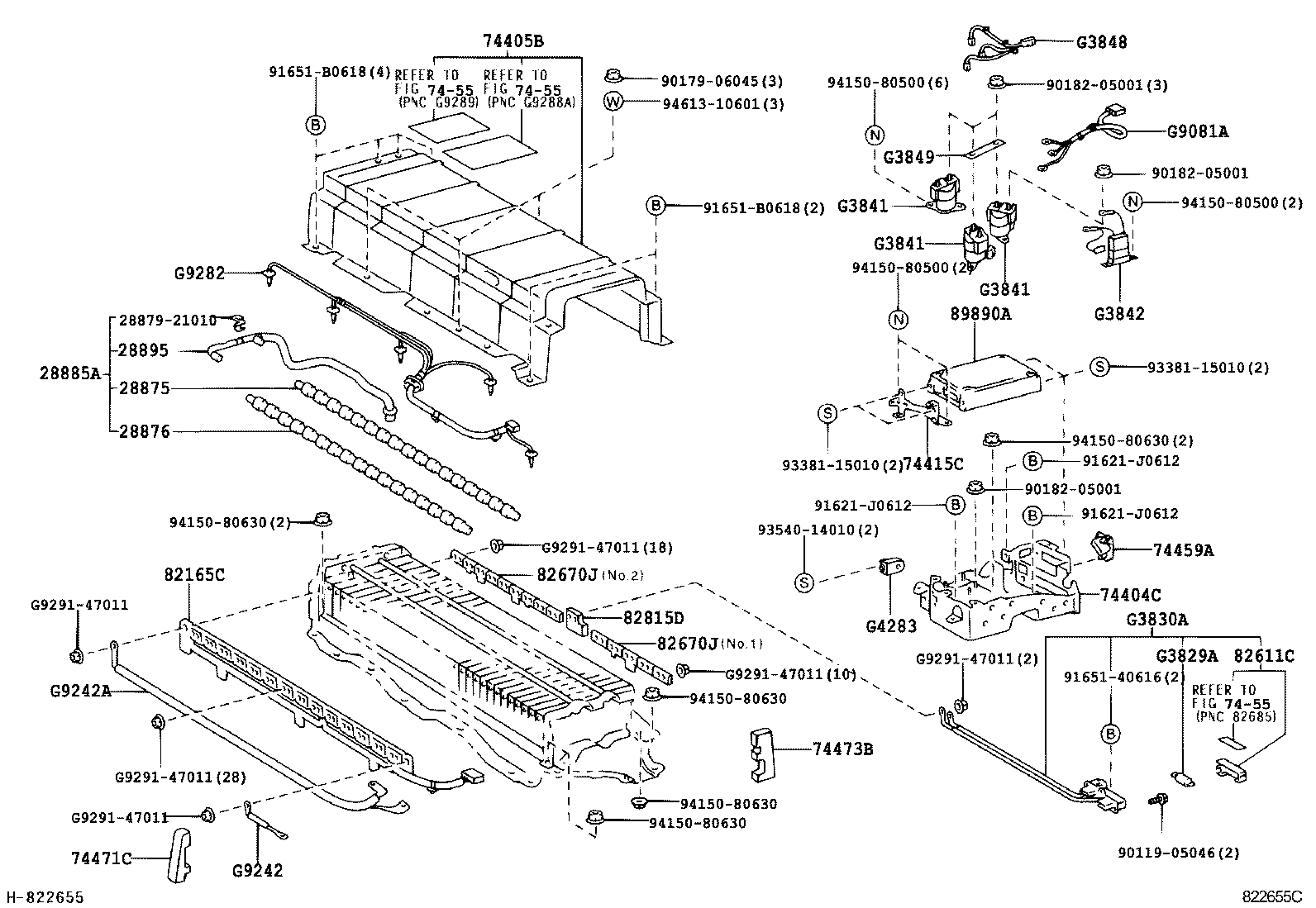

BATTERY BATTERY CABLE

HV ﾊﾞﾂﾃﾘ- ILLUST NO. 3 OF 4(0105-0308)

ESTIMA HYBRID | BATTERY BATTERY CABLE 28875 - DUCT, BATTERY INSULATOR, NO.1 28876 - DUCT, BATTERY INSULATOR, NO.2 ** Std Part 28885A - HOSE, BATTERY ROOM VENTILATION 28895 - RUBBER, BATTERY INSULATOR 74404C - CARRIER SUB-ASSY, BATTERY, UPR 74405B - COVER SUB-ASSY, BATTERY 74415C - BRACKET, BATTERY ECU 74459A - LID, BATTERY COVER, NO.2 74471C - PAD, BATTERY CLAMP 74473B - CUSHION, BATTERY CARRIER, NO.3 ** Refer Fig ** Refer Fig ** Refer Fig 82165C - WIRE, FRAME, NO.2 82611C - COVER, FUSE BLOCK 82670J - BLOCK ASSY, JUNCTION 82670J - BLOCK ASSY, JUNCTION 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 89890A - COMPUTER ASSY, BATTERY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G3829A - FUSE, ELECTRIC VEHICLE G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY G3841 - RELAY, SYSTEM VEHICLE G3841 - RELAY, SYSTEM VEHICLE G3841 - RELAY, SYSTEM VEHICLE G3842 - RESISTOR, SYSTEM MAIN G3848 - WIRE, SYSTEM MAIN RELAY G3849 - PLATE, SYSTEM MAIN RELAY G4283 - SENSOR, BATTERY CURRENT G9081A - CABLE, ELECTRIC VEHICLE CHARGER G9242 - CABLE, MAIN BATTERY G9242A - CABLE, MAIN BATTERY, NO.2 G9282 - THERMISTOR, HYBRID BATTERY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
