TOYOTA CROWN CROWN MAJESTA JKS175-AEAQH / TOOL-ENGINE-FUEL / WATER PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

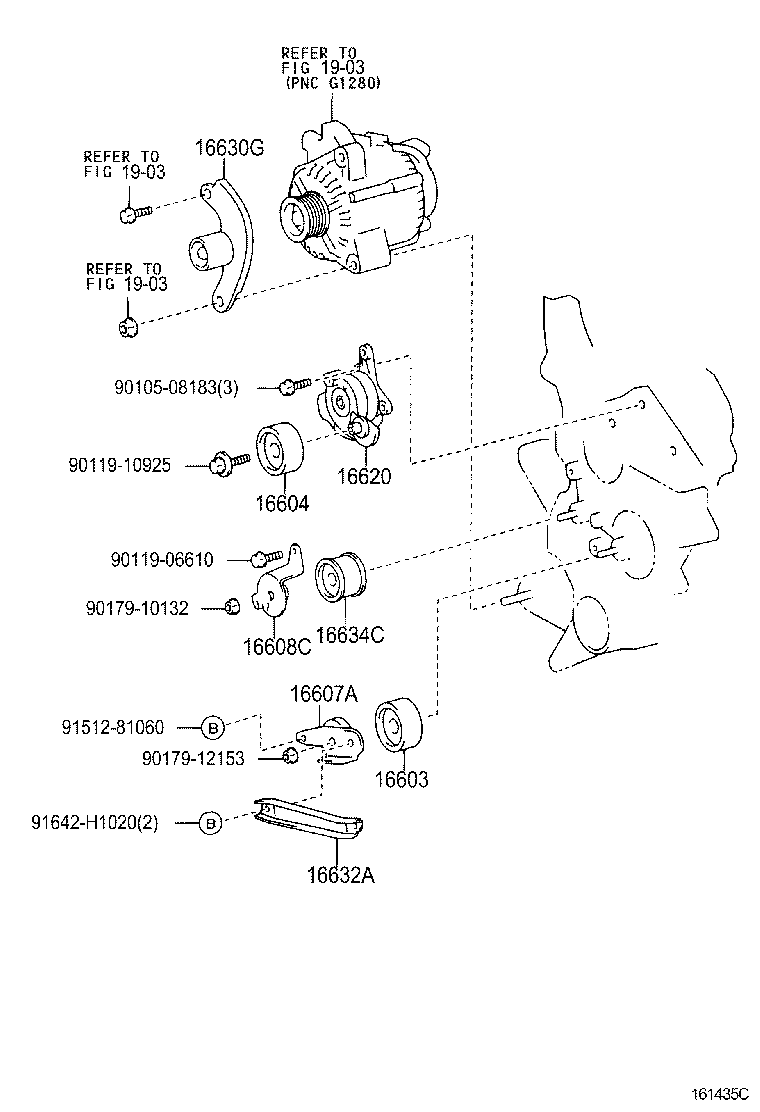

WATER PUMP

ILLUST NO. 2 OF 2(0108-0312)2JZFSE..JKS175

CROWN CROWN MAJESTA | WATER PUMP 16603 - PULLEY SUB-ASSY, IDLER, NO.1 16604 - PULLEY SUB-ASSY, IDLER, NO.2 16607A - BRACKET SUB-ASSY, IDLER PULLEY, NO.1 16608C - BRACKET SUB-ASSY, IDLER PULLEY, NO.2 16620 - TENSIONER ASSY, V-RIBBED BELT 16630G - PULLEY ASSY, IDLER 16632A - BRACKET, IDLER PULLEY, NO.2 16634C - COLLAR, IDLER PULLEY ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
