TOYOTA LAND CRUISER PRADO VZJ125W-GJPGK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

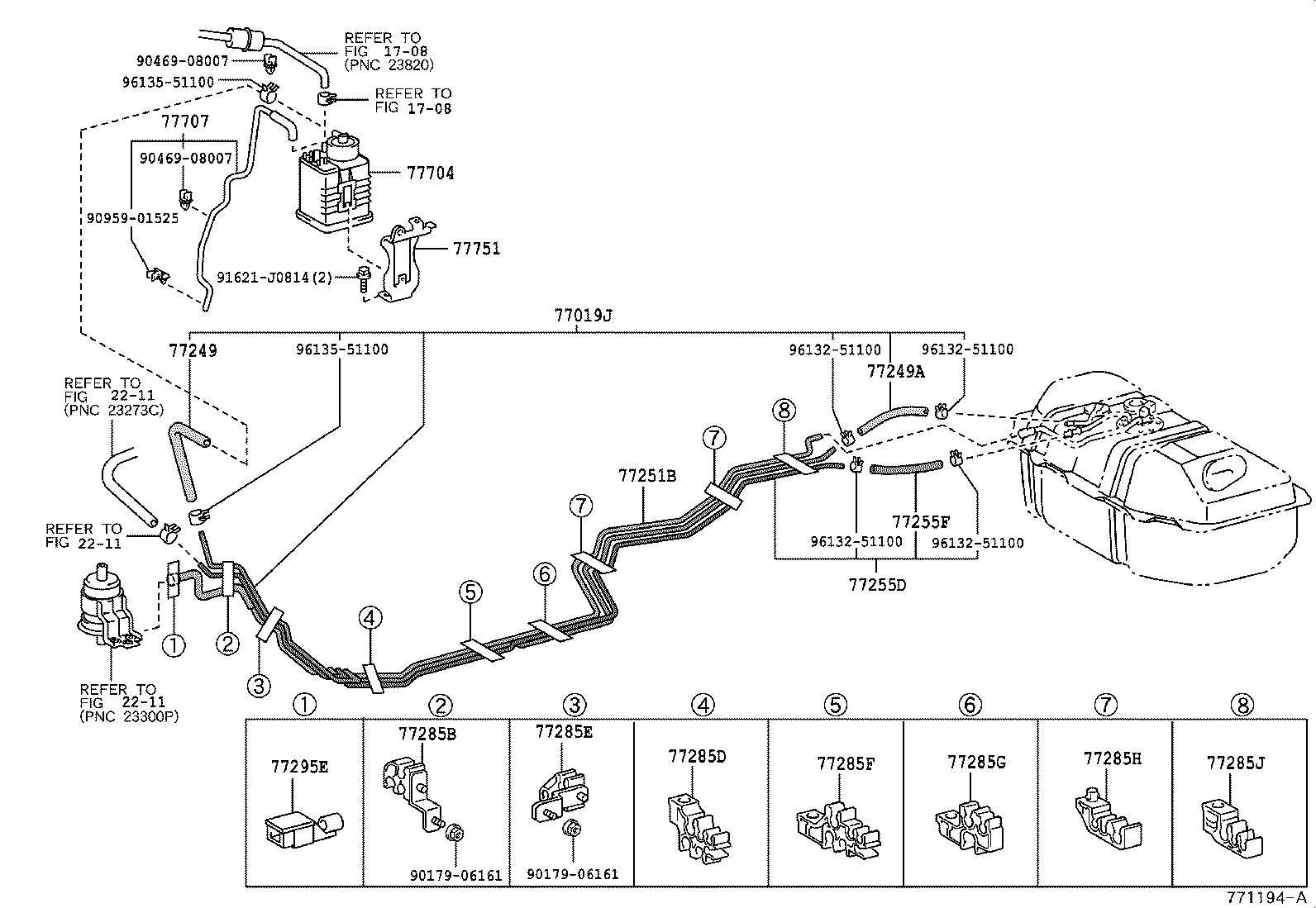

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ ILLUST NO. 2 OF 2(0209- )RZJ125,TRJ125,VZJ125

LAND CRUISER PRADO | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77249 - HOSE, FUEL EMISSION 77249A - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77285J - CLAMP, FUEL TUBE, NO.1 77295E - GROMMET, FUEL TUBE 77704 - CANISTER SUB-ASSY, CHARCOAL 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
