TOYOTA HILUX SURF RZN185W-GAPGK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

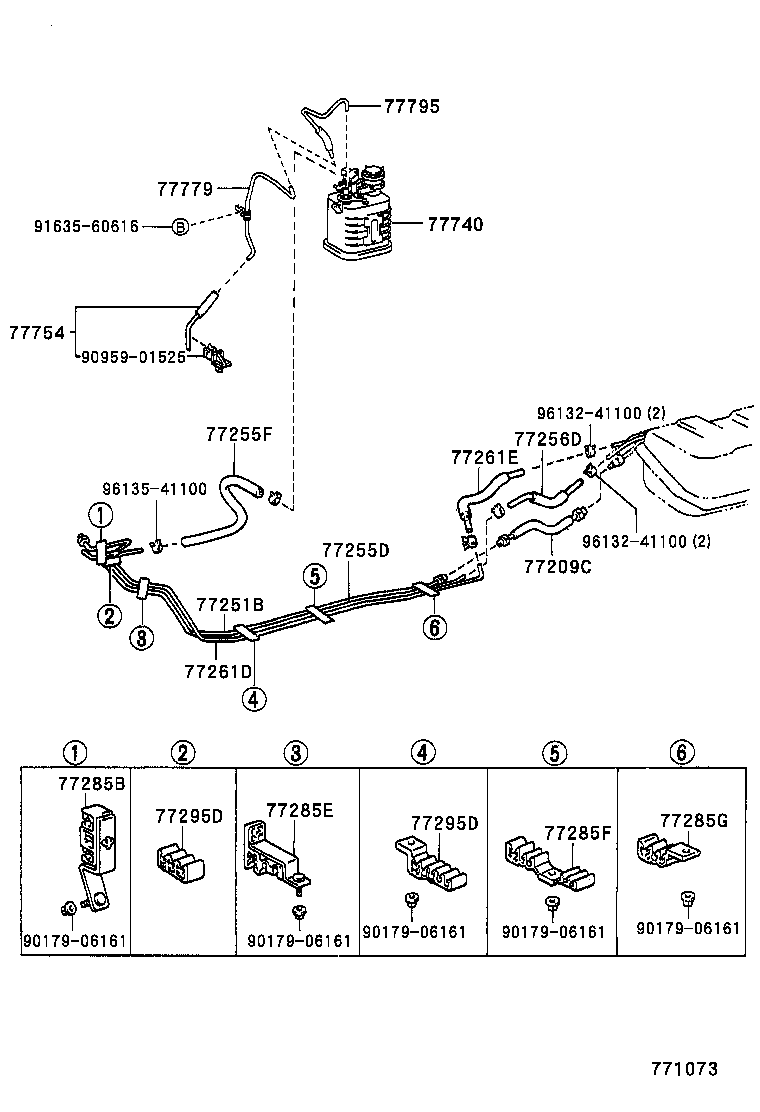

ILLUST NO. 2 OF 2(0112- )RZN18#

HILUX SURF | FUEL TANK TUBE 77209C - TUBE SUB-ASSY, FUEL TANK MAIN 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77295D - GROMMET, FUEL TUBE 77295D - GROMMET, FUEL TUBE 77740 - CANISTER ASSY, CHARCOAL 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
