TOYOTA ESTIMA HYBRID AHR10W-MREGB / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK PANEL

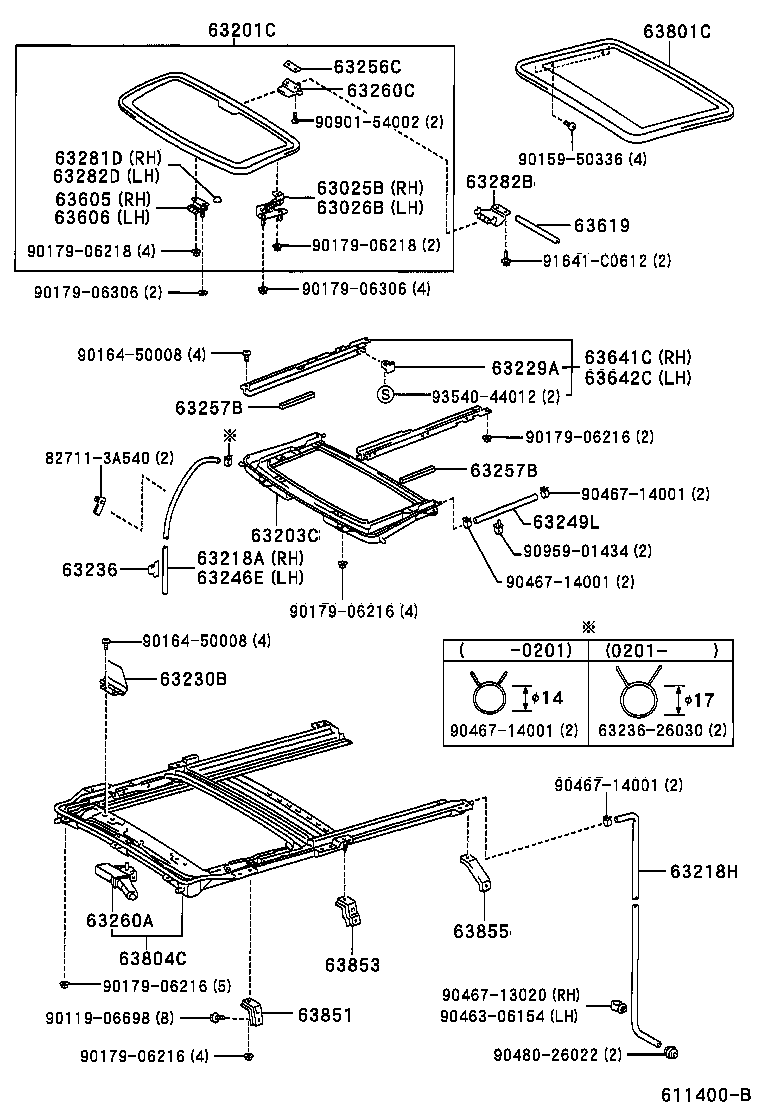

ｱﾘ(ﾂｲﾝ ﾑ-ﾝ ﾙ-ﾌ) ILLUST NO. 2 OF 3(0105-0308)

ESTIMA HYBRID | ROOF PANEL BACK PANEL 63025B - LINK SUB-ASSY, TILT ROOF, RH 63026B - LINK SUB-ASSY, TILT ROOF, LH 63201C - GLASS SUB-ASSY, TILT ROOF 63203C - HOUSING SUB-ASSY, TILT ROOF 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 63218H - HOSE, SLIDING ROOF DRAIN 63229A - STOPPER, SLIDING ROOF SUNSHADE 63230B - PANEL ASSY, ROOF WIND DEFLECTOR 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE ** Std Part 63246E - HOSE, SLIDE ROOF RAIN CHANNEL, NO.2 63249L - HOSE, TILT ROOF DRAIN 63256C - SEAL, TILT ROOF GLASS 63257B - SEAL, SLIDING ROOF 63257B - SEAL, SLIDING ROOF 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE 63260C - HANDLE ASSY, TILT ROOF LOCK 63281D - STOPPER, REMOVABLE ROOF PANEL, RH 63282B - STRIKER, TILT ROOF LOCK 63282D - STOPPER, REMOVABLE ROOF PANEL, LH 63605 - HINGE SUB-ASSY, TILT ROOF, RH 63606 - HINGE SUB-ASSY, TILT ROOF, LH 63619 - COVER, TILT ROOF PANEL 63641C - RAIL, SUNSHADE, NO.1 FRONT RH 63642C - RAIL, SUNSHADE, NO.1 FRONT LH 63801C - GLASS SUB-ASSY, REAR SLIDE ROOF 63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF 63851 - BRACKET, REAR SLIDE ROOF HOUSING, NO.1 RH 63853 - BRACKET, REAR SLIDE ROOF HOUSING, NO.2 RH 63855 - BRACKET, REAR SLIDE ROOF HOUSING, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
