TOYOTA PROGRES JCG11-AEAZH / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

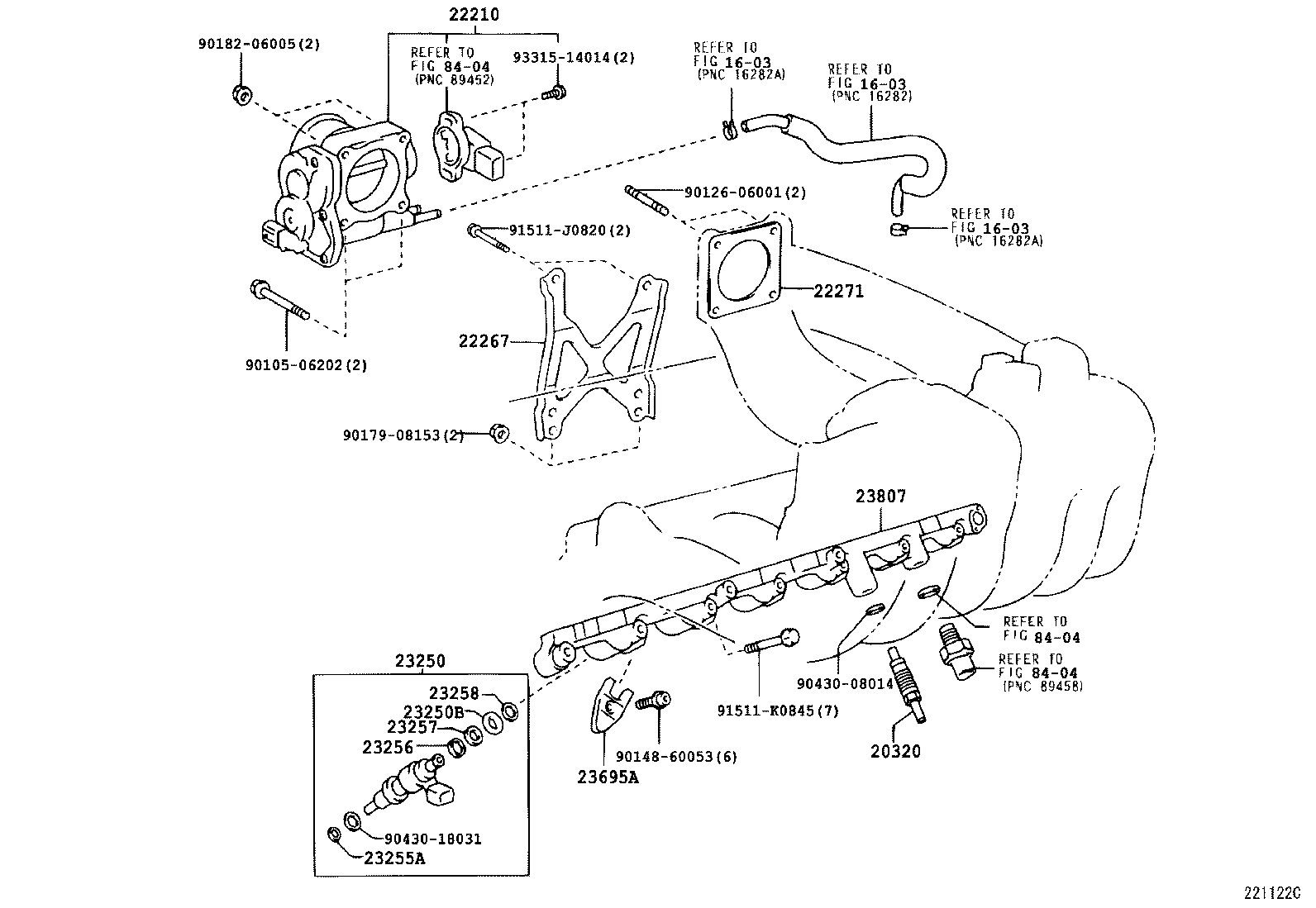

ILLUST NO. 1 OF 3(0104-0108)2JZFSE

PROGRES | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig ** Refer Fig 20320 - VALVE ASSY, FUEL RELIEF 22210 - BODY ASSY, THROTTLE 22267 - BRACKET, THROTTLE BODY 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23255A - SEAL, FUEL INJECTOR 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 23695A - CLAMP, NOZZLE HOLDER 23807 - PIPE SUB-ASSY, FUEL DELIVERY ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
