TOYOTA LAND CRUISER VAN FJ62V-MRCH4 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

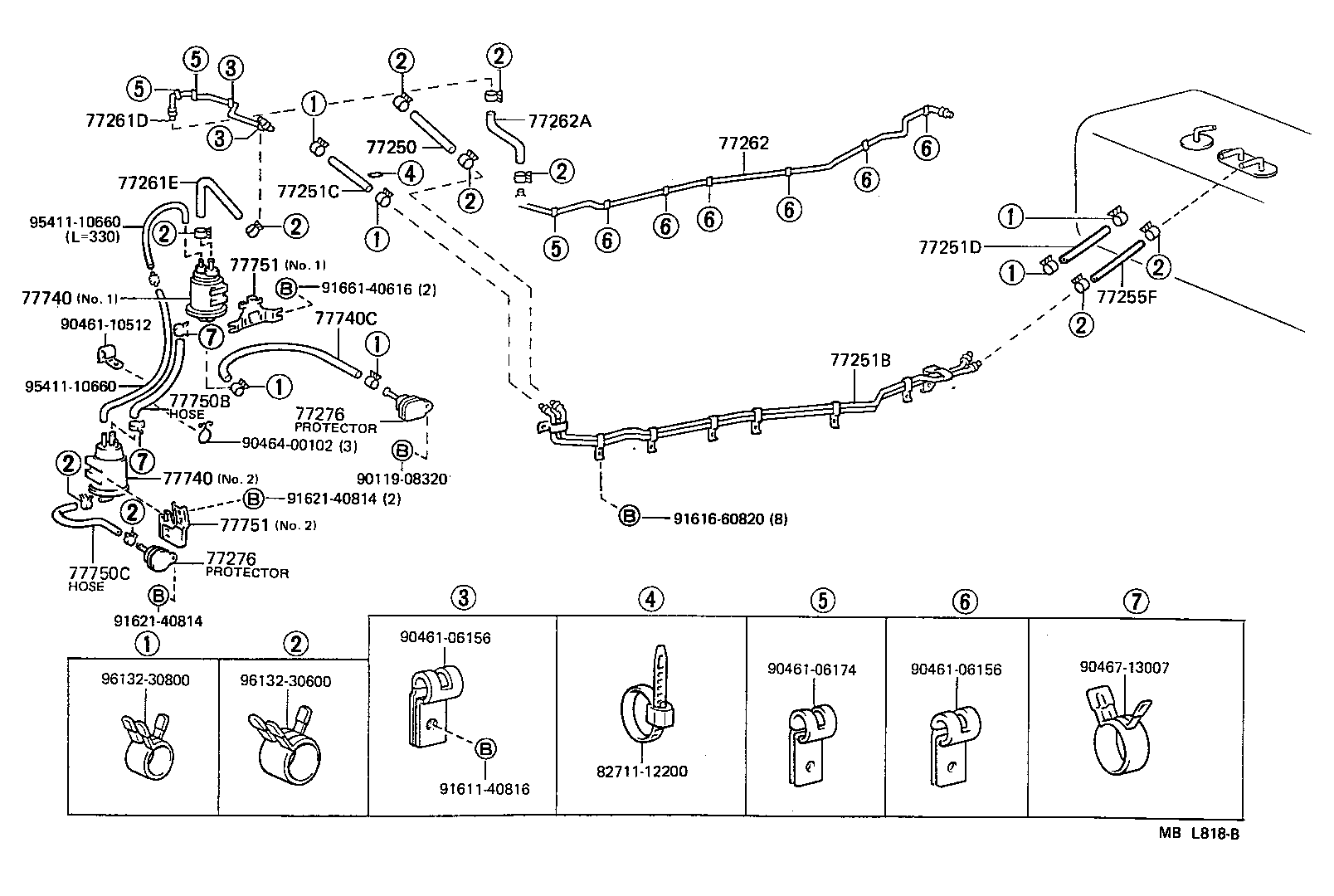

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8708- )IV4

LAND CRUISER VAN | FUEL TANK TUBE 77250 - HOSE ASSY, FUEL RETURN 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77262 - TUBE, FUEL EMISSION, NO.2 77262A - HOSE, FUEL, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) 77276 - PROTECTOR, FUEL HOSE 77276 - PROTECTOR, FUEL HOSE 77740 - CANISTER ASSY, CHARCOAL 77740 - CANISTER ASSY, CHARCOAL 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) 77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
