TOYOTA MARK 2 YX72-XEHNP / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

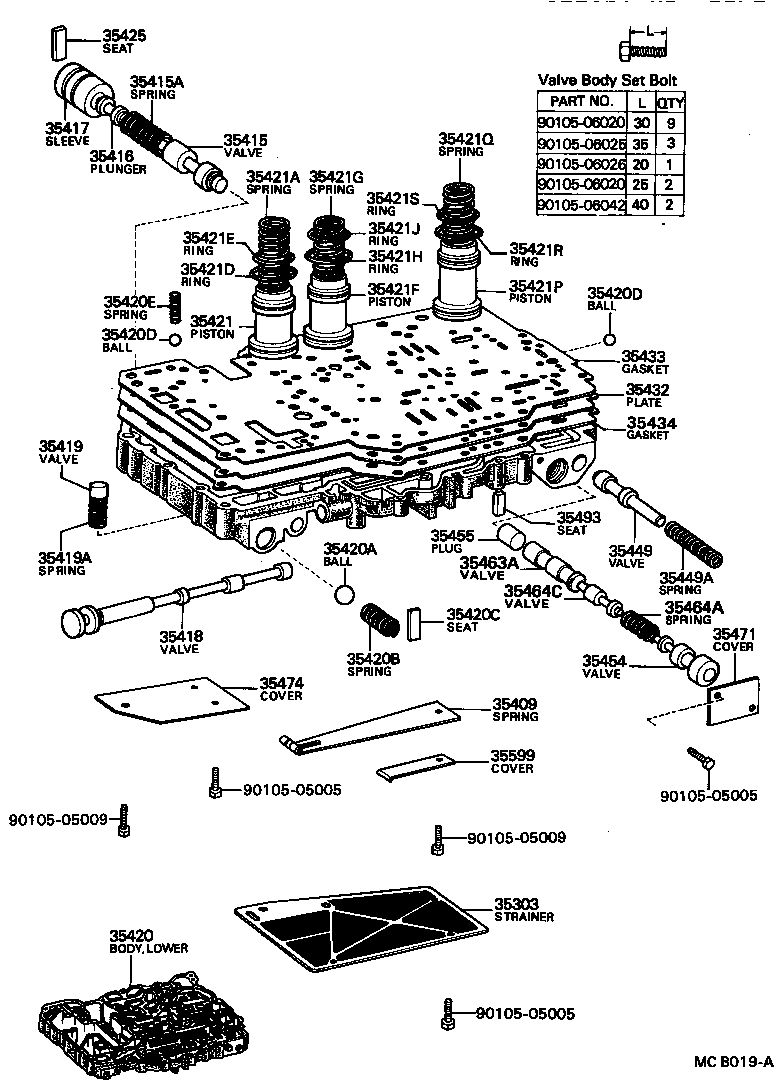

ILLUST NO. 2 OF 2(8408- )3FC

MARK 2 | VALVE BODY OIL STRAINER ATM 35303 - STRAINER SUB-ASSY, OIL 35409 - SPRING SUB-ASSY, MANUAL DETENT 35415 - VALVE, PRESSURE REGULATOR 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417 - SLEEVE, PRESSURE REGULATOR VALVE 35418 - VALVE, MANUAL 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35420 - BODY ASSY, LOWER VALVE 35420A - BALL (FOR PRESSURE RELIEF) 35420B - SPRING (FOR PRESSURE RELIEF) 35420C - SEAT (FOR PRESSURE RELIEF) 35420D - BALL (FOR LOWER VALVE BODY) 35420D - BALL (FOR LOWER VALVE BODY) 35420E - SPRING (FOR LOWER VALVE BODY) 35421 - PISTON, ACCUMULATOR, NO.1 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) 35421D - RING (FOR ACCUMULATOR PISTON NO.1) 35421E - RING (FOR ACCUMULATOR PISTON NO.1) 35421F - PISTON, ACCUMULATOR, NO.2 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421H - RING (FOR ACCUMULATOR PISTON NO.2) 35421J - RING (FOR ACCUMULATOR PISTON NO.2) 35421P - PISTON, ACCUMULATOR, NO.3 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) 35421R - RING (FOR ACCUMULATOR PISTON NO.3) 35421S - RING (FOR ACCUMULATOR PISTON NO.3) 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE 35432 - PLATE, VALVE BODY, NO.1 35433 - GASKET, VALVE BODY, NO.1 35434 - GASKET, VALVE BODY, NO.2 35449 - VALVE, SEQUENCE 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) 35454 - VALVE, LOW COAST SHIFT 35455 - PLUG, 1-2 SHIFT VALVE LOW 35463A - VALVE, 1-2 SHIFT, LOWER 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464C - VALVE, 1-2 SHIFT, UPPER 35471 - COVER, VALVE BODY, NO.1 35474 - COVER, VALVE BODY, NO.4 35493 - SEAT, SHIFT VALVE SPRING 35599 - COVER, MANUAL DETENT SPRING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
