TOYOTA DYNA TOYOACE YU60-MDDTJ3 / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

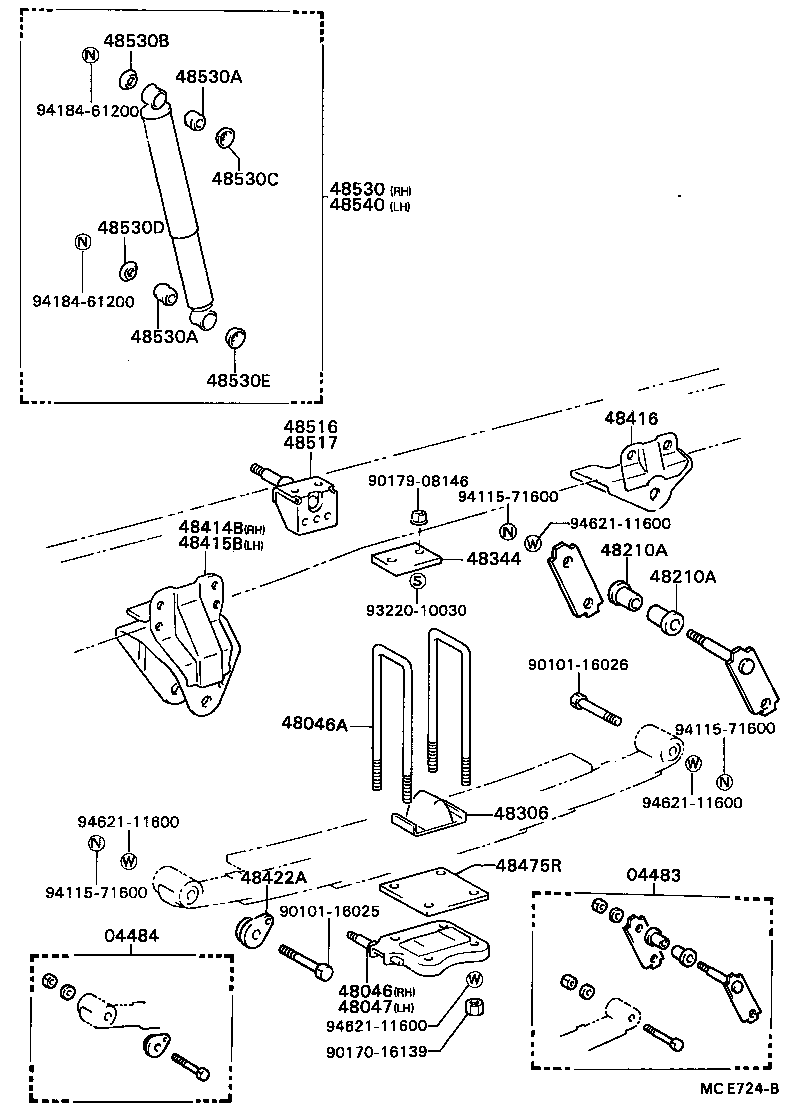

ILLUST NO. 1 OF 2(8708- )YU60..T3..WT

DYNA TOYOACE | REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING 04484 - PIN KIT, REAR SPRING 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48306 - BUMPER SUB-ASSY, REAR SPRING 48344 - STOPPER, BUMPER, REAR 48414B - BRACKET, SPRING, NO.3 RH 48415B - BRACKET, SPRING, NO.3 LH 48416 - BRACKET, SPRING, NO.4 48422A - SUPPORT, REAR SPRING PIN 48475R - PLATE, DISTANCE(FOR REAR) 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48540 - ABSORBER ASSY, SHOCK, REAR LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
