TOYOTA DYNA TOYOACE BU70V-MDE / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

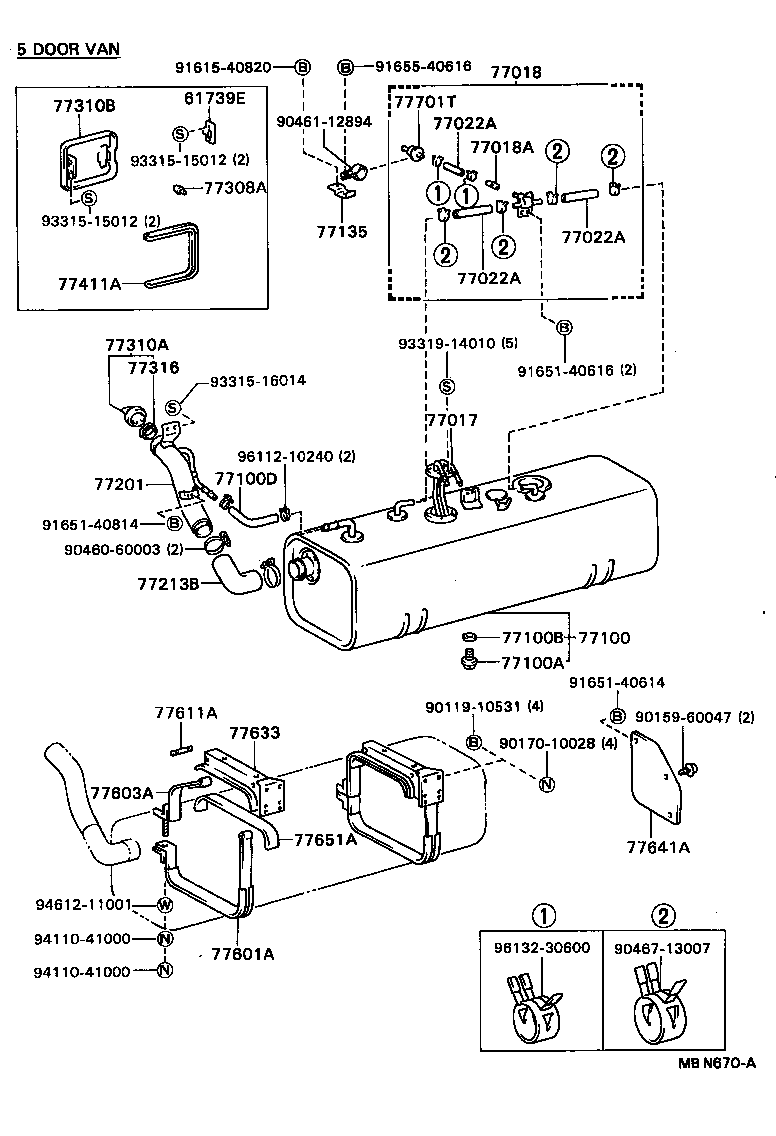

FUEL TANK TUBE

ILLUST NO. 1 OF 2(8708- )BU70..03S,06S

DYNA TOYOACE | FUEL TANK TUBE 61739E - STOPPER, FUEL INLET COVER 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE 77018A - ORIFICE, FUEL VAPOUR 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77135 - BRACKET, CHECK VALVE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77213B - HOSE, FUEL TANK TO FILLER PIPE 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77310A - CAP ASSY, FUEL TANK 77310B - DOOR ASSY, FUEL INLET, RH 77316 - GASKET, FUEL TANK CAP 77411A - PROTECTOR, FUEL INLET BOX 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 77611A - PIN (FOR FUEL TANK BAND) 77633 - STAY, FUEL TANK 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
