TOYOTA TOWN MASTERACE V WG YR36G-PBZE / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

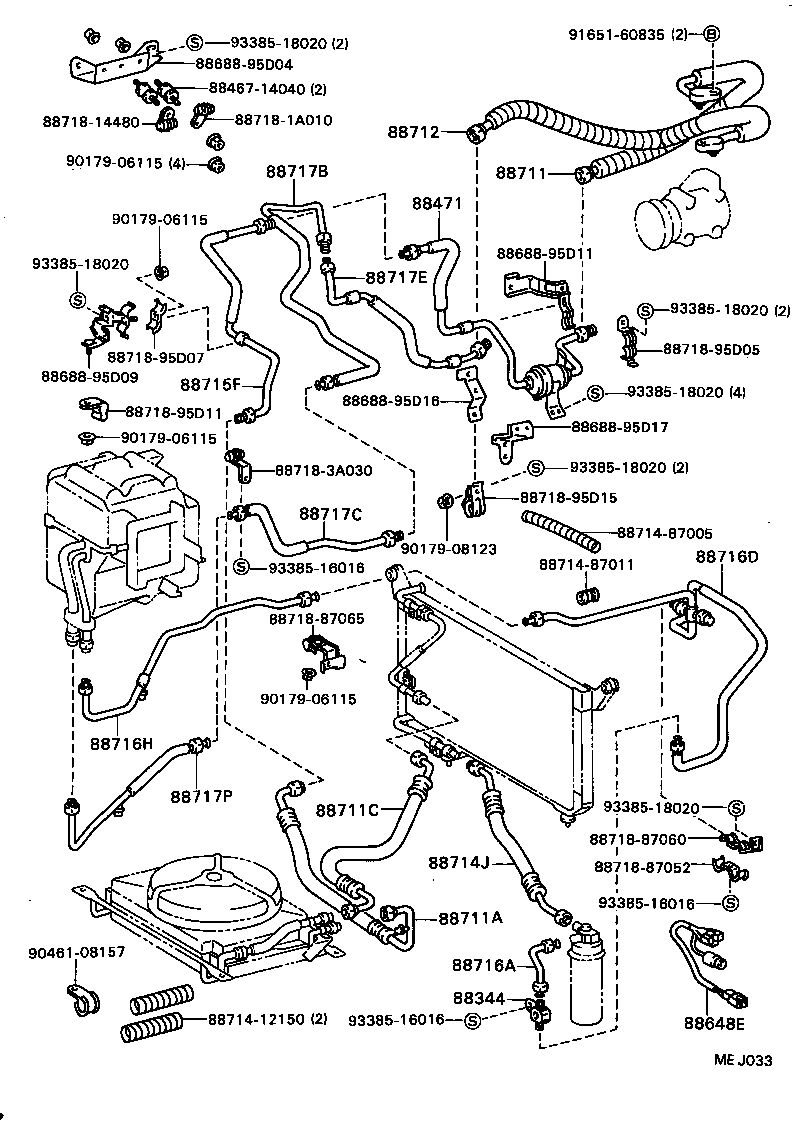

ILLUST NO. 2 OF 3(8608- )YR36

TOWN MASTERACE V WG | HEATING AIR CONDITIONING COOLER PIPING 88344 - GLASS SUB-ASSY, SIGHT ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88648E - WIRING, COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 ** Std Part ** Std Part ** Std Part 88714J - HOSE, COOLER REFRIGERANT LIQUID, NO.3 88715F - PIPE, COOLER REFRIGERANT DISCHARGE, F 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716D - PIPE, COOLER REFRIGERANT LIQUID, D 88716H - PIPE, COOLER REFRIGERANT LIQUID, H 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C 88717E - PIPE, COOLER REFRIGERANT SUCTION, E 88717P - PIPE, COOLER REFRIGERANT SUCTION, P ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
