TOYOTA CRESTA LX70Y-YEMRS / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

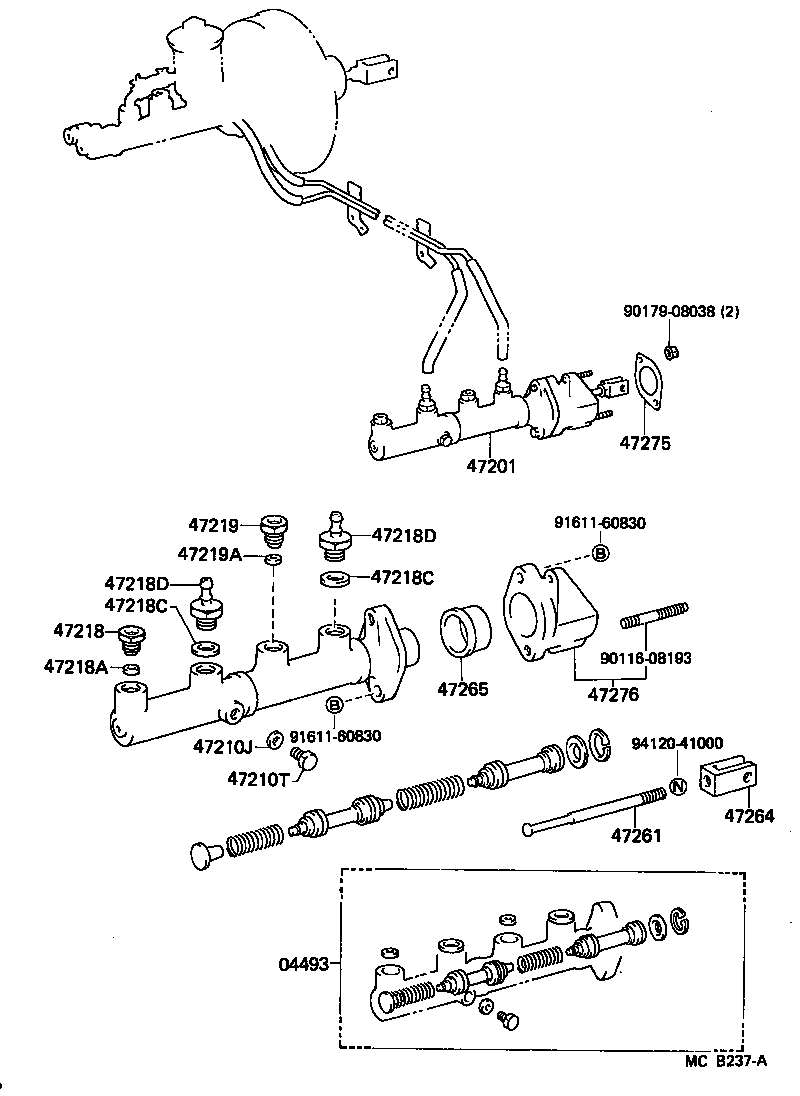

BRAKE MASTER CYLINDER

ILLUST NO. 2 OF 2(8408- )KYO

CRESTA | BRAKE MASTER CYLINDER 04493 - CYLINDER KIT, BRAKE MASTER 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47210J - GASKET(FOR MASTER CYLINDER) 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47218 - PLUG, MASTER CYLINDER FLUID OUTLET 47218A - GASKET(FOR FLUID OUTLET PLUG) 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) 47261 - ROD, MASTER CYLINDER PUSH 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47265 - BOOT, MASTER CYLINDER 47275 - GASKET, BRAKE MASTER CYLINDER 47276 - BRACKET, BRAKE MASTER CYLINDER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
