TOYOTA DYNA BU22V-QRG / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

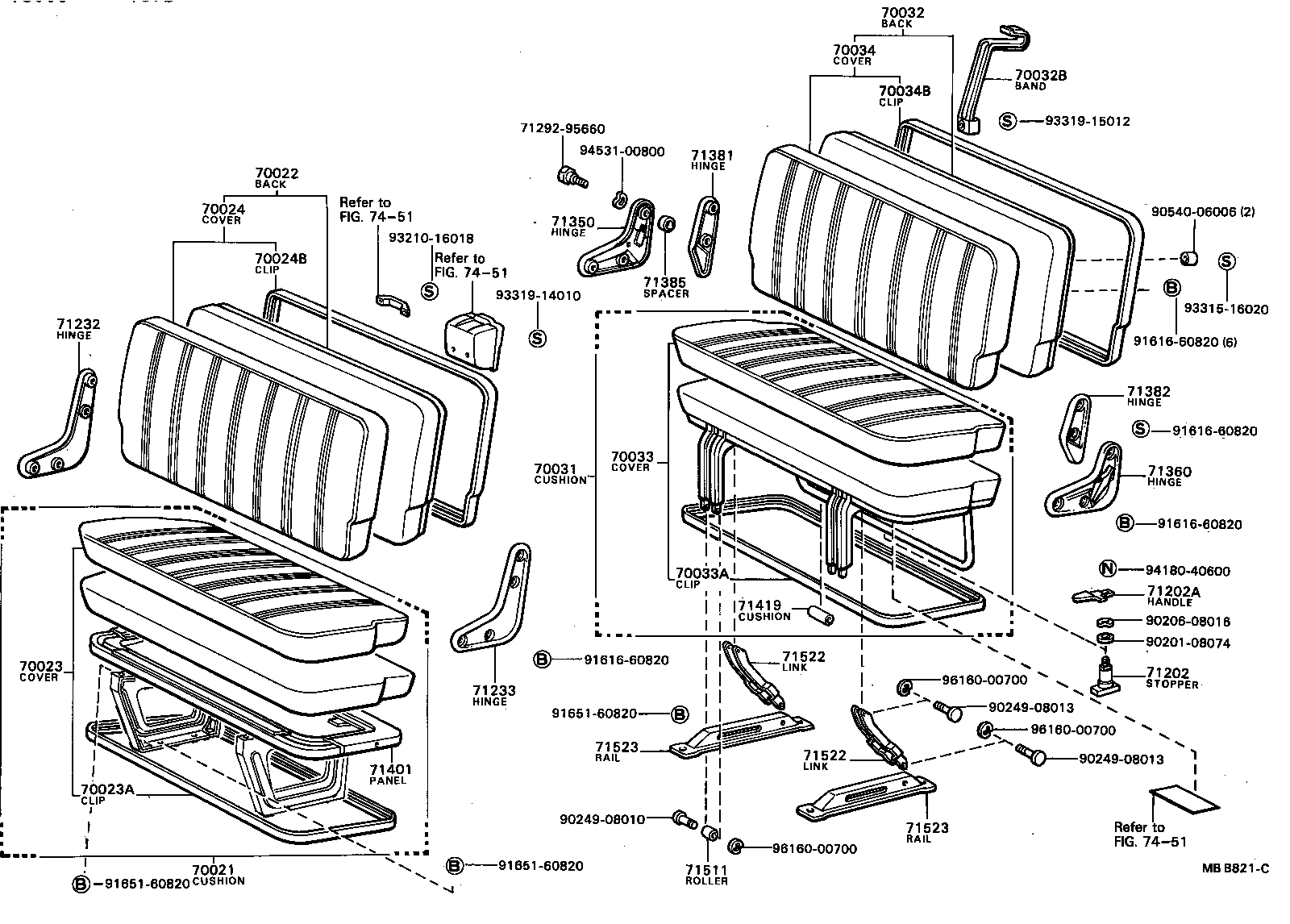

SEAT SEAT TRACK

(8008- )09S

DYNA | SEAT SEAT TRACK 70021 - CUSHION ASSY, NO.2 SEAT 70022 - BACK ASSY, NO.2 SEAT 70023 - COVER ASSY, NO.2 SEAT CUSHION 70023A - CLIP, LEATHER (FOR SEAT CUSHION COVER) 70024 - COVER ASSY, NO.2 SEAT BACK 70024B - CLIP, LEATHER(FOR SEAT BACK COVER) 70031 - CUSHION ASSY, NO.3 SEAT 70032 - BACK ASSY, NO.3 SEAT 70032B - BAND, REAR SEAT BACK NO.2 70033 - COVER ASSY, NO.3 SEAT CUSHION 70033A - CLIP, LEATHER (FOR SEAT CUSHION COVER) 70034 - COVER ASSY, NO.3 SEAT BACK 70034B - CLIP, LEATHER(FOR SEAT BACK COVER) 71202 - STOPPER SUB-ASSY, REAR SEAT LEG 71202A - HANDLE, REAR SEAT LEG STOPPER 71232 - HINGE, REAR SEAT BACK FRAME, RH 71233 - HINGE, REAR SEAT BACK FRAME, LH ** Std Part 71350 - LINK ASSY, REAR SEAT BACK CUSHION, RH 71360 - LINK ASSY, REAR SEAT BACK CUSHION, LH 71381 - HINGE, REAR SEAT BACK STOP, NO.1 71382 - HINGE, REAR SEAT BACK STOP, NO.2 71385 - SPACER, REAR SEAT HINGE 71401 - PANEL SUB-ASSY, REAR NO.1, SEAT CUSHION 71419 - CUSHION (FOR REAR SEAT LEG) 71511 - ROLLER, REAR SEAT LEG 71522 - LINK, REAR SEAT 71522 - LINK, REAR SEAT 71523 - RAIL, REAR SEAT 71523 - RAIL, REAR SEAT ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
