TOYOTA SOARER MZ10-HCPNT / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

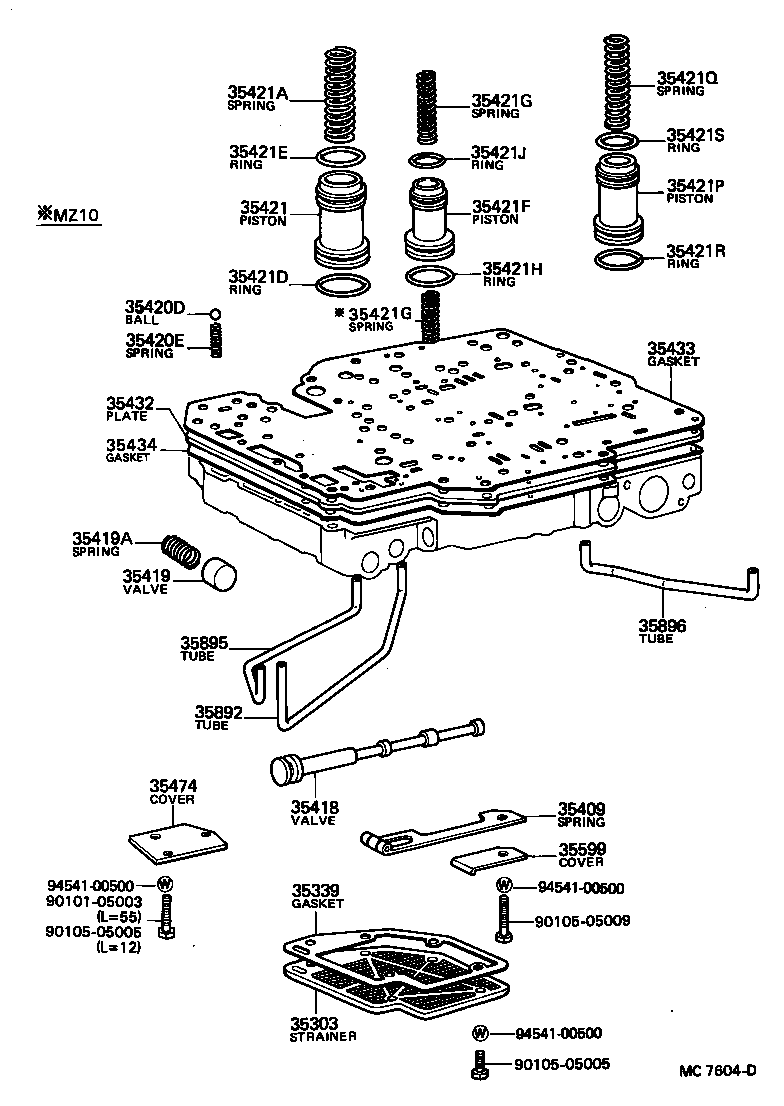

ILLUST NO. 2 OF 3(8102-8203)MZ1#..4FC ; (8203-8401)MZ10

SOARER | VALVE BODY OIL STRAINER ATM 35303 - STRAINER SUB-ASSY, OIL 35339 - GASKET, OIL STRAINER 35409 - SPRING SUB-ASSY, MANUAL DETENT 35418 - VALVE, MANUAL 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35420D - BALL (FOR LOWER VALVE BODY) 35420E - SPRING (FOR LOWER VALVE BODY) 35421 - PISTON, ACCUMULATOR, NO.1 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) 35421D - RING (FOR ACCUMULATOR PISTON NO.1) 35421E - RING (FOR ACCUMULATOR PISTON NO.1) 35421F - PISTON, ACCUMULATOR, NO.2 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) 35421H - RING (FOR ACCUMULATOR PISTON NO.2) 35421J - RING (FOR ACCUMULATOR PISTON NO.2) 35421P - PISTON, ACCUMULATOR, NO.3 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) 35421R - RING (FOR ACCUMULATOR PISTON NO.3) 35421S - RING (FOR ACCUMULATOR PISTON NO.3) 35432 - PLATE, VALVE BODY, NO.1 35433 - GASKET, VALVE BODY, NO.1 35434 - GASKET, VALVE BODY, NO.2 35474 - COVER, VALVE BODY, NO.4 35599 - COVER, MANUAL DETENT SPRING 35892 - TUBE, OVERDRIVE BRAKE 35895 - TUBE, FRONT CLUTCH APPLY 35896 - TUBE, OVERDRIVE SWITCH APPLY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
