TOYOTA MARK 2 SX60-XEMRS / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

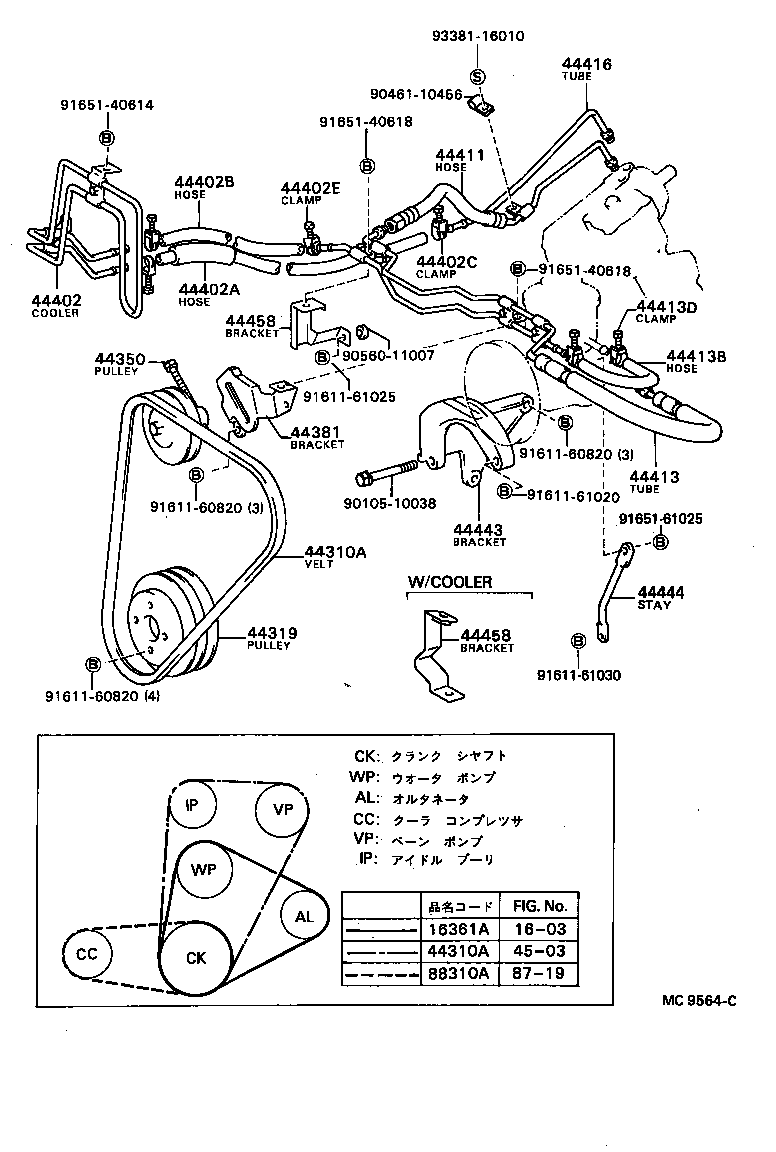

POWER STEERING TUBE

(8302- )SX60..LPG

MARK 2 | POWER STEERING TUBE ** Refer Fig 16361A - BELT, V(FOR FAN & ALTERNATOR) 44310A - BELT, V(FOR VANE PUMP) 44310A - BELT, V(FOR VANE PUMP) 44319 - PULLEY, VANE PUMP DRIVE 44350 - PULLEY ASSY, POWER STEERING IDLE 44381 - BRACKET, POWER STEERING IDLE PULLEY 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 44402A - HOSE, POWER STEERING OIL COOLER INLET 44402B - HOSE, POWER STEERING OIL COOLER OUTLET 44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE 44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE 44411 - HOSE, PRESSURE FEED 44413 - TUBE, PRESSURE FEED, NO.1 44413B - HOSE(FOR RESERVOIR TANK INLET) 44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE) 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44443 - BRACKET, PUMP 44444 - STAY, PUMP, REAR 44458 - BRACKET, TUBE SUPPORT, NO.2 44458 - BRACKET, TUBE SUPPORT, NO.2 ** Refer Fig ** Refer Fig 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
