TOYOTA HIACE QUICK DELIVERY LH24HV-QDLT / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

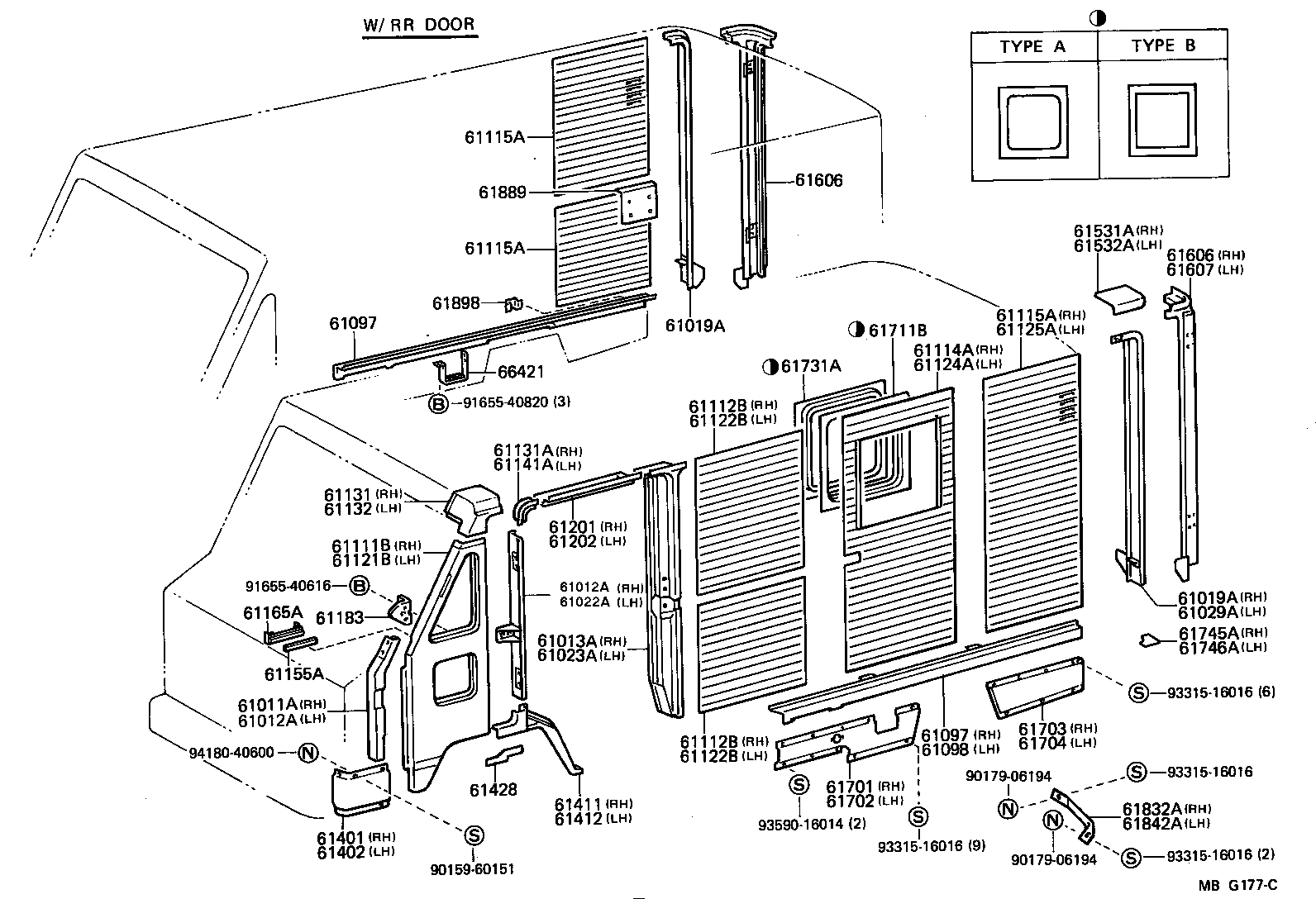

SIDE MEMBER

ILLUST NO. 2 OF 2(8205- )

HIACE QUICK DELIVERY | SIDE MEMBER 61011A - PILLAR SUB-ASSY, NO.1 RH 61012A - PILLAR SUB-ASSY, NO.2 RH 61012A - PILLAR SUB-ASSY, NO.2 RH 61013A - PILLAR SUB-ASSY, NO.3 RH 61019A - PILLAR SUB-ASSY, NO.9 RH 61019A - PILLAR SUB-ASSY, NO.9 RH 61022A - PILLAR SUB-ASSY, NO.2 LH 61023A - PILLAR SUB-ASSY, NO.3 LH 61029A - PILLAR SUB-ASSY, NO.9 LH 61097 - RAIL SUB-ASSY, NO.5 LOWER OUTER, RH 61097 - RAIL SUB-ASSY, NO.5 LOWER OUTER, RH 61098 - RAIL SUB-ASSY, NO.5 LOWER OUTER, LH 61111B - PANEL, NO.1 SIDE, RH 61112B - PANEL, NO.2 SIDE, RH 61112B - PANEL, NO.2 SIDE, RH 61114A - PANEL, NO.3 SIDE, RH 61115A - PANEL, NO.4 SIDE, RH 61115A - PANEL, NO.4 SIDE, RH 61115A - PANEL, NO.4 SIDE, RH 61121B - PANEL, NO.1 SIDE, LH 61122B - PANEL, NO.2 SIDE, LH 61122B - PANEL, NO.2 SIDE, LH 61124A - PANEL, NO.3 SIDE, LH 61125A - PANEL, NO.4 SIDE, LH 61131 - PILLAR, FRONT BODY, UPPER OUTER RH 61131A - STRENGTH, SIDE PANEL, NO.1 RH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61141A - STRENGTH, SIDE PANEL, NO.1 LH 61155A - CUSHION, SIDE PANEL STIFFENER, NO.5 61165A - STIFFENER, SIDE PANEL, UPPER NO.5 61183 - BRACKET, INSTRUMENT PANEL SIDE 61201 - RAIL SUB-ASSY, ROOF SIDE, RH 61202 - RAIL SUB-ASSY, ROOF SIDE, LH 61401 - PANEL SUB-ASSY, FENDER, RH 61402 - PANEL SUB-ASSY, FENDER, LH 61411 - PANEL, ROCKER, OUTER RH 61412 - PANEL, ROCKER, OUTER LH 61428 - GUSSET, ROCKER OUTER PANEL 61531A - PANEL, BACK CORNER, OUTER RH 61532A - PANEL, BACK CORNER, OUTER LH 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH 61701 - SKIRT SUB-ASSY, QUARTER PANEL, FRONT RH 61702 - SKIRT SUB-ASSY, QUARTER PANEL, FRONT LH 61703 - SKIRT SUB-ASSY, QUARTER PANEL, REAR RH 61704 - SKIRT SUB-ASSY, QUARTER PANEL, REAR LH 61711B - PANEL, SIDE WINDOW, OUTER RH 61731A - PANEL, SIDE WINDOW, INNER RH 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH 61832A - STAY, SIDE PANEL, NO.2 RH 61842A - STAY, SIDE PANEL, NO.2 LH 61889 - RETAINER, SIDE PANEL 61898 - BRACKET, LOWER RAIL BACK DOOR STOPPER 66421 - STEP, SIDE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
