TOYOTA DYNA BU45-MRGTY3 / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

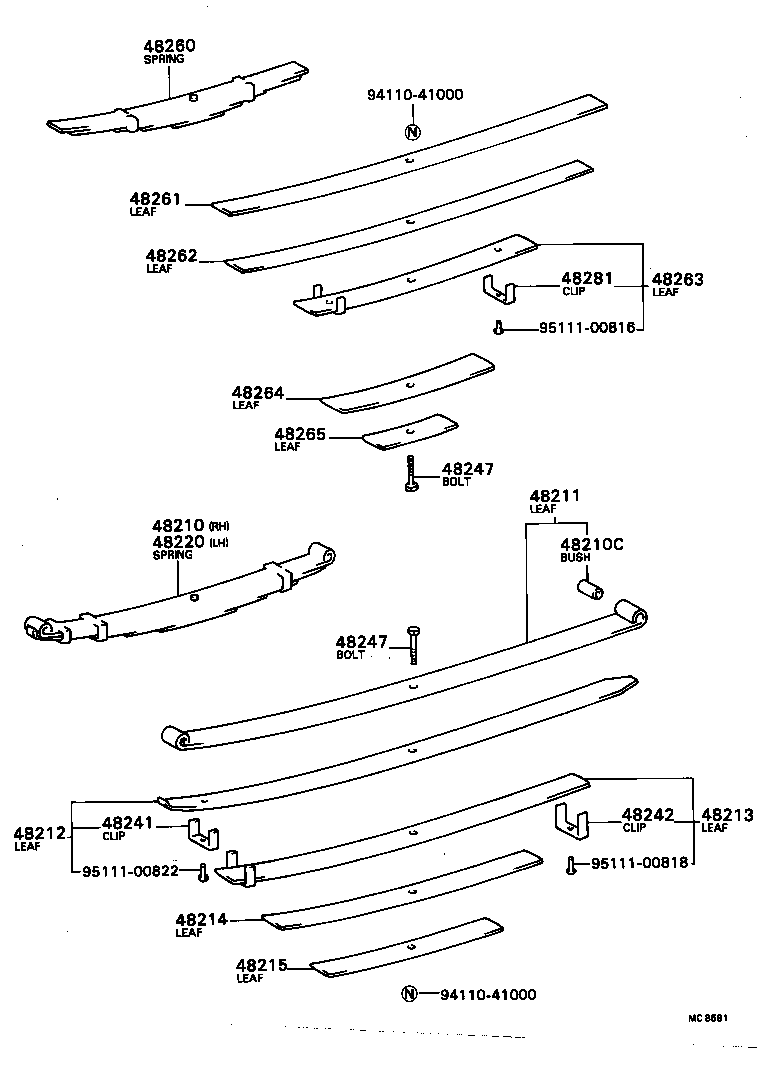

ILLUST NO. 2 OF 2(8204- )BU45,46

DYNA | REAR SPRING SHOCK ABSORBER 48210 - SPRING ASSY, REAR RH 48210C - BUSH(FOR REAR SPRING LEAF) 48211 - LEAF, REAR SPRING, NO.1 48212 - LEAF, REAR SPRING, NO.2 48213 - LEAF, REAR SPRING, NO.3 48214 - LEAF, REAR SPRING, NO.4 48215 - LEAF, REAR SPRING, NO.5 48220 - SPRING ASSY, REAR LH 48241 - CLIP, REAR SPRING, NO.1 48242 - CLIP, REAR SPRING, NO.2 48247 - BOLT, REAR SPRING, CENTER 48247 - BOLT, REAR SPRING, CENTER 48260 - SPRING ASSY, REAR HELPER 48261 - LEAF, REAR HELPER SPRING, NO.1 48262 - LEAF, REAR HELPER SPRING, NO.2 48263 - LEAF, REAR HELPER SPRING, NO.3 48264 - LEAF, REAR HELPER SPRING, NO.4 48265 - LEAF, REAR HELPER SPRING, NO.5 48281 - CLIP, REAR HELPER SPRING, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
