TOYOTA CROWN LS117V-SXHDSY / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

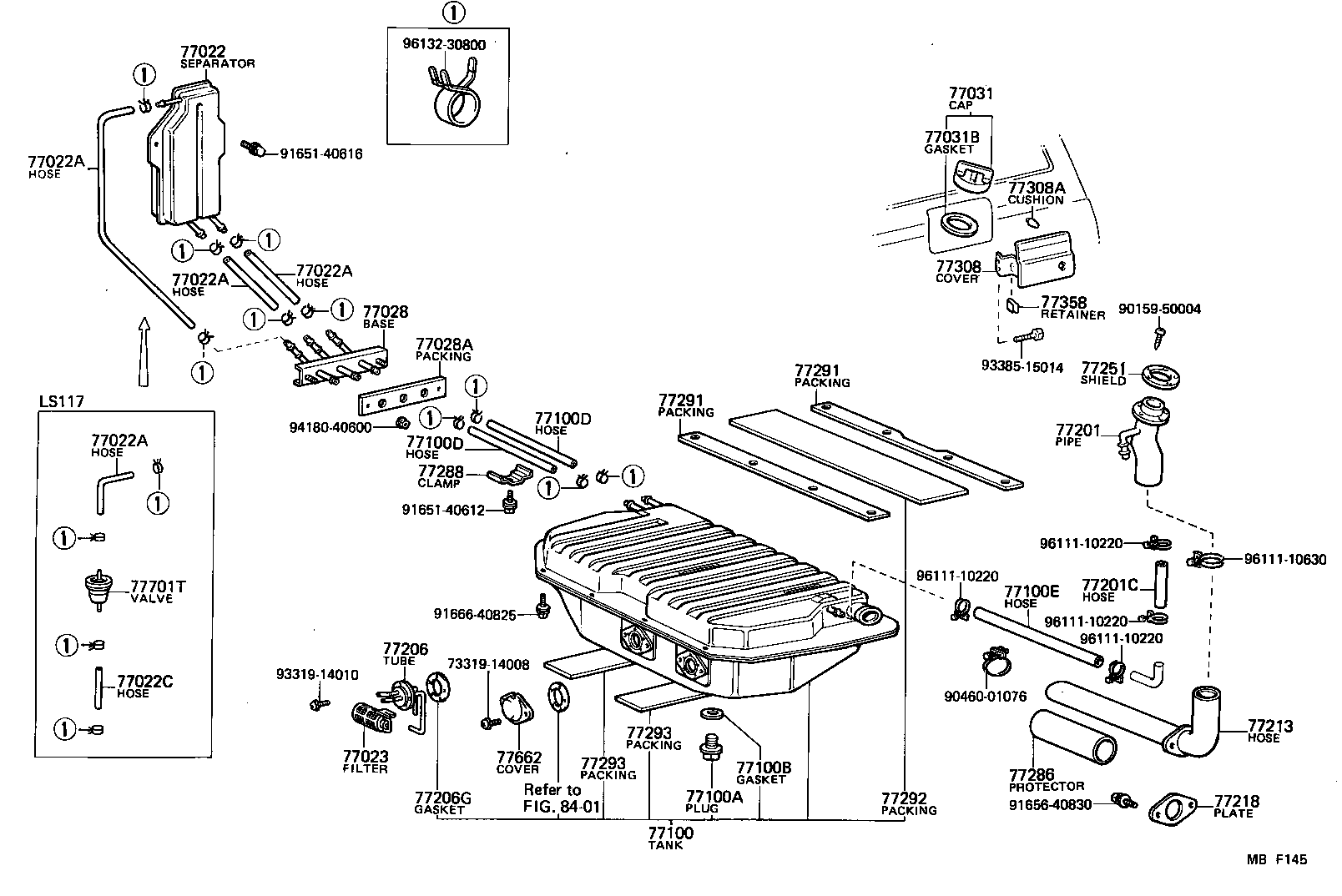

ILLUST NO. 1 OF 2(8302- )GS117,LS117

CROWN | FUEL TANK TUBE ** Std Part 77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE 77028 - BASE SUB-ASSY, BREATHER JOINT, NO.1 77028A - PACKING, NO.1 (FOR BREATHER JOINT, NO.1) 77031 - CAP ASSY, FUEL TANK 77031B - GASKET (FOR FUEL TANK CAP) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) 77100E - HOSE, FUEL, NO.2(FOR FUEL TANK) 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201C - HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE) 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) 77213 - HOSE, FUEL TANK SUB INLET 77218 - PLATE, FUEL INLET PIPE SET 77251 - SHIELD, FUEL TANK, INLET, NO.1 77286 - PROTECTOR, FUEL TANK INLET PIPE 77288 - CLAMP, BREATHER HOSE 77291 - PACKING, FUEL TANK SUPPORT, UPPER 77291 - PACKING, FUEL TANK SUPPORT, UPPER 77292 - PACKING, FUEL TANK, CENTER 77293 - PACKING, FUEL TANK, LOWER 77293 - PACKING, FUEL TANK, LOWER 77308 - COVER SUB-ASSY, FUEL INLET BOX 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77358 - RETAINER, FUEL INLET CUSHION 77662 - COVER, FUEL TANK GAGE 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
