TOYOTA TOYOACE JY30D-QDT / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

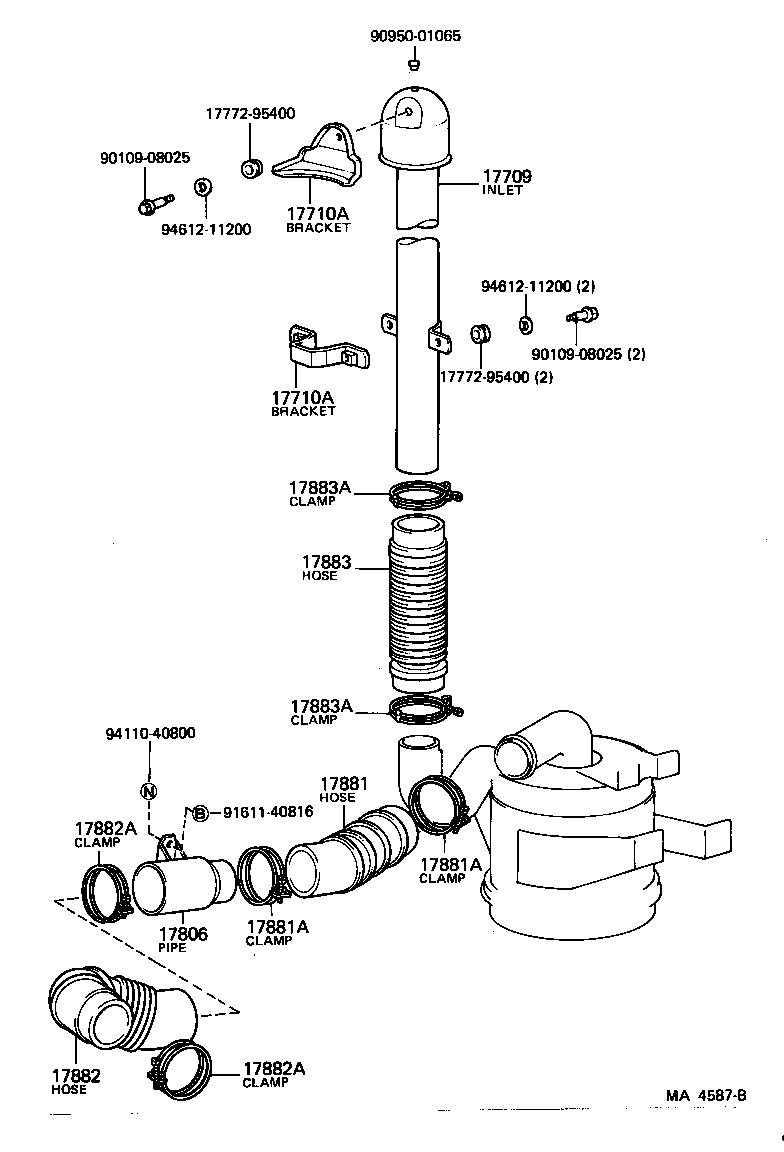

AIR CLEANER

ILLUST NO. 2 OF 2(8004-8308)2J..15T

TOYOACE | AIR CLEANER 17709 - INLET SUB-ASSY, AIR CLEANER 17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT 17710A - BRACKET SUB-ASSY, AIR CLEANER INLET DUCT ** Std Part ** Std Part 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17883 - HOSE, AIR CLEANER, NO.3 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
