TOYOTA COASTER RB13-KRKQ / BODY / PROTECTOR PIPE ROLL BAR HANDRAIL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PROTECTOR PIPE ROLL BAR HANDRAIL

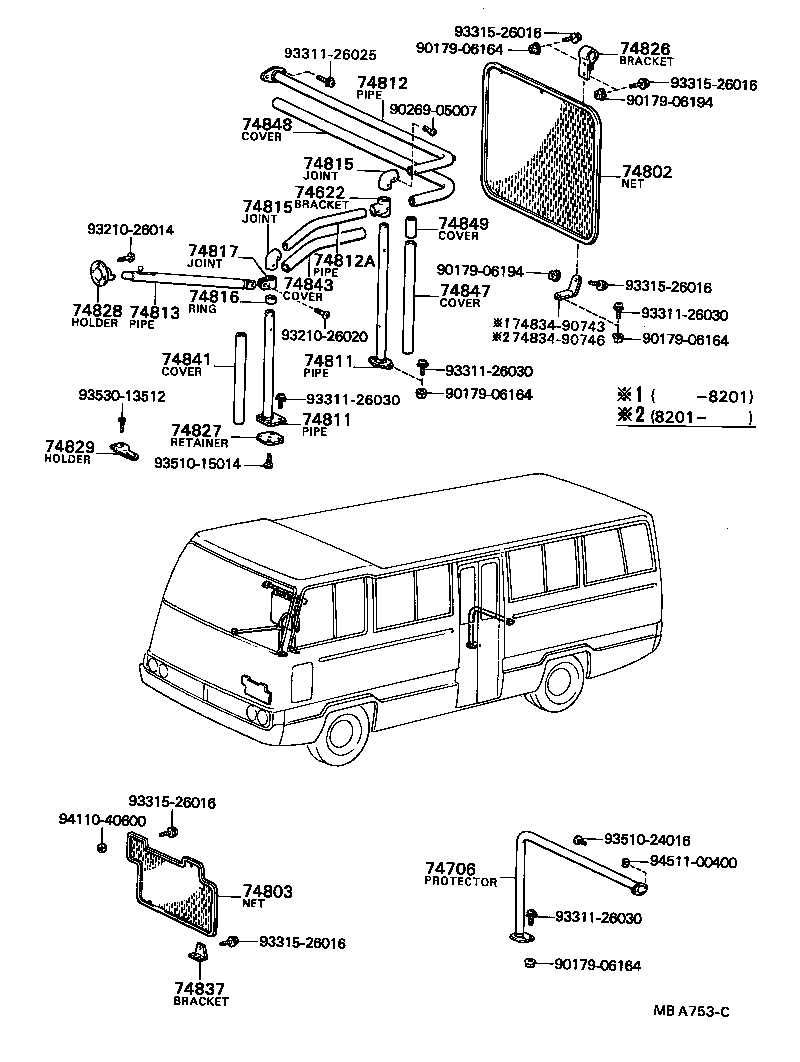

ILLUST NO. 2 OF 2(7911- )39C

COASTER | PROTECTOR PIPE ROLL BAR HANDRAIL 74622 - BRACKET, HAND GRIP 74706 - PROTECTOR PIPE ASSY 74802 - NET SUB-ASSY, PROTECTOR 74803 - NET SUB-ASSY, PROTECTOR INSTRUMENT 74811 - PIPE, PROTECTOR VERTICAL 74811 - PIPE, PROTECTOR VERTICAL 74812 - PIPE, PROTECTOR HORIZONTAL 74812A - PIPE, PROTECTOR HORIZONTAL, SIDE 74813 - PIPE, PROTECTOR DRIVER 74815 - JOINT, PROTECTOR PIPE T 74815 - JOINT, PROTECTOR PIPE T 74816 - RING, PIPE 74817 - JOINT, PROTECTOR PIPE UNIVERSAL 74826 - BRACKET, PROTECTOR NET, UPPER 74827 - RETAINER, PROTECTOR PIPE, LOWER 74828 - HOLDER, PROTECTOR PIPE INSTRUMENT 74829 - HOLDER, PROTECTOR PIPE, UPPER ** Std Part ** Std Part 74837 - BRACKET, PROTECTOR NET INSTRUMENT, UNDER 74841 - COVER, PROTECTOR PIPE VERTICAL, LOWER 74843 - COVER, PROTECTOR PIPE HORIZONTAL 74847 - COVER, PROTECTOR PIPE VERTICAL, NO.2 74848 - COVER, PROTECTOR PIPE HORIZONTAL, NO.2 74849 - COVER, PROTECTOR PIPE VERTICAL, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
