TOYOTA TOWN MASTERACE V WG TR11G-JR / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

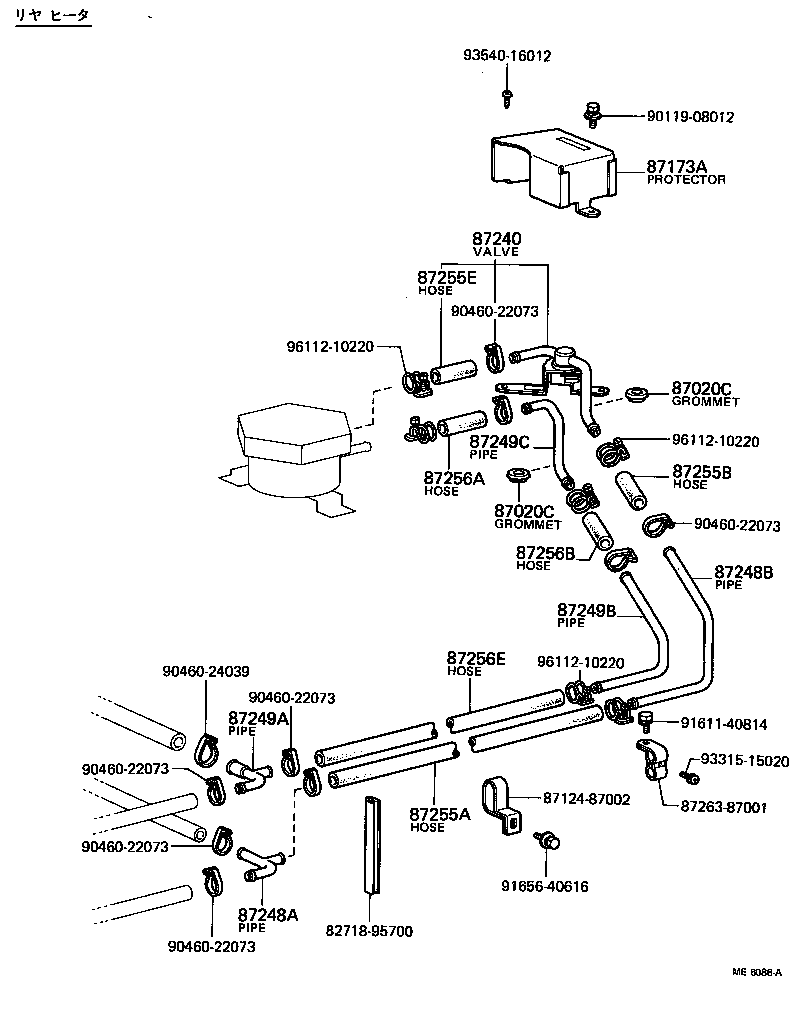

ILLUST NO. 2 OF 2(7701-7808)TR11

TOWN MASTERACE V WG | HEATING AIR CONDITIONING WATER PIPING ** Std Part 87020C - GROMMET, REAR HEATER WATER HOSE 87020C - GROMMET, REAR HEATER WATER HOSE ** Std Part 87173A - PROTECTOR, WATER VALVE 87240 - VALVE ASSY, HEATER WATER 87248A - PIPE, HEATER WATER INLET, A 87248B - PIPE, HEATER WATER INLET, B 87249A - PIPE, HEATER WATER OUTLET, A 87249B - PIPE, HEATER WATER OUTLET, B 87249C - PIPE, HEATER WATER OUTLET, C 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255B - HOSE, REAR HEATER WATER INLET, B 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256B - HOSE, REAR HEATER WATER OUTLET, B 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
